Miniature Circuit Breaker Lockout

Model NO.: M-K01~04
Product Description:
a) Made of engineering plastic strengthened nylon PA.
b) Applied for most existing types of European and Asian circuit breakers.
c) Suggested to be equipped together with a padlock for added safety.
d) Easily installed, no tools needed.
e) Can take padlocks with a shackle diameter up to 9/32"(7.5mm).

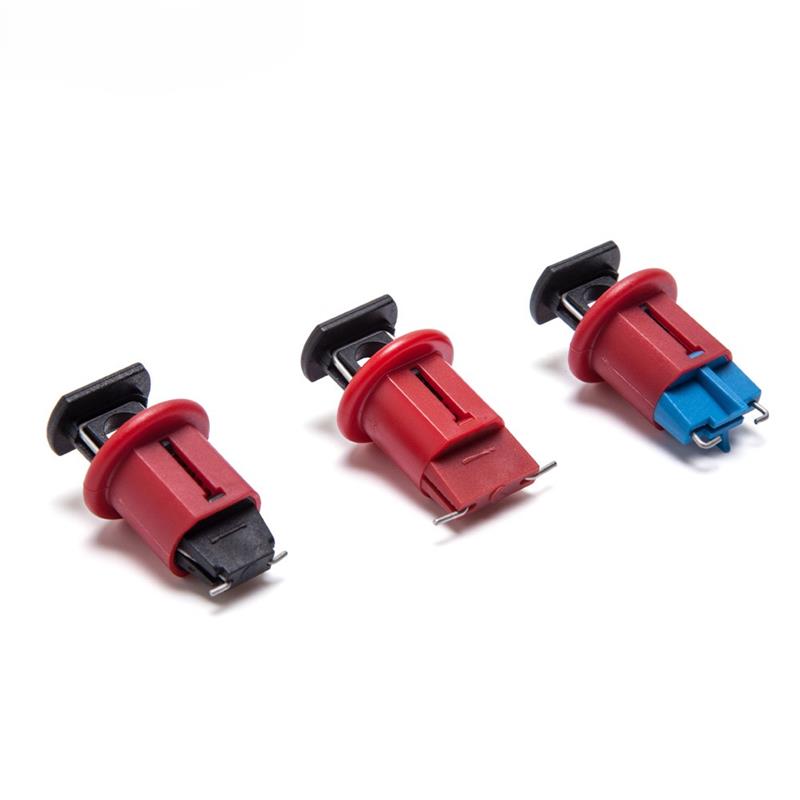

Range of 4 padlock circuit breaker lockouts designed to fit most modern single and multiple pole miniature circuit breaker. Manufactured from strong nylon, this range of miniature circuit breaker lockouts allows breakers to be locked off individually.

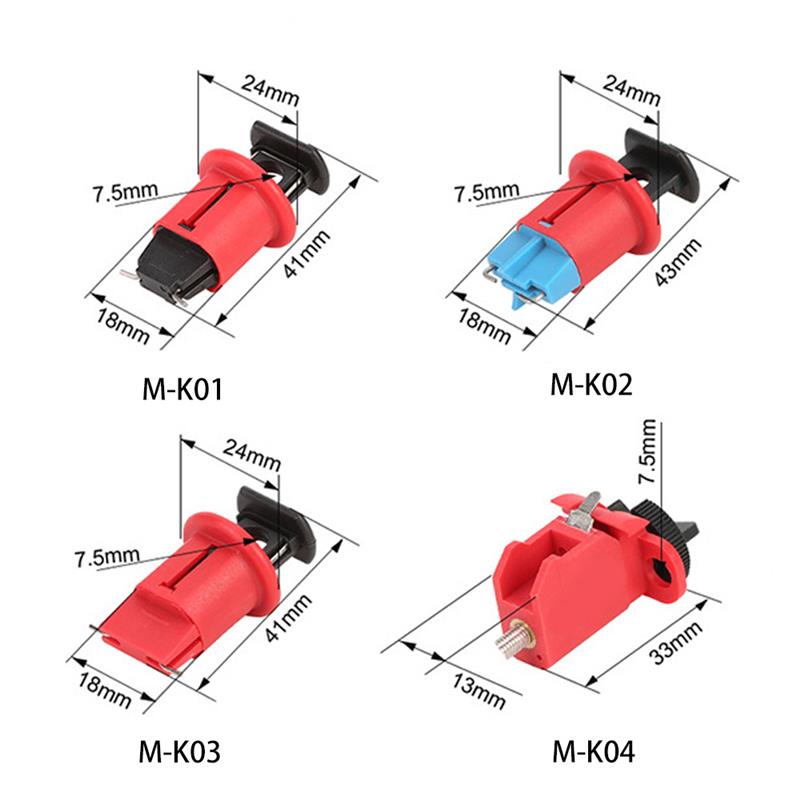

Model

Product

Material

Description

M-K01

Nylon

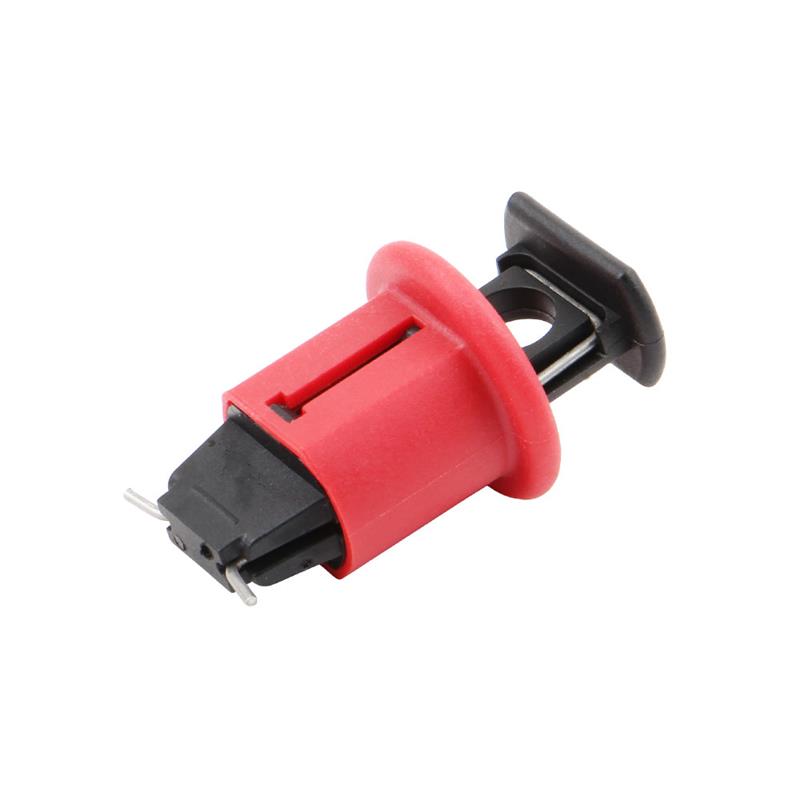

Pin out,suitable for hole distance between 10mm-12mm.

M-K02

Nylon

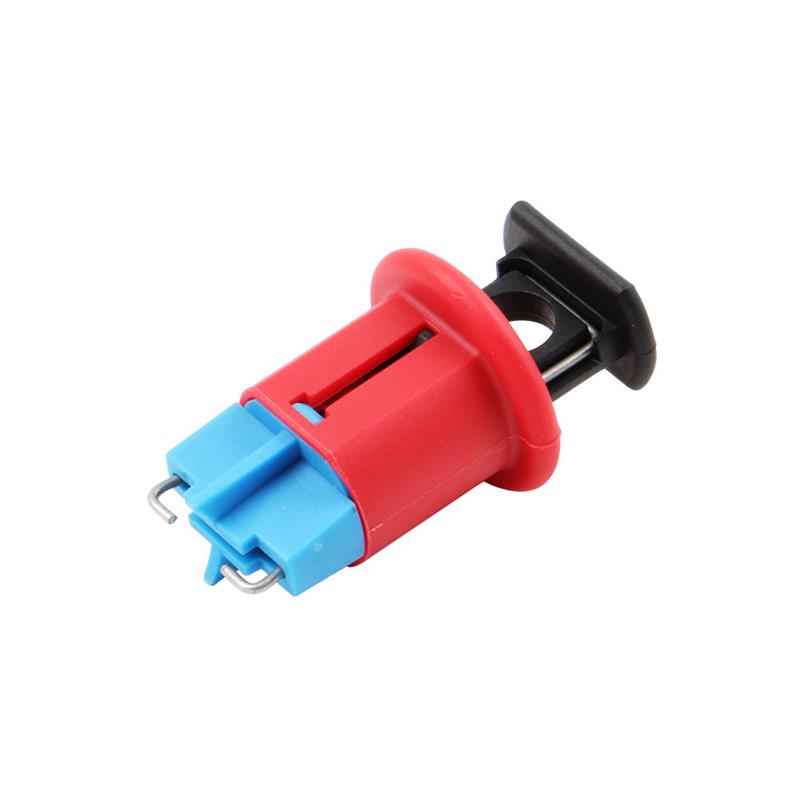

Pin out,suitable for hole distance ≤15mm.

M-K03

Nylon

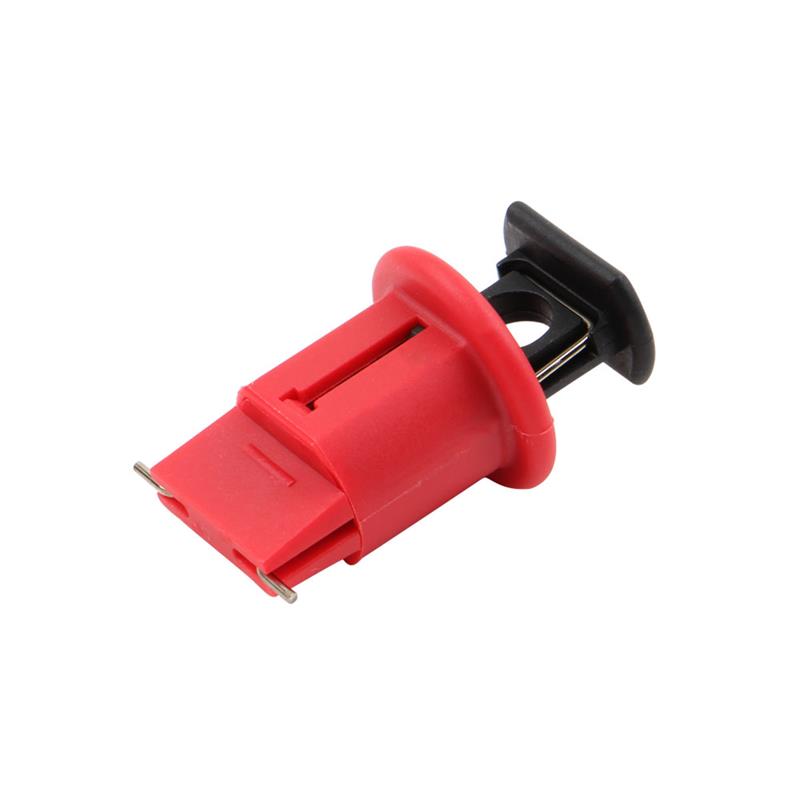

Pin out,suitable for hole distance between 18mm-20mm.

M-K04

Nylon

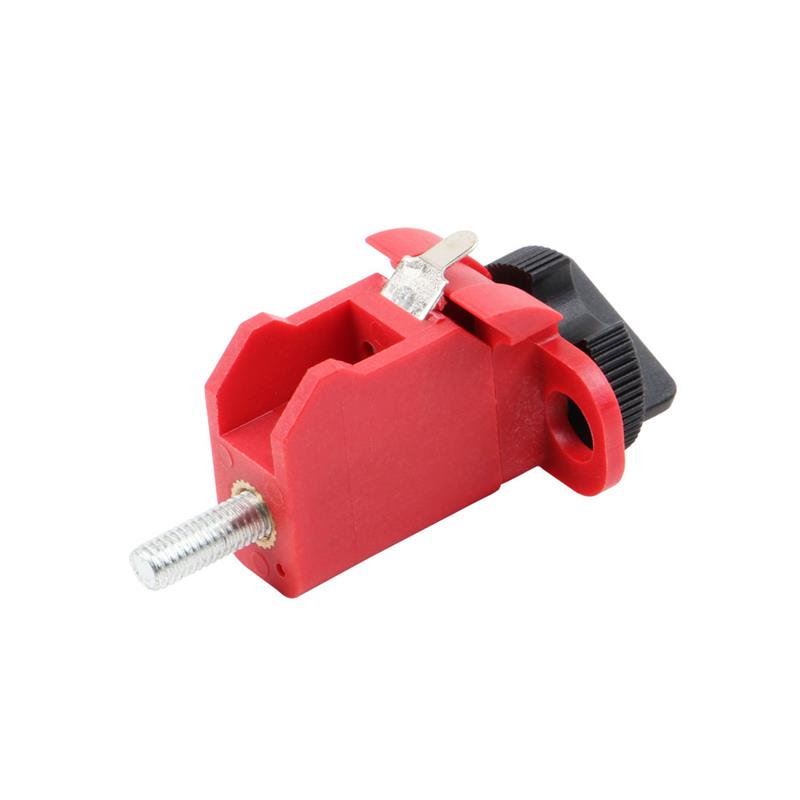

Tie-bar type,suitable for multi-pole circuit breakers.



Place of Origin

Zhejiang,China

Brand Name

QVAND

Model Number

M-K01~04

Material

PA Nylon

Color

Red

Service

OEM Support



Range of 4 padlock circuit breaker lockouts designed to fit most modern single and multiple pole miniature circuit breaker. Manufactured from strong nylon, this range of miniature circuit breaker lockouts allows breakers to be locked off individually.

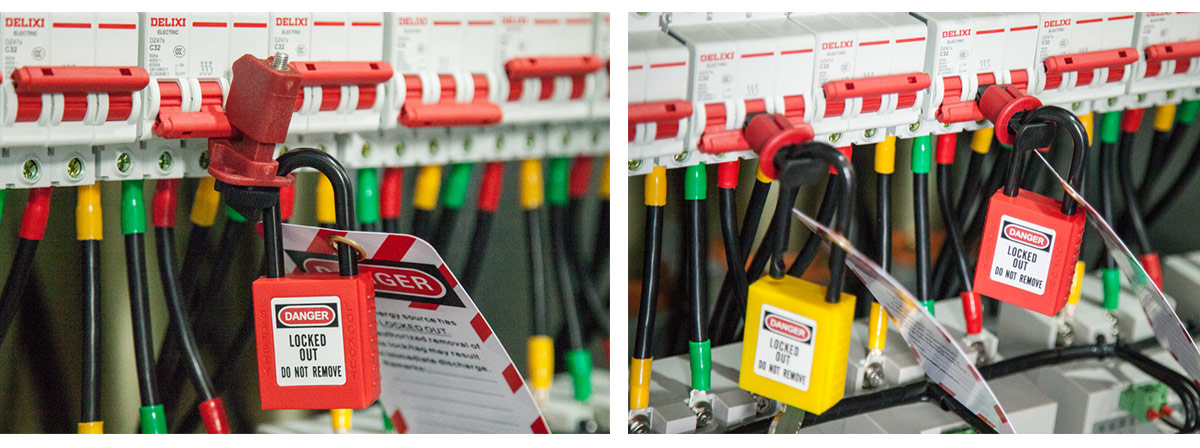

It is a safe and effective method to lock miniature circuit breaker, which is commonly used in European and Asian equipment. A safe and effective method to lock out miniature circuit breakers; universal for European and Asian equipment. No tools are needed for the installation of the miniature circuit breaker. You just need a button to finish installation easily.
Thumb wheel is used for pull rod type locks for quick completion of installation; available as single-pole and multiple-pole circuit breakers for choice. It is suggest to use the product together with Best safe's safety padlocks or other padlocks; can use padlocks with a shackle diameter of 7mm.
1. The installation of miniature circuit breaker lockout does not need any tools. Just need a button, you can easily complete the installation.
2. Tie bar type lock adopts thumb wheel, which can completed the installation quickly.
3. Single pole and multi pole circuit breaker lockouts are available.
4. It is easy recommended to use it with safety padlock.
