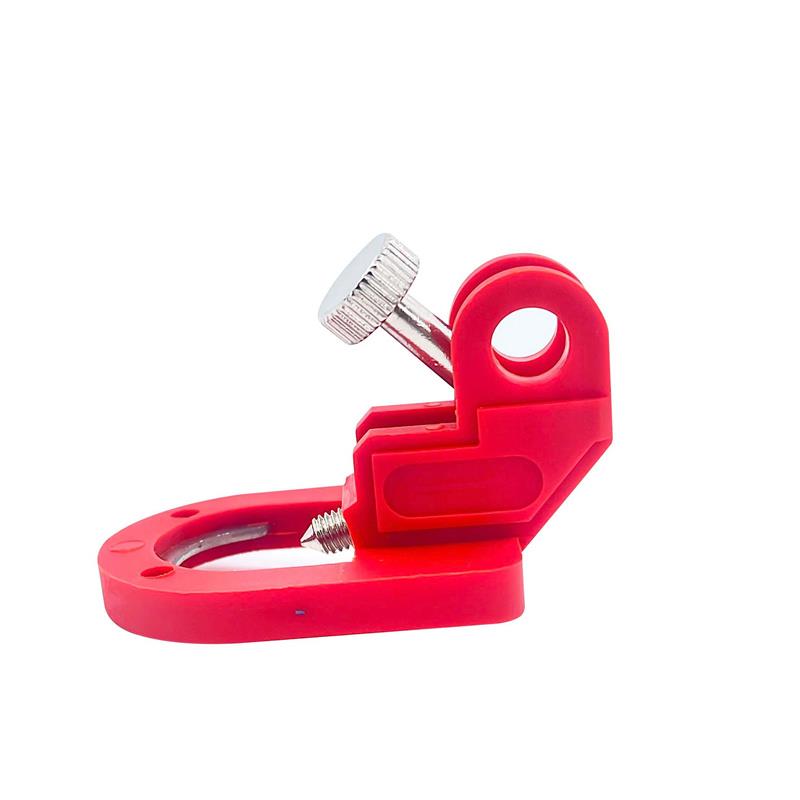

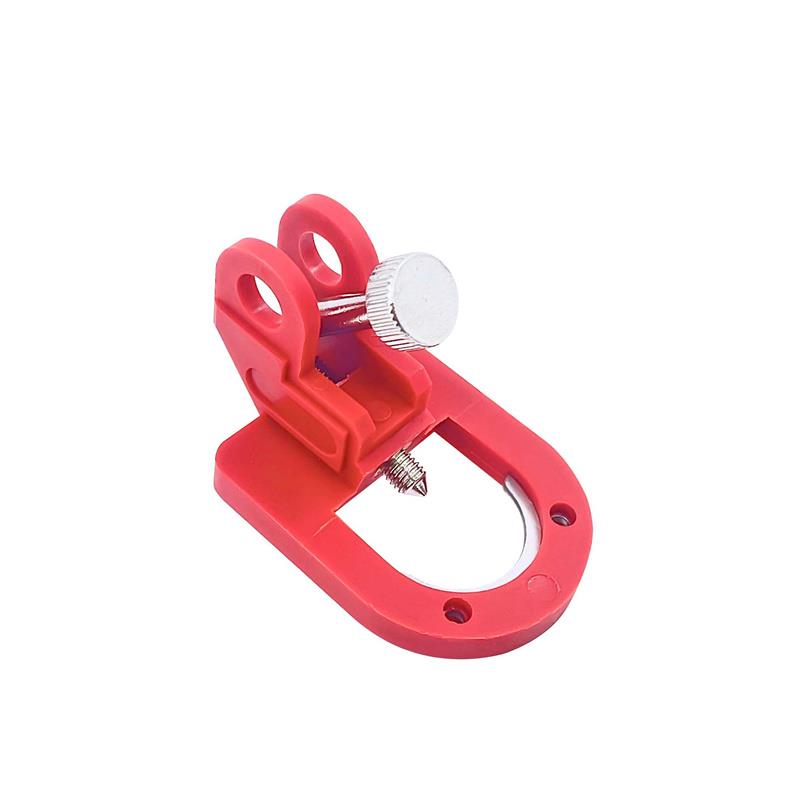

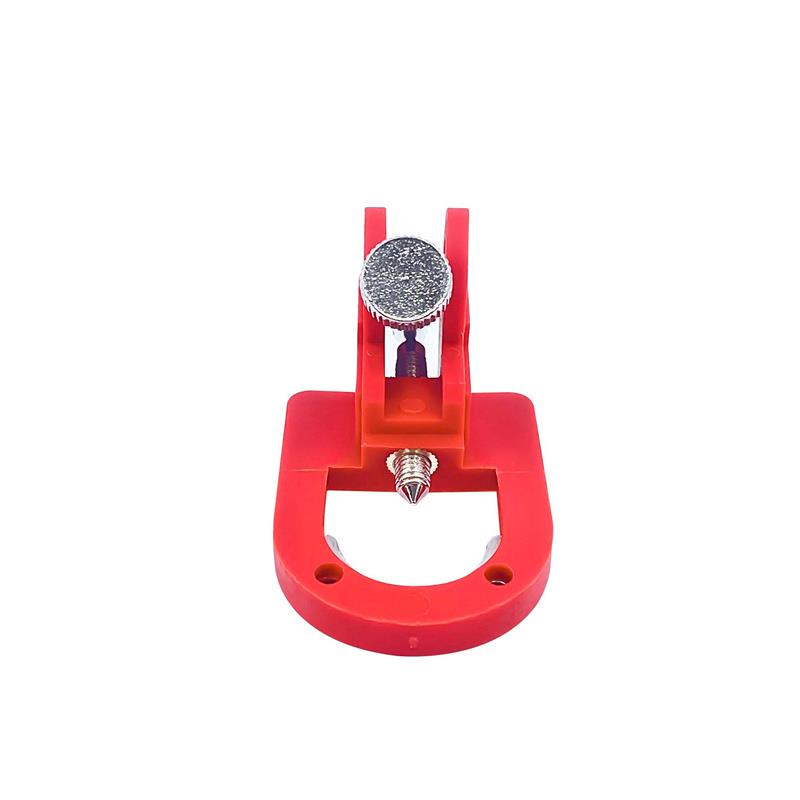

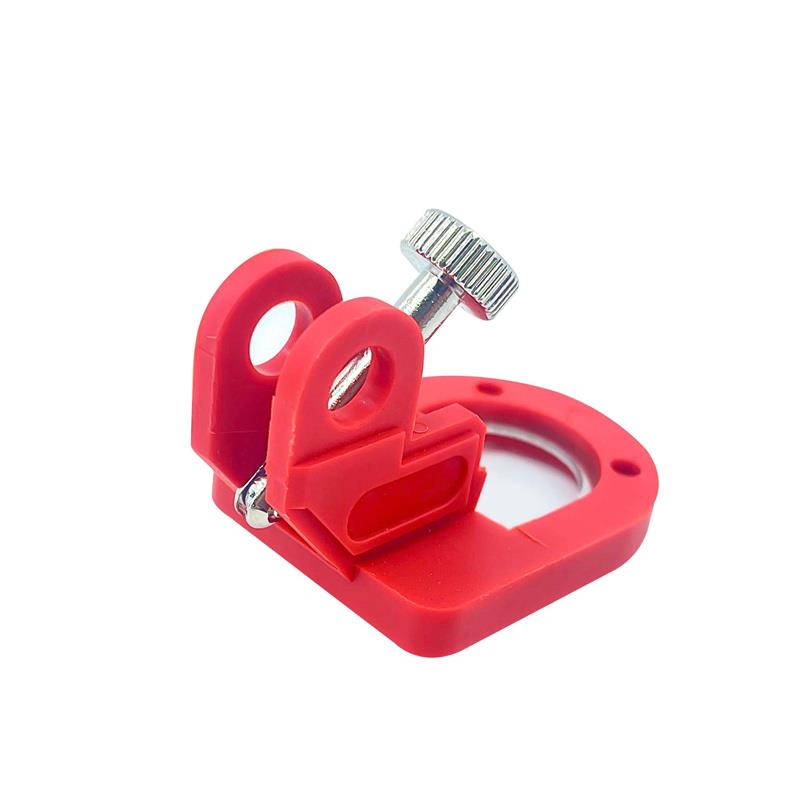

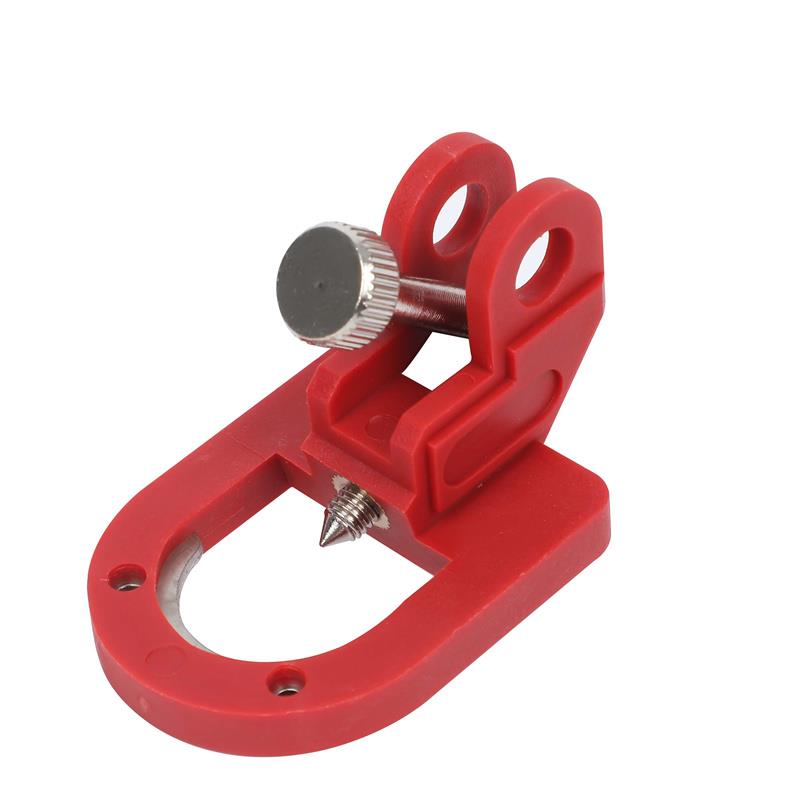

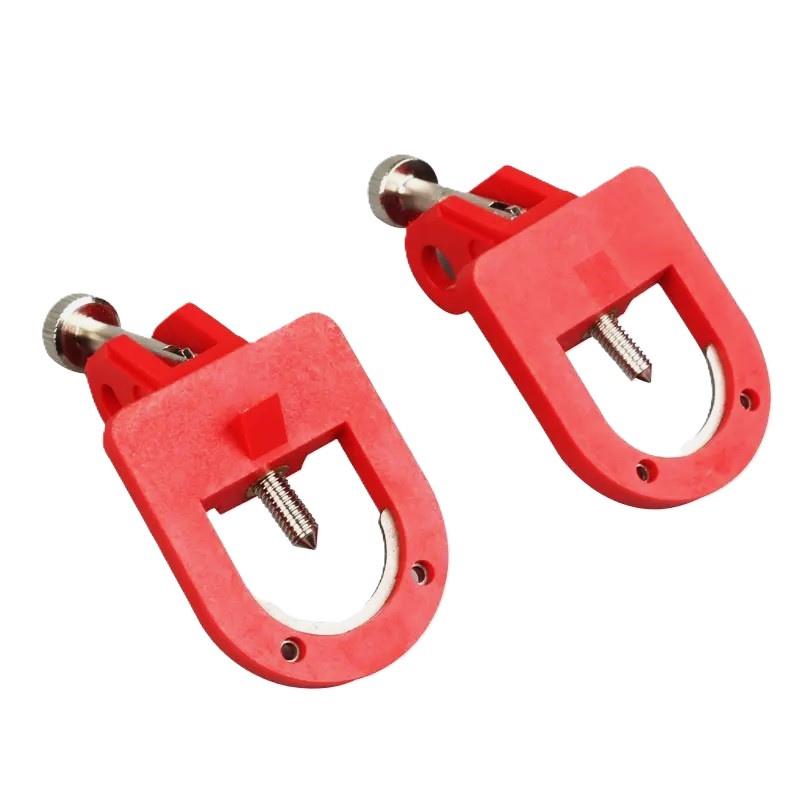

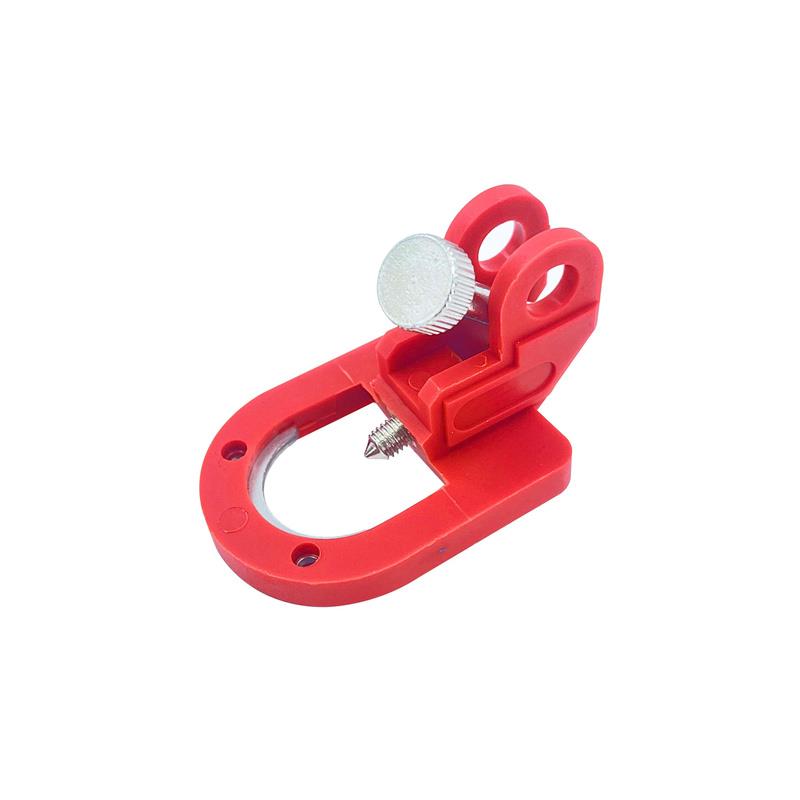

Product Description
a) Clamp-on breaker lockouts are versatile and easy to install using a small screwdriver;
b) Made from strengthened nylon PA and chrome plated brass screw;
c) Thumbscrew design needs no other tools to tighten easily and conveniently;
d) Suitable for small size circuit breaker(handle thickness less than 7.6mm);
e) Accepts padlock with shackle Dia. up to 10mm.
|
Model |
Product |
Material |
Description |
|
M-K14 |
|
PA |
Suitable for handle thickness ＜26mm |
|
M-K15 |
|
PA |
Suitable for handle thickness ＜7mm |
|
M-K16 |
|
PA |
Suitable for handle which have holes on both sides. |
|
M-K19 |
|
ABS and PA |
The rod length 190mm,Suitable for irregular shapes switches. |
|
M-K20 |
|
PA |
Suitable for handle thickness from 7-15mm |
|
M-K21 |
|
Nylon |
Suitable for handle thickness ＜9mm. |
|
M-K23 |
|
Nylon PA |
The 4 holes can be locked to accept the safety padlock with a shackle diameter ≤8.6mm |
|
M-K24 |
|
Nylon |
Suitable for various large molded case circuit breakers (handle thickness ≤20mm |
|
M-K25 |
|
Nylon |
Suitable for handle thickness ≤7mm. |
|
M-K29 |
|
PA |
Pin out,suitable for hole distance 10-14mm. |
|
M-K30 |
|
PA |
Suitable for handle thickness ≤8mm. |

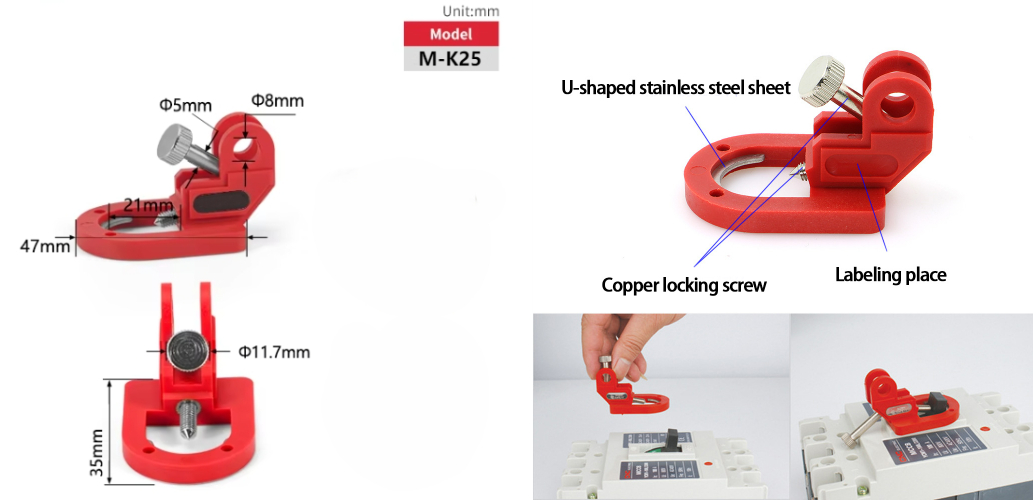

Details
1. Material: the lock body and the button part are made of engineering plastic reinforced nylon PA, corrosion resistance, impact resistance and temperature difference resistance. Copper chrome plated screw suitable for all operating conditions.
2. Easy installation: equipped with fastening screws, can be manuallylocked without the help of tools.The screw diameter ofthe bending screw is larger than before, which makesit easy to screw.
3. Logo customization: trademark is the image of acompany, the use of the trademark on the productcan improve the company'spublic awareness and enterprise identification. Thisproduct can be customized stainless steel trademark plate.
4. Wide range of uses: through professional design,the product is suitable for all kinds of large and medium molded case circuit breaker.

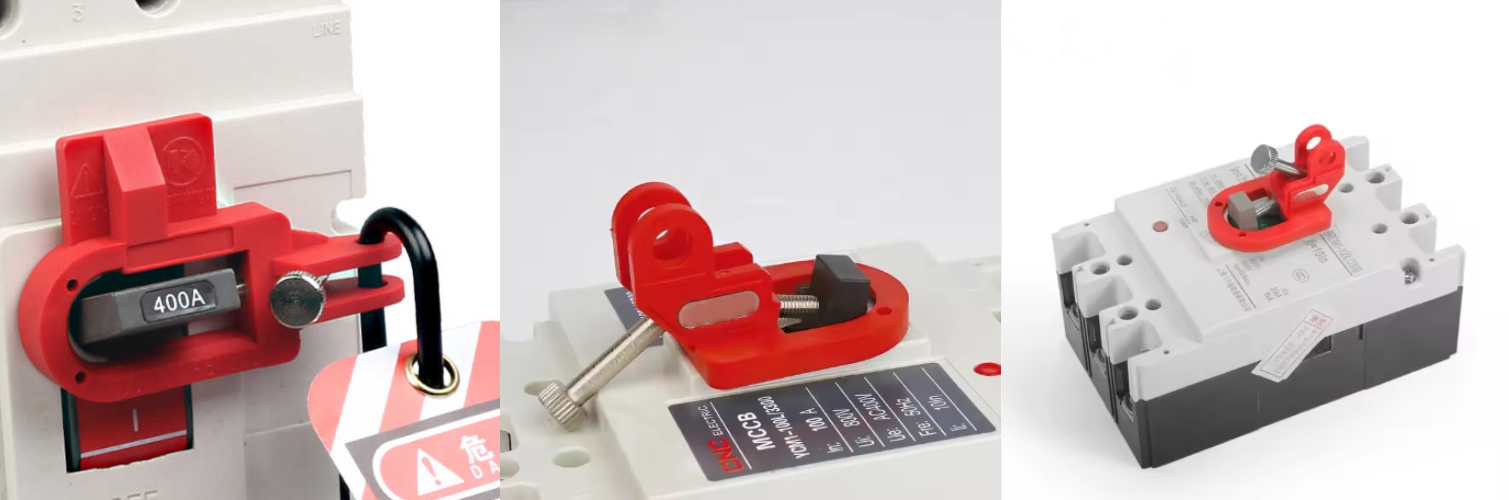

5. Installation and collocation: circuit breaker lockout is recommend to be collocated with small insulated safety padlock and safety tagout to achieve energy isolation, equipment locking and prevent misoperation.
|
Place of Origin |
Zhejiang,China |
|
Brand Name |
QVAND |
|
Model Number |
M-K25 |
|
Material |
Nylon,cooper Screw |
|
Color |
Red |
|
Service |
OEM Support |
