Product Description

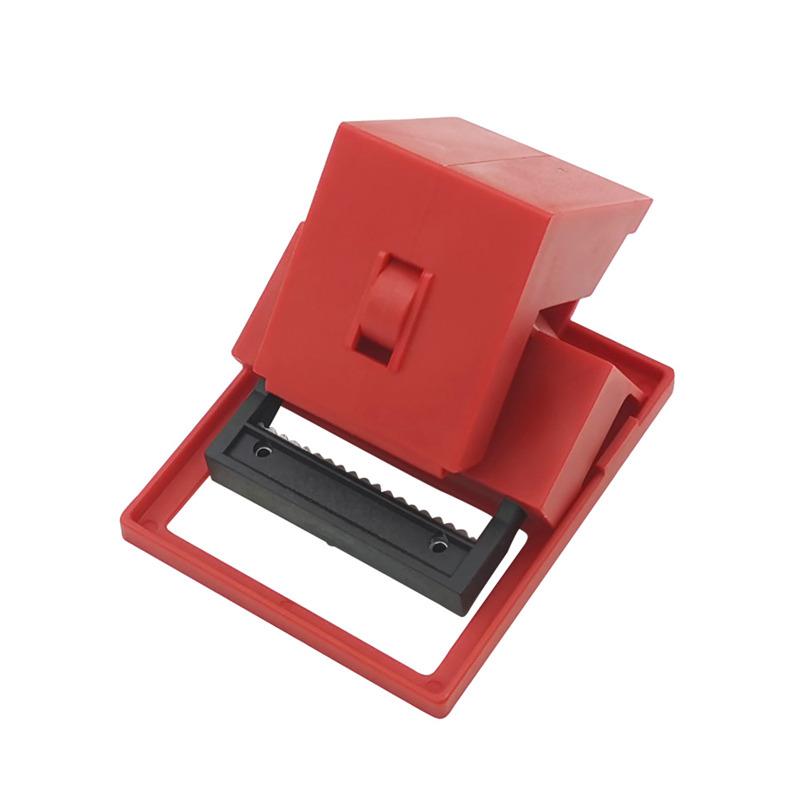

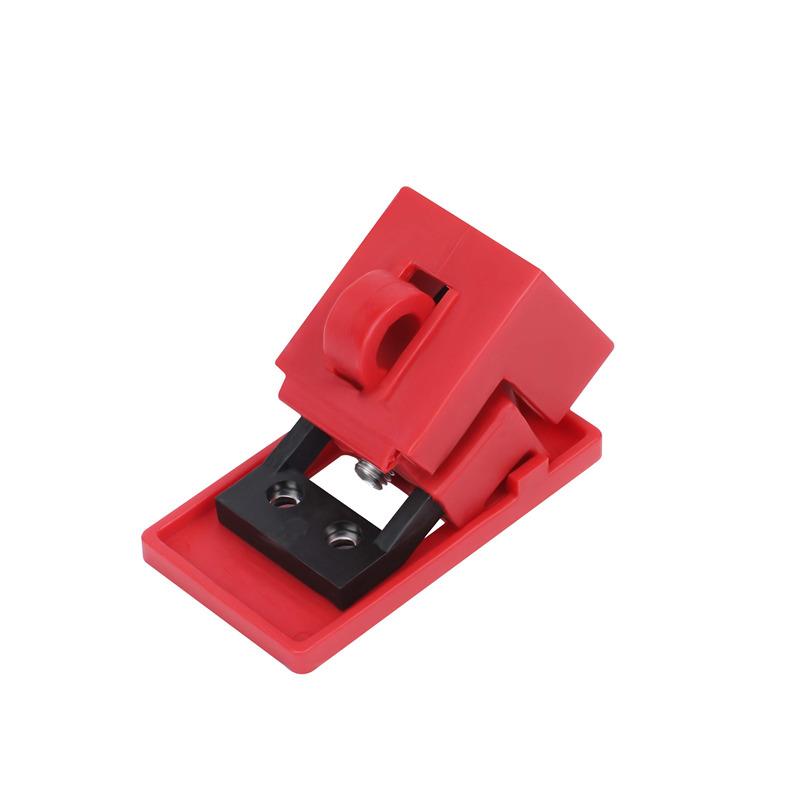

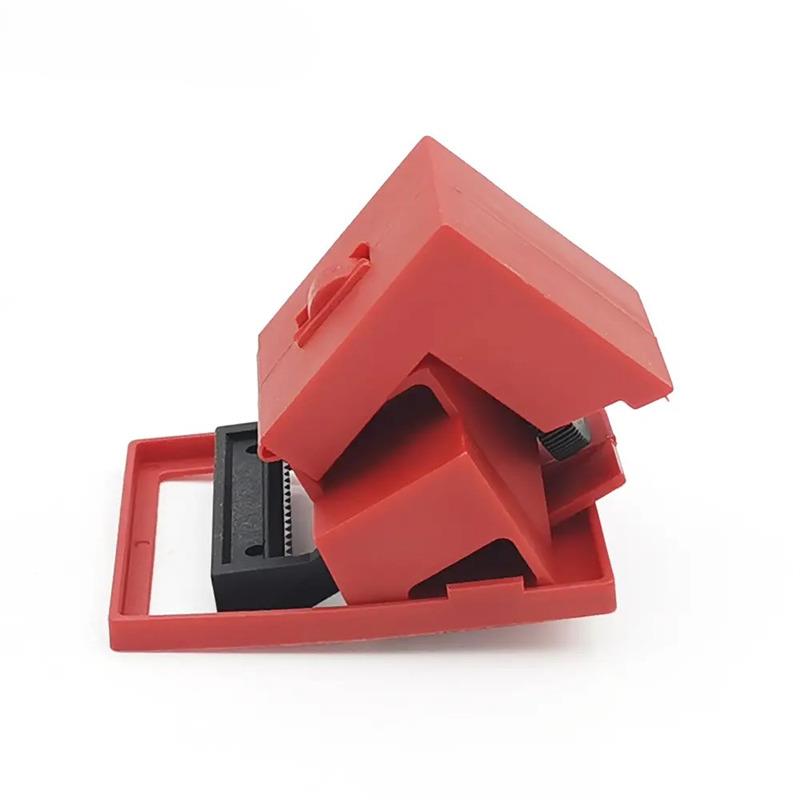

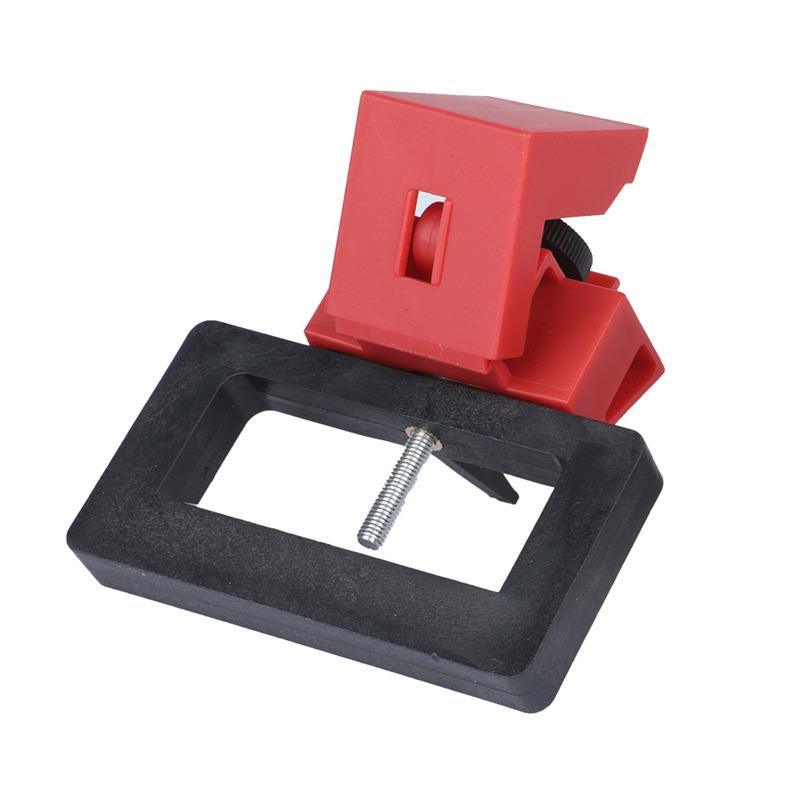

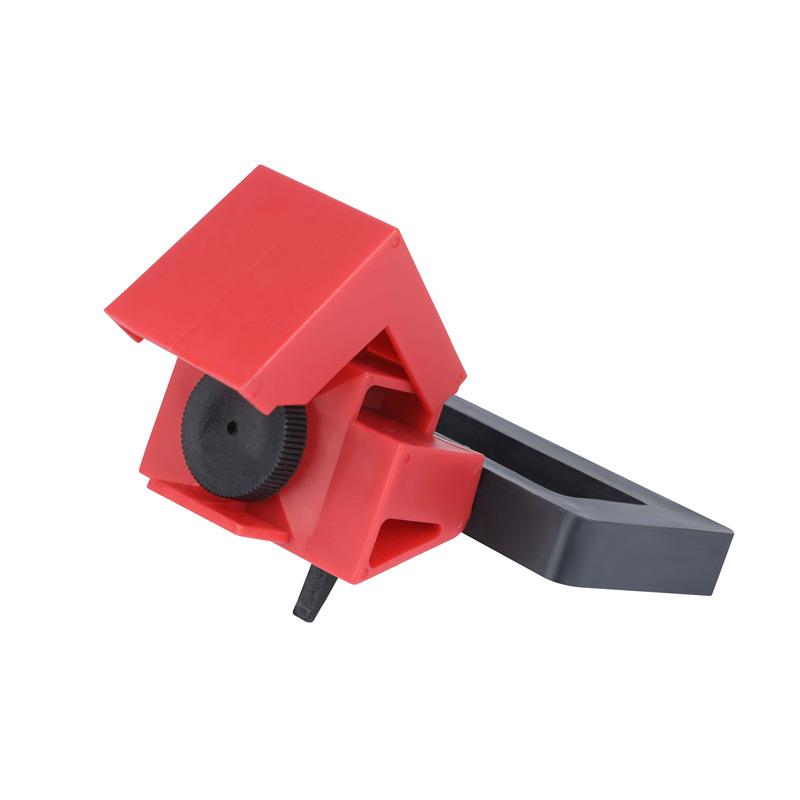

Model NO.: M-K11/12/13
a)Made of rugged polypropylene PP and nylon PA.with abrasion resistance, corrosion resistance, good insulation and temperature difference resistance(-50℃～ 177℃), The product is durable and not easy to deform.It is suitable for industrial power isolation area.
b) Suitable for varies of middle built-in tripping plastic case circuit breakers.
c)Recommended using combination with a padlock for added safety.
d)No need any tools for installation, very convenient.
|

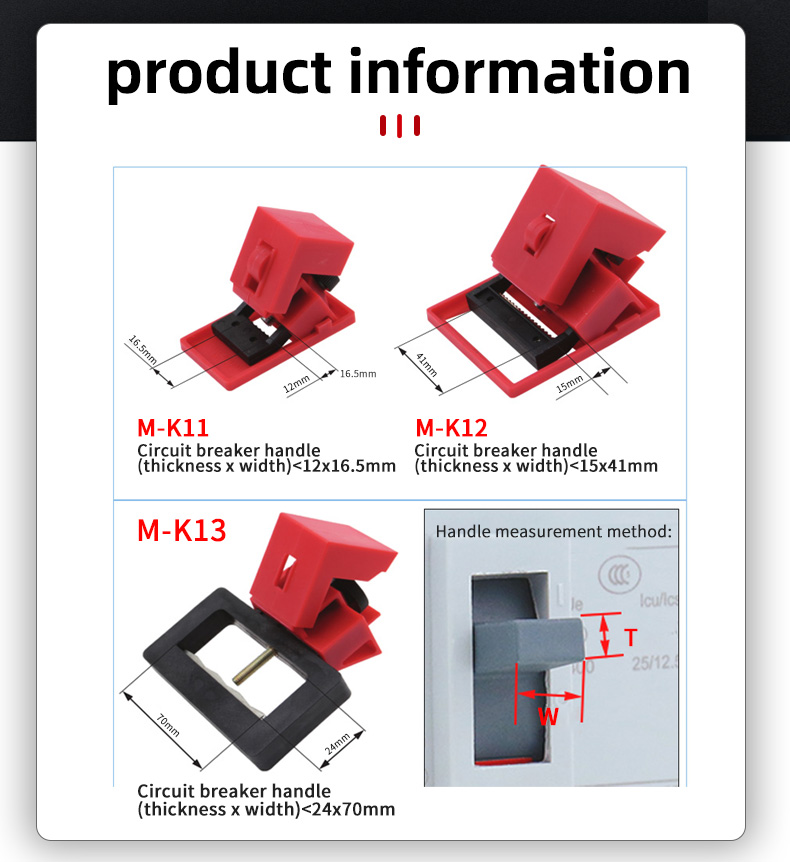

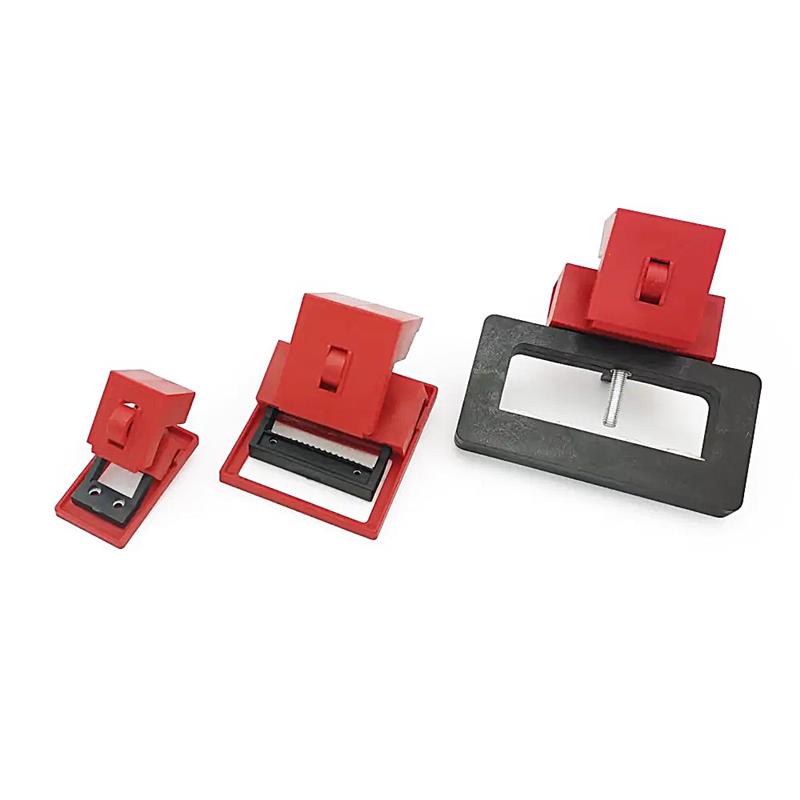

Model |
Product |
Material |
Description |
|
M-K11 |
|
PP and PA |
Suitable for handle width ≤18mm |
|
M-K12 |
|
PP and PA |
Suitable for handle width ≤42mm |
|
M-K13 |
|
PP and PA |
Suitable for handle width ≤72mm |
1. Structure design
The lock body has been upgraded and improved, and the lock cover is fixed with split type, which is not easy to break, opening and closing more smoothly and convenient to lock.
Cutter teeth bite design, less force on abnormal screw, but more tightly combined, not easy to loosen. Clamp type circuit breaker lockout is equipped with removable splint to enlarge the range of applicable circuit breaker.
2. Easy to install
The breaker lockout is installed without tools. Fix the lockout on the switch handle with special-shaped screws, and then fasten the stopper cover to the special-shaped screws to lock it so as not to loosen
3. Wide range of use

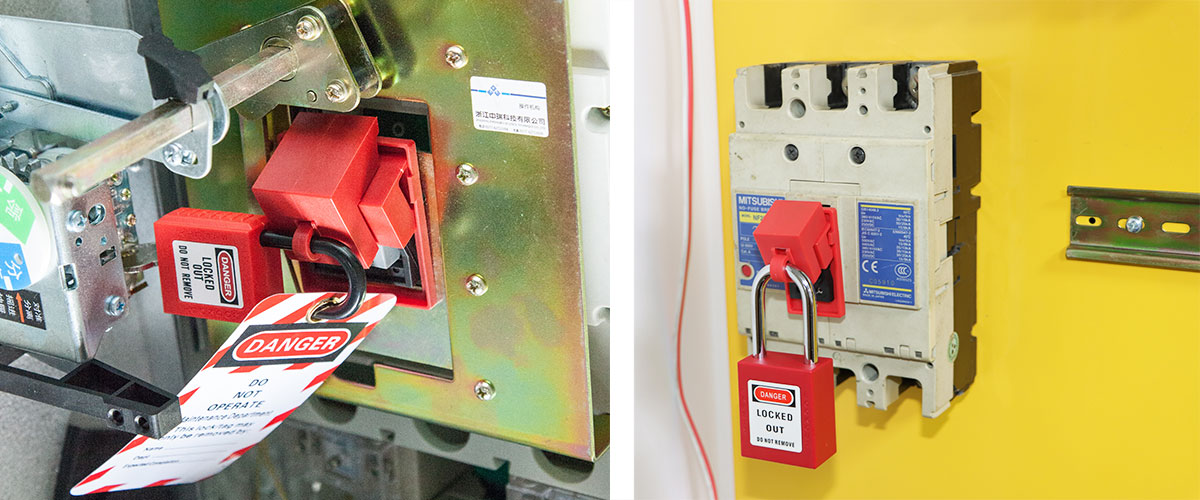

Through professional design, the product is suitable for a variety of medium sized built-in trip molded case circuit breakers to protect employees from electrical accidents during equipment maintenance.
