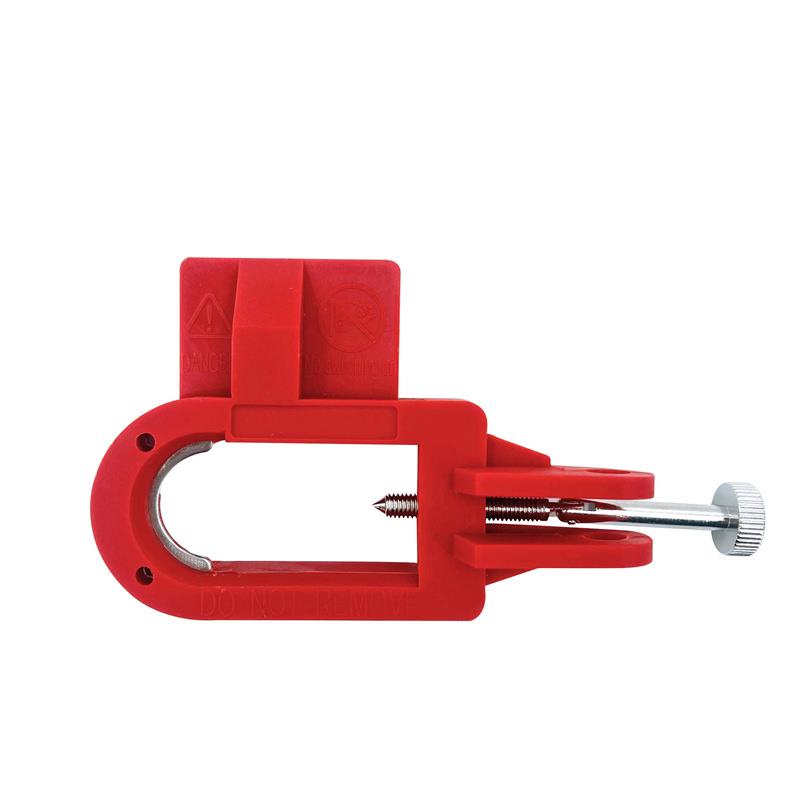

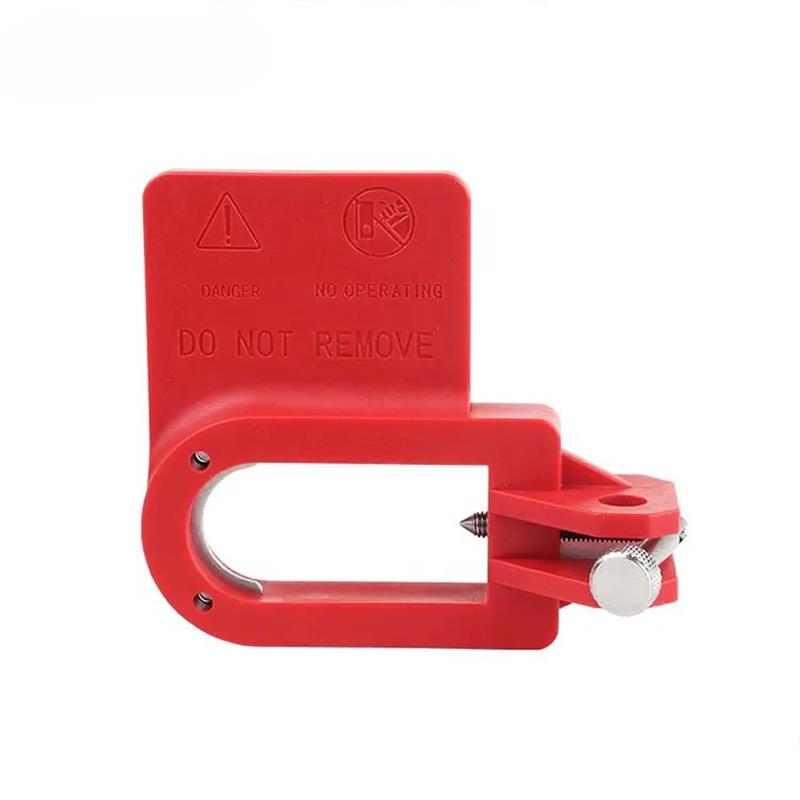

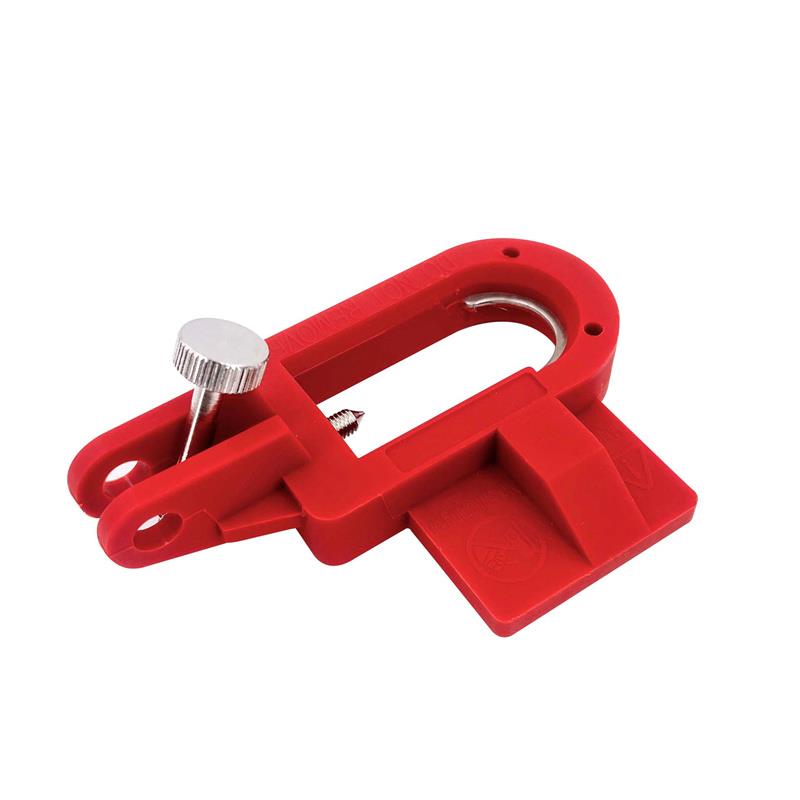

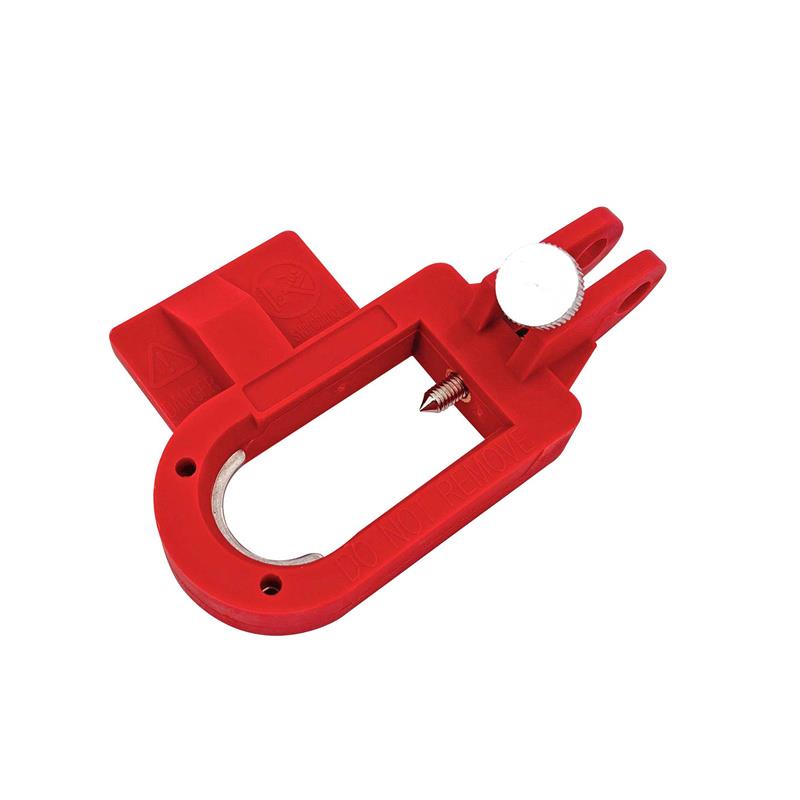

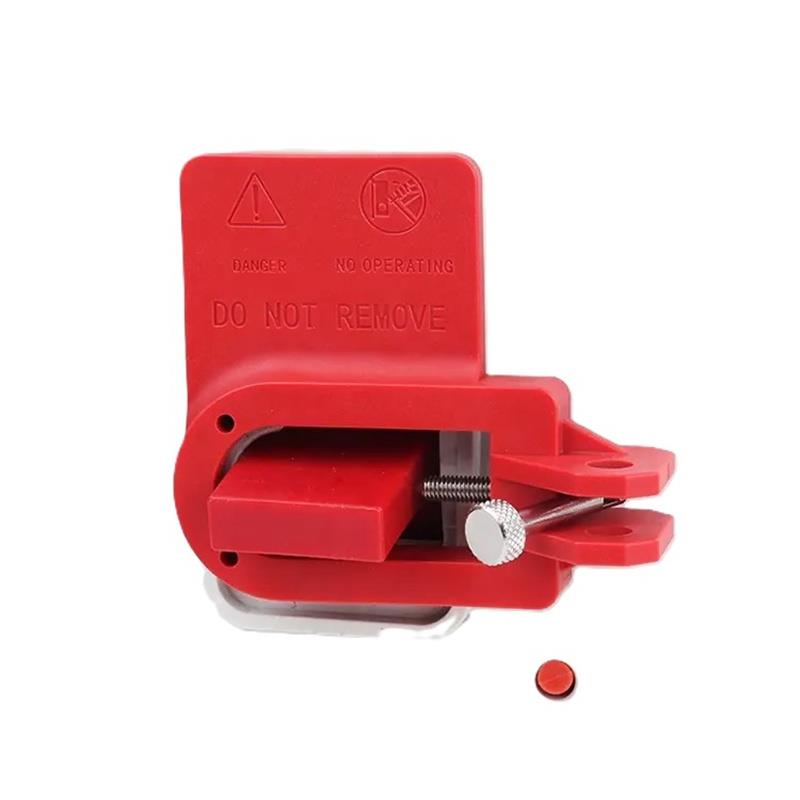

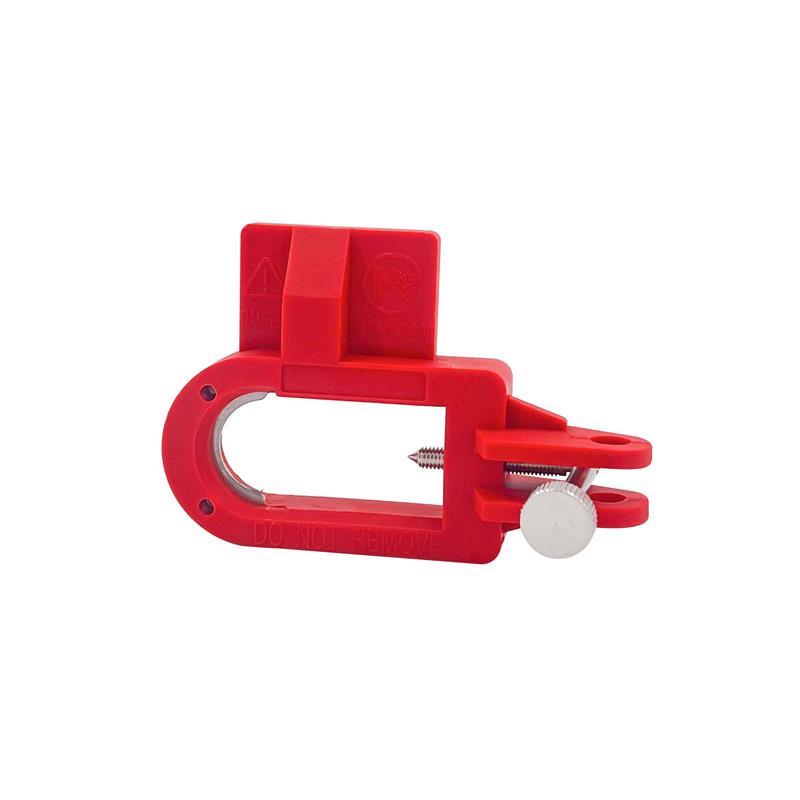

Circuit Breaker Lockout

Model NO.: M-K24
Product Description:
Comes with locking screws,which can be easily locked without tools.Suitable for various large molded case circuit breakers(handle thickness ≤20mm),and special button-type.
a)The lock body is made of reinforced Nylon PA material with corrosion resistance,good insulation and temperature difference(-50℃~+177℃)
b)It comes with fastening screws,which can be manually locked without tools,which is more convenient to use.The diameter of the screw opening of the bending screw is larger than before,making it more comfortable and labor-saving to screw.
c)The trademark on the lock body reflects the use of stainless steel sheets.You can customize your logo or management code by laser,mold opening,etc.The flexible customization method can more easily implement the process of locking and tagging.

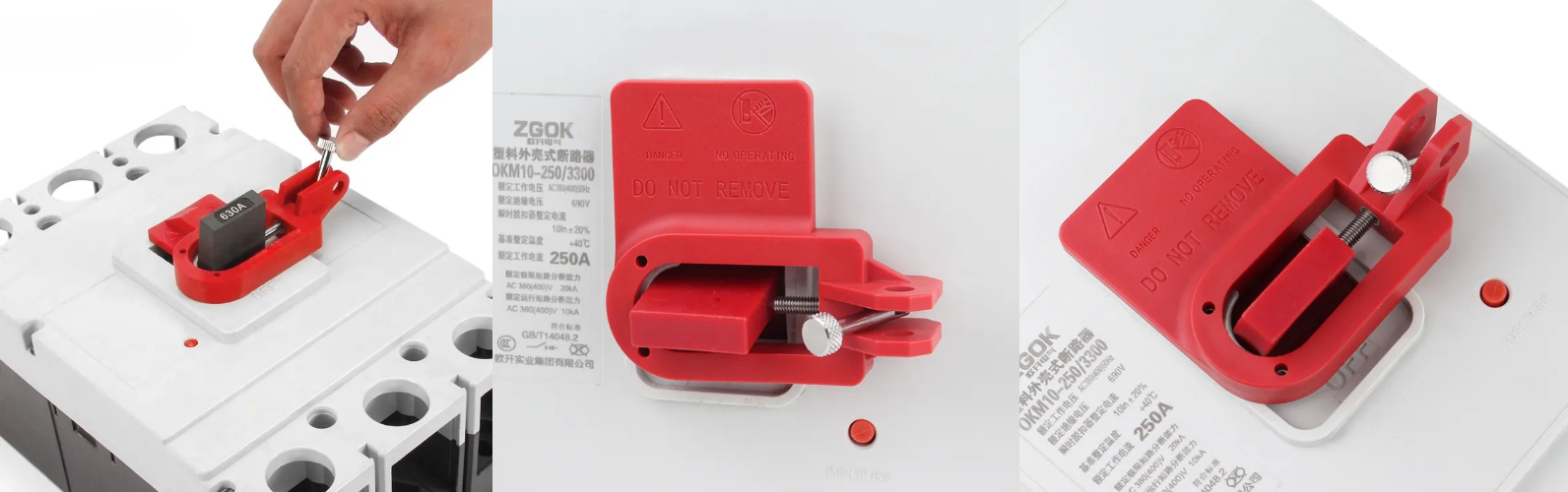

d)Through professional design,the product is suitable for various extra-large molded case circuit breakers,as well as special push-button circuit breakers to protect employees from electrical accidents during equipment maintenance.

Model

Product

Material

Description

M-K14

PA

Suitable for handle thickness <26mm

M-K15

PA

Suitable for handle thickness <7mm

M-K16

PA

Suitable for handle which have holes on both sides.

M-K19

ABS and PA

The rod length 190mm,Suitable for irregular shapes switches.

M-K20

PA

Suitable for handle thickness from 7-15mm

M-K21

Nylon

Suitable for handle thickness <9mm.

M-K23

Nylon PA

The 4 holes can be locked to accept the safety padlock with a shackle diameter ≤8.6mm

M-K24

Nylon

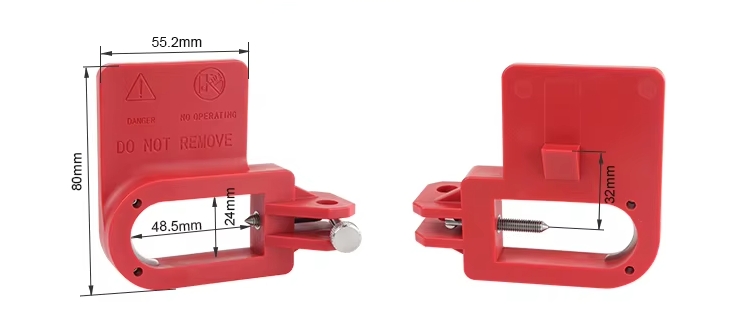

Suitable for various large molded case circuit breakers (handle thickness ≤20mm
And special bottom type.

M-K25

Nylon

Suitable for handle thickness ≤7mm.

M-K29

PA

Pin out,suitable for hole distance 10-14mm.

M-K30

PA

Suitable for handle thickness ≤8mm.



Place of Origin

Zhejiang,China

Brand Name

QVAND

Model Number

M-K24

Material

Nylon PA,Copper screws

Color

Red

Service

OEM Support
