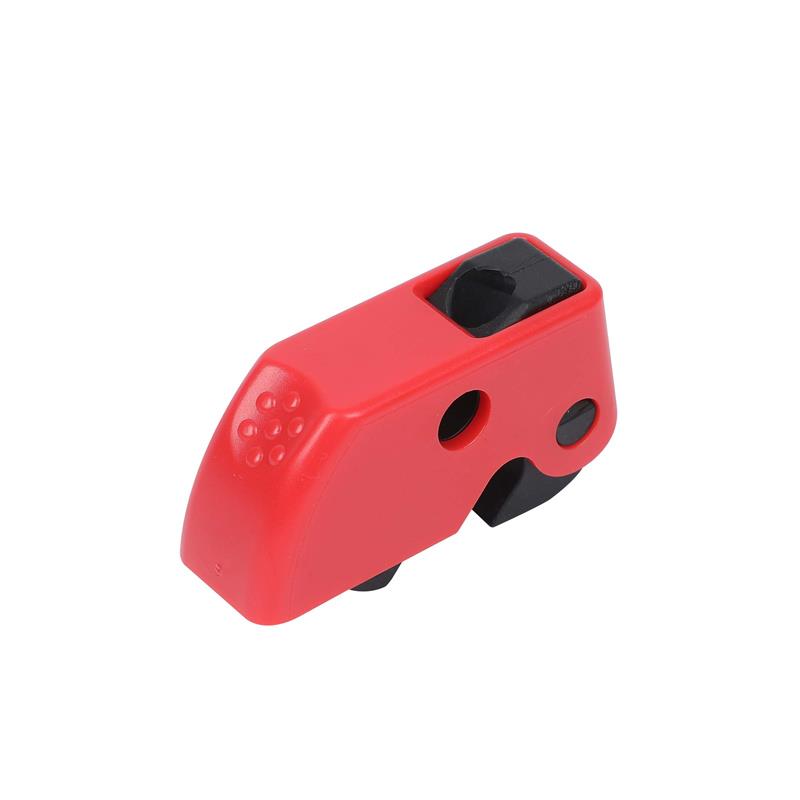

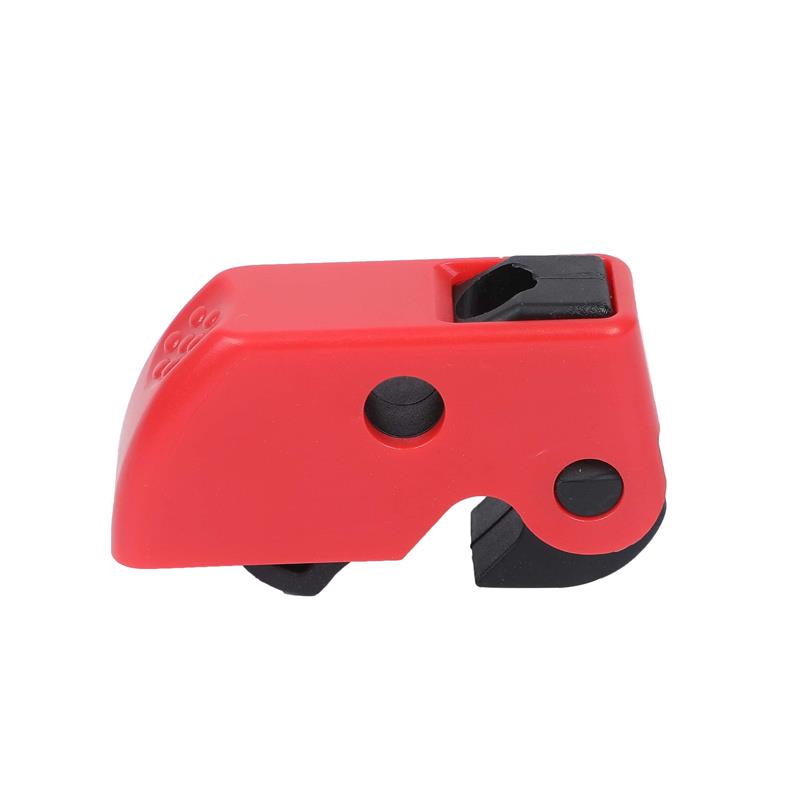

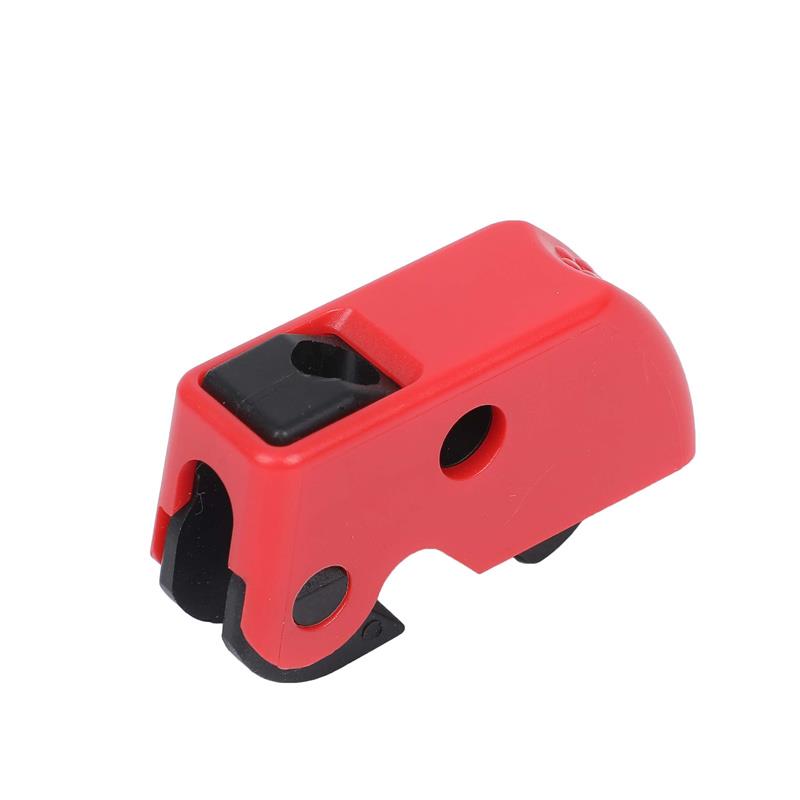

Circuit Breaker Lockout

Model NO.: M-K30
Product Description:
a) Made from durable ABS, temperature resistance -20℃ to +100℃.
b) Miniature circuit breakers with a lock hole distance of 13 mm.

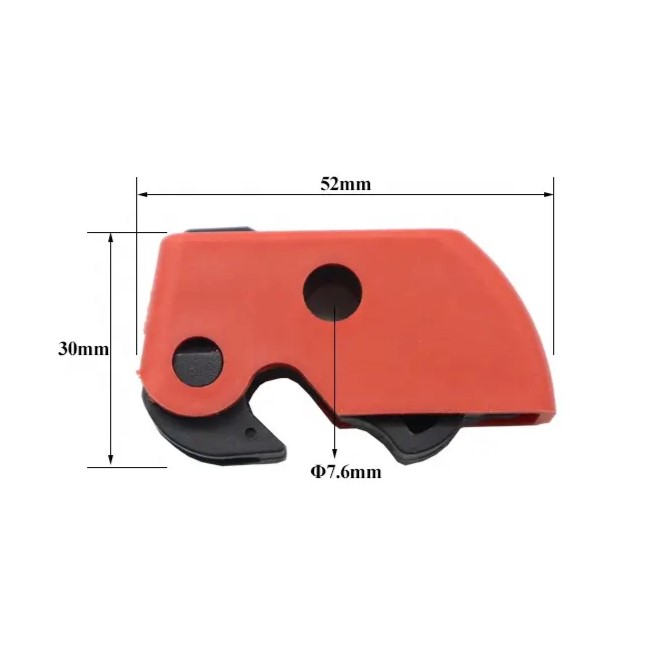

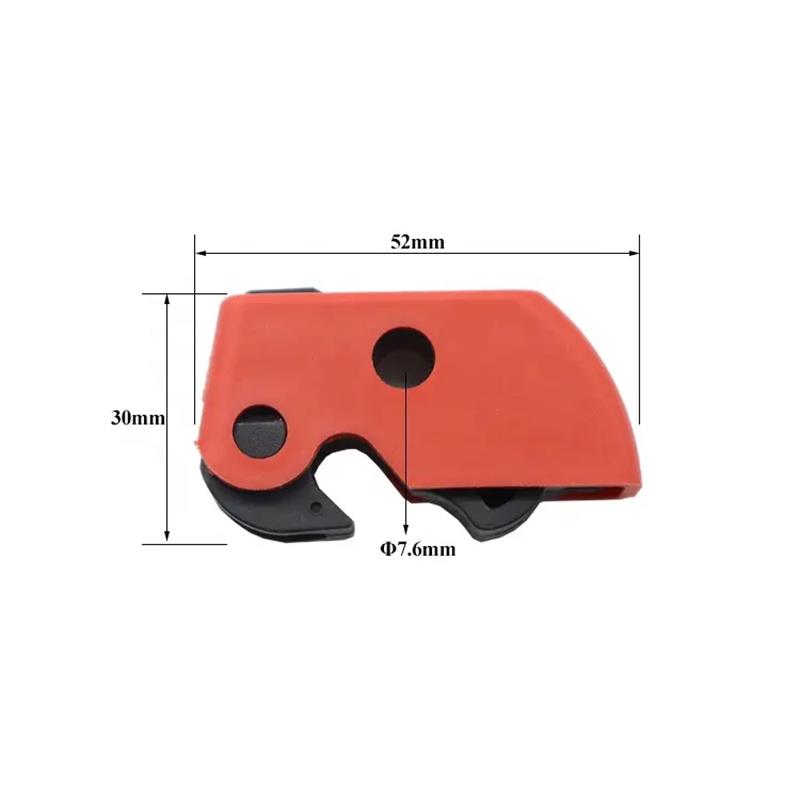

c) Accepts lock shackles up to 9/32″ (7.5mm) in diameter.
1. Can lock out one or multiple connections mini circuit breaker lockout apply to most switches one the market.
2. No need to consider if the circuit breaker has a pinhole,much less the space between two pinholes.
3. Can lock out the off position of switch, The manual adjustment for locking is convenient and efficient.
Compact size allows for locking out adjacent breakers, suitable for locking out multi-pole breakers and works with most tie-bar toggles. Comes with a locking screw, you can easily lock without using other locking tools, slotting allows screwdriver adjustment. Can take a padlock with shackle diameter up to 9.3mm.

Model

Product

Material

Description

M-K14

PA

Suitable for handle thickness <26mm

M-K15

PA

Suitable for handle thickness <7mm

M-K16

PA

Suitable for handle which have holes on both sides.

M-K19

ABS and PA

The rod length 190mm,Suitable for irregular shapes switches.

M-K20

PA

Suitable for handle thickness from 7-15mm

M-K21

Nylon

Suitable for handle thickness <9mm.

M-K23

Nylon PA

The 4 holes can be locked to accept the safety padlock with a shackle diameter ≤8.6mm

M-K24

Nylon

Suitable for various large molded case circuit breakers (handle thickness ≤20mm
And special bottom type.

M-K25

Nylon

Suitable for handle thickness ≤7mm.

M-K29

PA

Pin out,suitable for hole distance 10-14mm.

M-K30

PA

Suitable for handle thickness ≤8mm.



Place of Origin

Zhejiang,China

Brand Name

QVAND

Model Number

M-K30

Material

Nylon PA

Color

Red

Service

OEM Support

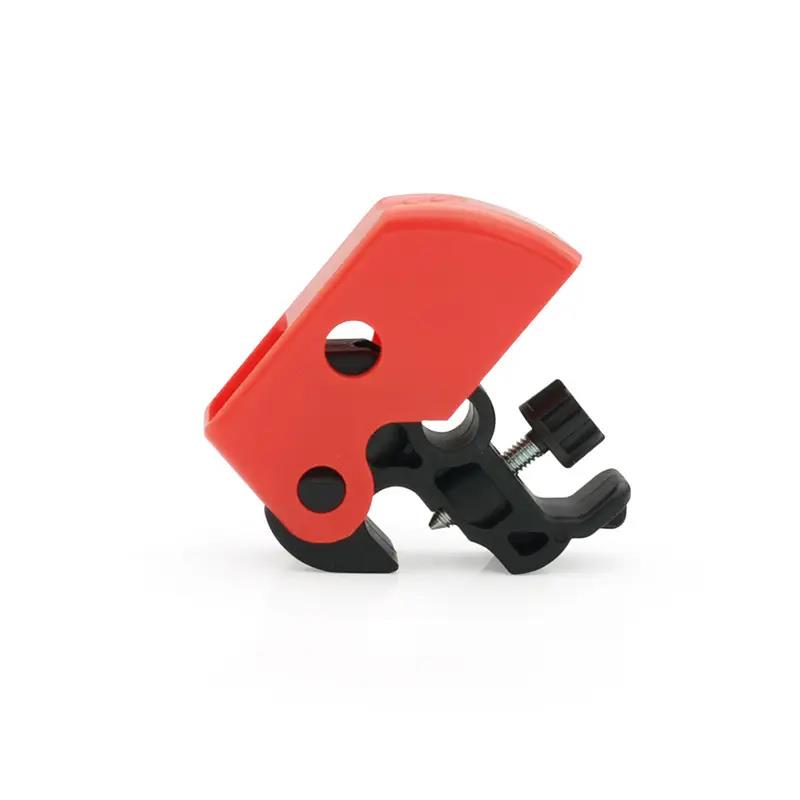

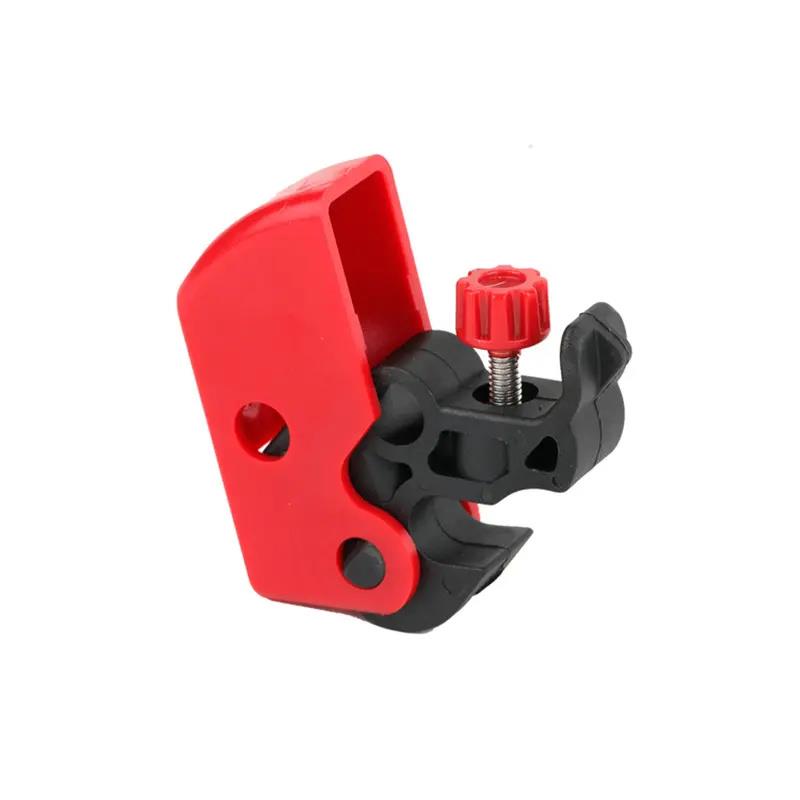

Easy to install: The lock attached with hand wheel type fastening screw. It can be locked manually without tools. And the circuit breaker locking device can be fixed on the motor protection switch by tightening the bending screw, and then the insulation padlock can be hung to prevent the clamping device from loosening.
Design: The internal design of the lock body adopts the clamp type design, which is more closely engaged with the handle of the circuit breaker, and is not easy to fall off in t he process of use. So as to ensure the effectiveness of the lock and tag to a greater extent.

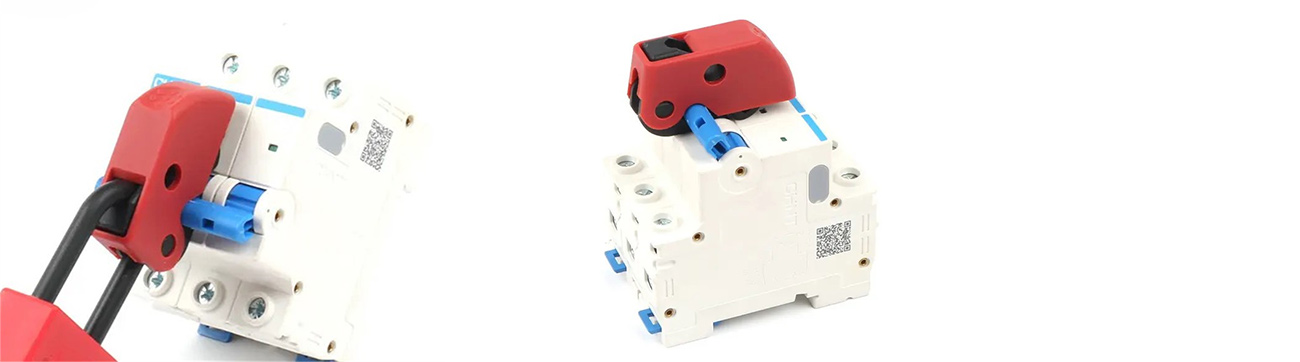

Ready to use: It can be used to lock the handle of miniature circuit breaker. When the external rotating screw is rotated, the screw can be firmly connected to the shell, and the circuit breaker switch can be prevented from touching.
