Model NO.: M-GX38
Product Description:
a) Reinforced nylon body, withstand temperature from -20℃ to 80℃. The steel shackle is chrome plated; withstand temperature from -20℃ to 120℃, ensuring the strength and deformation fracture not easily.

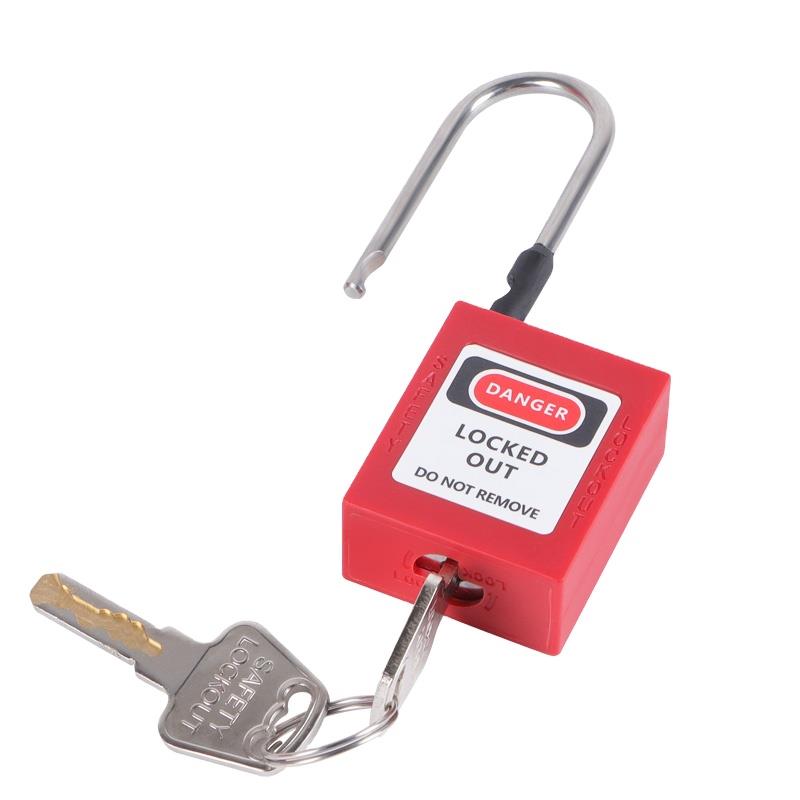

b) Key Retaining Feature: When the shackle is open, the key can’t be removed.
c) Laser printing and logo engraving available if required.
d) Multiple colors available.

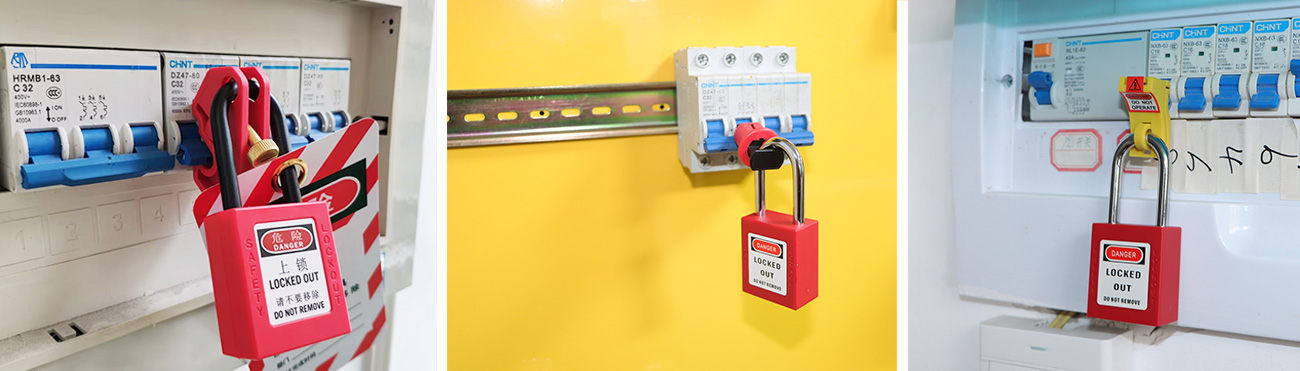

e) Easy to be carried. Widely used in chemical, electrical, automobile industry, etc.With re-writable warning signs.
f) The lock cylinder is?composed of 12 inserts with various combinations and high safety more than 40000 pieces are?separated from each other.
j) Key System: Keyed Different (KD), KD with Master Key(KDMK). Keyed Alike (KA) KA with master key (KAMK).
|
Place of Origin |
Zhejiang,China |
|
Brand Name |
QVAND |
|
Model Number |
M-GX38 |
|
Material |
PA66 Nylon and Stainless Steel Shackle |
|
Color |
Multiple Choice |
|

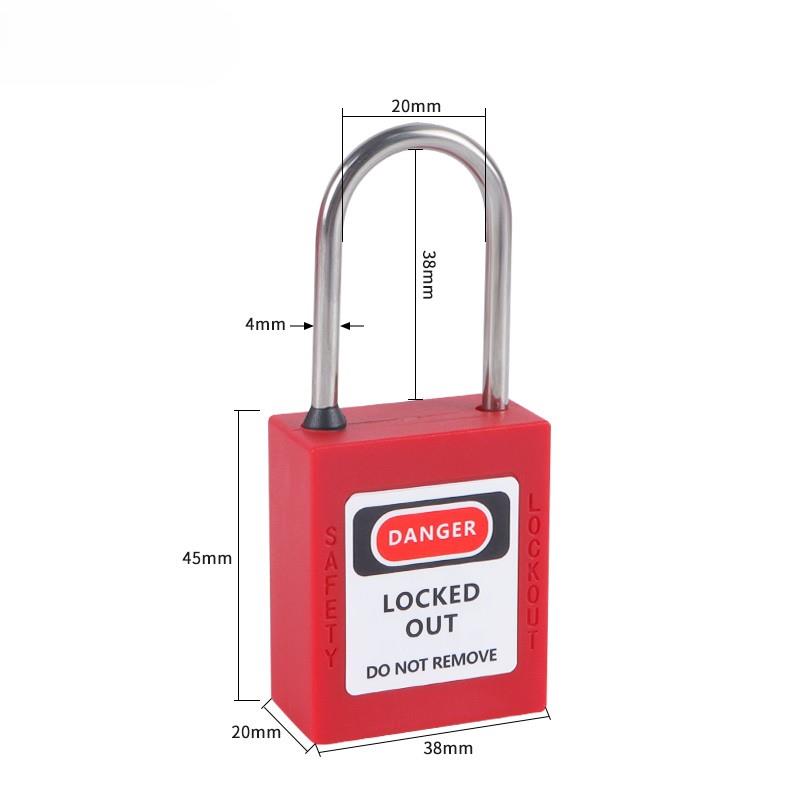

Body Size |
45*38*20mm |
|
Shackle Diameter |
4mm |
|
Shackle Height |
38mm |
|
Key System |
KA,KD,KDMK,KAMK |
|
Service |
OEM Support |
Customized Programs：

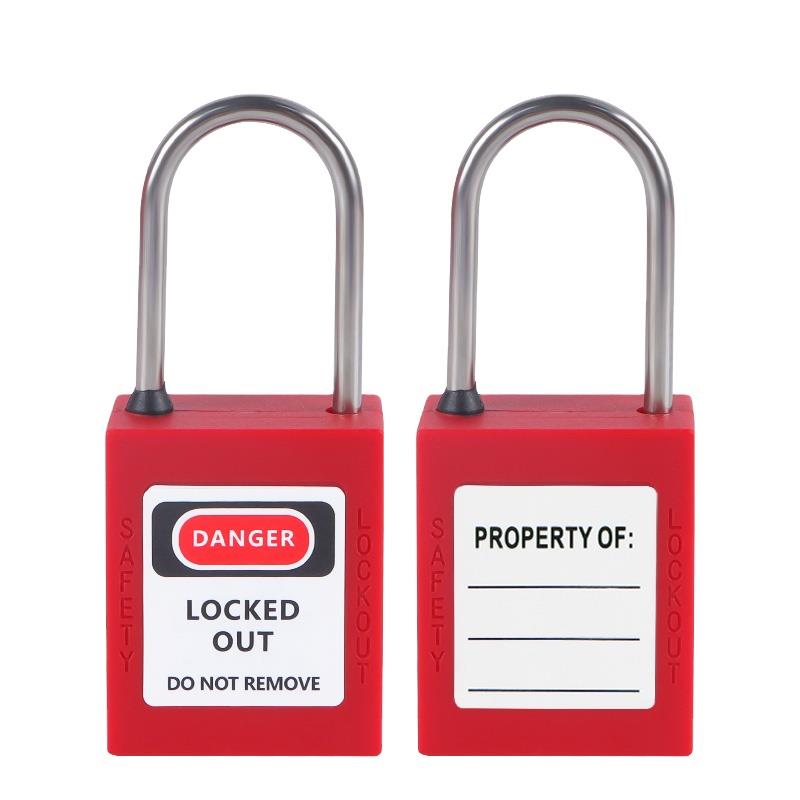

1. Padlock has a label with text: “Danger locked out”/”Do not remove, property”. Label can be customized.
2. The lock body and key can print same code, which is convenient for management.
3. Can be engraved with customers’ logo if required.

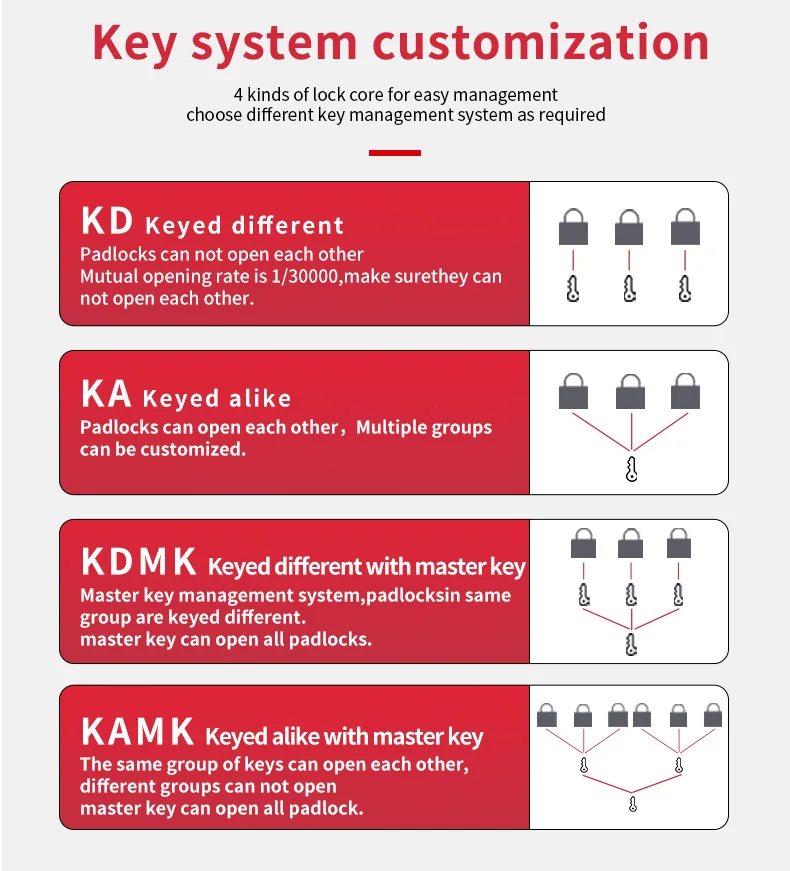

KEY CHARTING SYSTEM:
1. Keyed Differ System（KD): Each padlock is keyed differently,supplied with 1 keys per lock. 20000pcs individual padlocks available.
2. Keyed Alike System (KA): Each padlock is keyed the same. 1 key will open all padlocks in each group.
3. Differ&Master Key System (KDMK): Each padlock is keyed differently, supplied with 1keys per lock. A master key will override and open any of these padlocks.
4. Alike & Master Key System (KAMK): Each padlock is keyed the same in one group. A master key will override and open all groups of Alike keyed.
5. Grand Master Key System (GMK): Each padlock is keyed different in one group. A grand master key will override and open all different KDMK groups.
