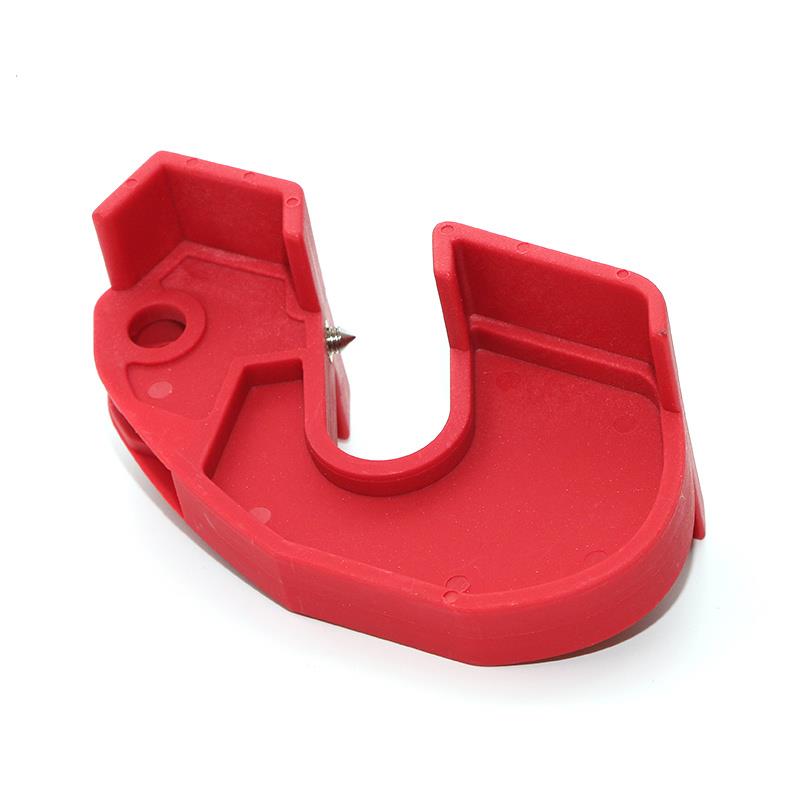

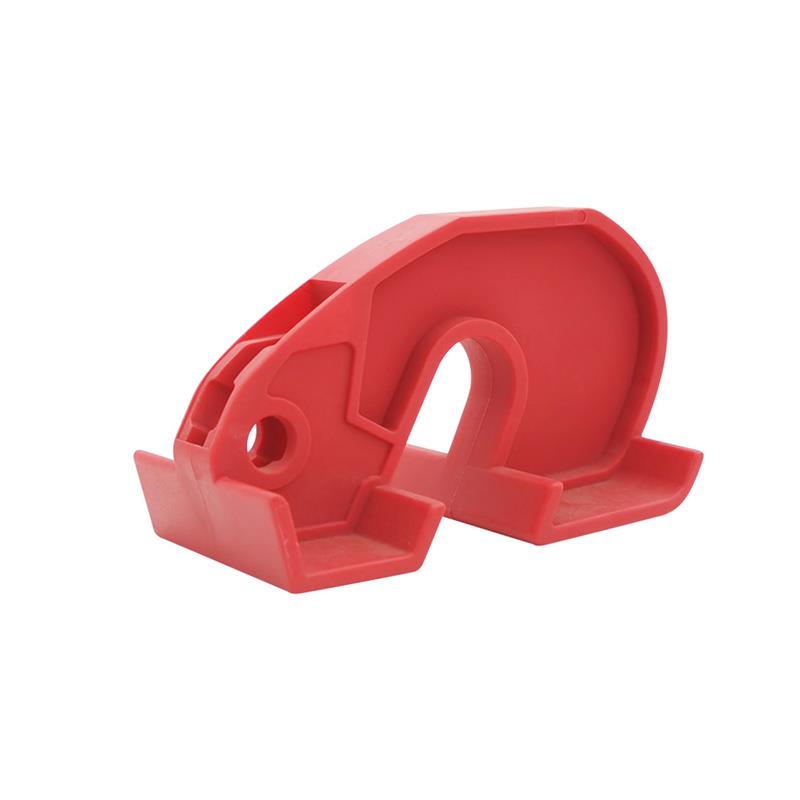

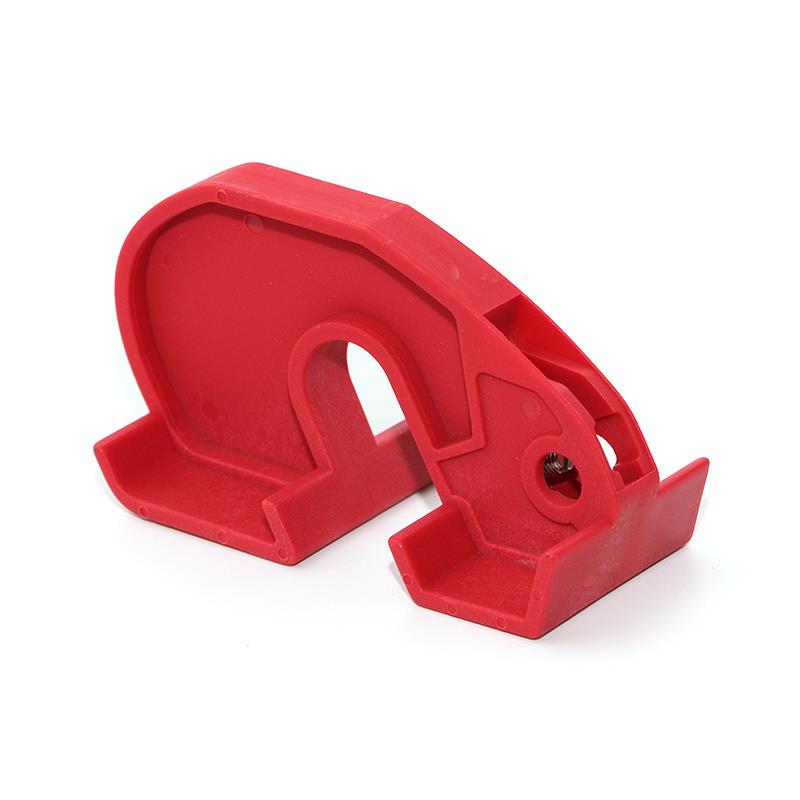

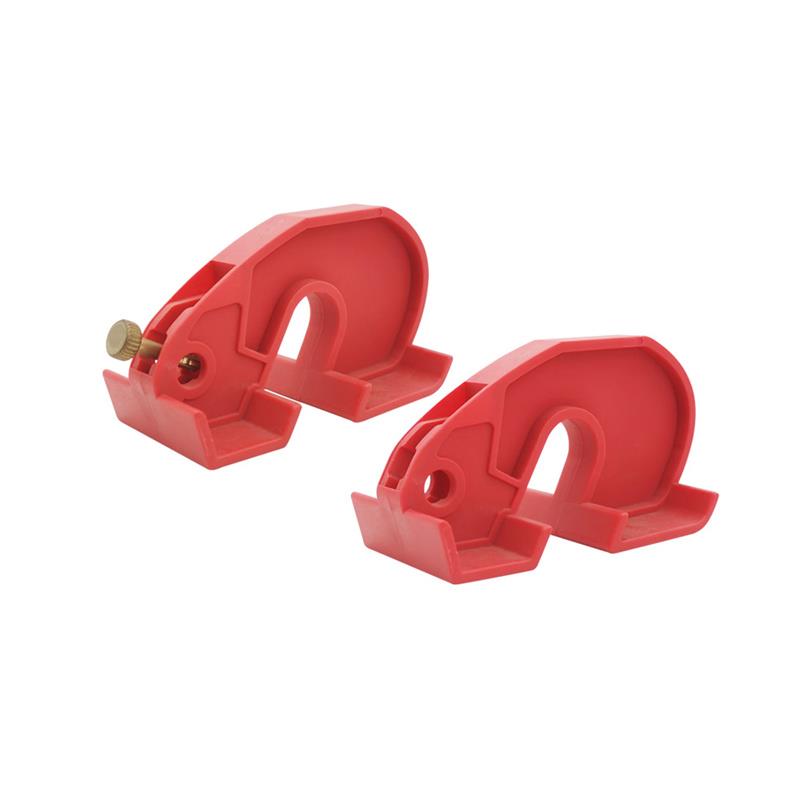

Circuit Breaker Lockout

Product Description

Lock body is made from engineering plastic strengthened nylon PA,corrosion resistance,impact resistance and temperature difference resistance(-57℃~ 177℃）Locks out most types of large circuit breakers with a toggle,suitable for large size circuit breakers.It can be used in with a safety padlock,with 8 mm padlock hole,clamping toggle 12mm to 19mm.Lock with a screw driver.

a) Made from engineering plastic strengthened nylon PA.

b) Lock out different types of circuit breakers.

c) Fits on breaker toggles and can be tightened with a screw driver.

d) Can take a padlock with shackle diameter up to 10mm.

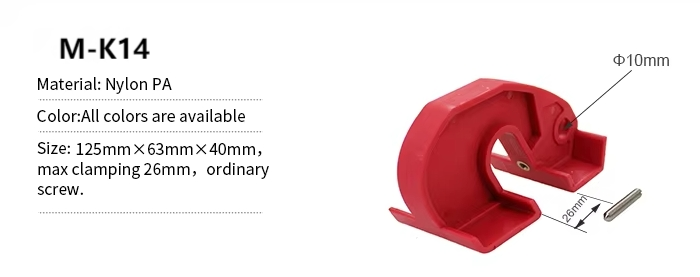

 Miniature circuit breaker lock specification

1. Material: lock body is made from engineering plastic strengthened nylon PA, corrosion resistance, impact resistance and temperature and temperature different resistance(-57℃~ 77℃).

2. Easy installation: the simple circuit breaker lockout is fastened by a small slot type screw. After the lock body is stuck at the handle of the circuit breaker, it is necessary to tighten the screw with the help of a slot type screw driver and hen lock it to prevent loosening.

3. LOGO customization: the lock body can be customized through pad printing, laser or mold opening and other ways to customize your logo or management code, flexible customization can more easily achieve the implementation of the process of lockout tagout.

4. Wide rang of uses: through professtional design, the product is suitable for a various of single-stage, multi-stage and any miniture circuit breakers(no need to modify the panel or the circuit breaker itself) to protect employees from electrical accidents during equipment maintenance.

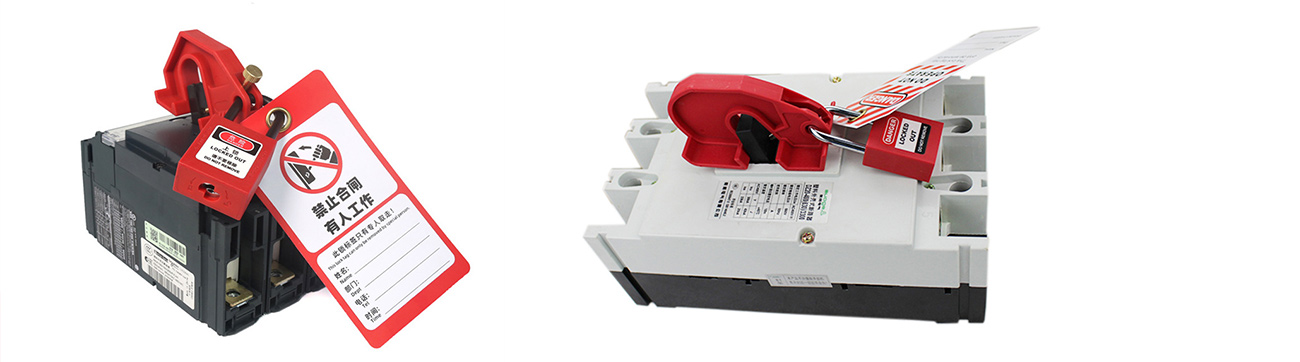

5. Installation and collocation: circuit breaker lockout is recommend to be collocated with small insulated safety padlocks and safety tagouts to achieve energy isolation, equipment locking and prevent misoperation.
