Product Description
a) Made from strong engineering plastic strengthened and high-strong reinforced nylon PA. And special process makes products more durable, corrosion-resistant, impact resistance and temperature difference resistance (-57℃ to 177℃).
b) Self-locking screws, easy to lock without tools.
c) Wide range of used: Suitable for all kinds of miniature circuit breakers (handle width≤15mm).
d) Accepts padlock with shackle Diameter. Up to 7mm.

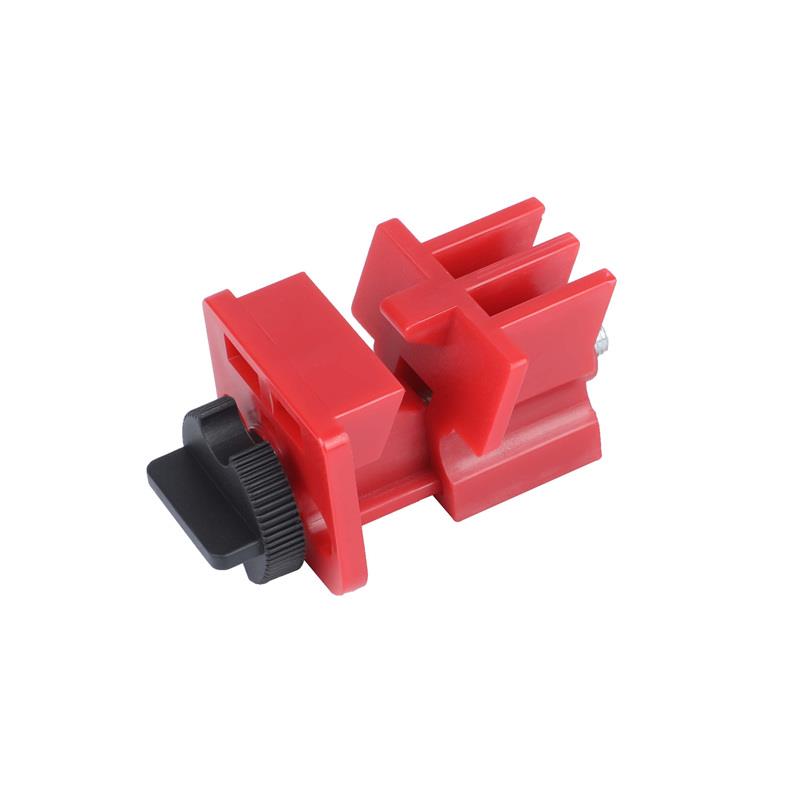

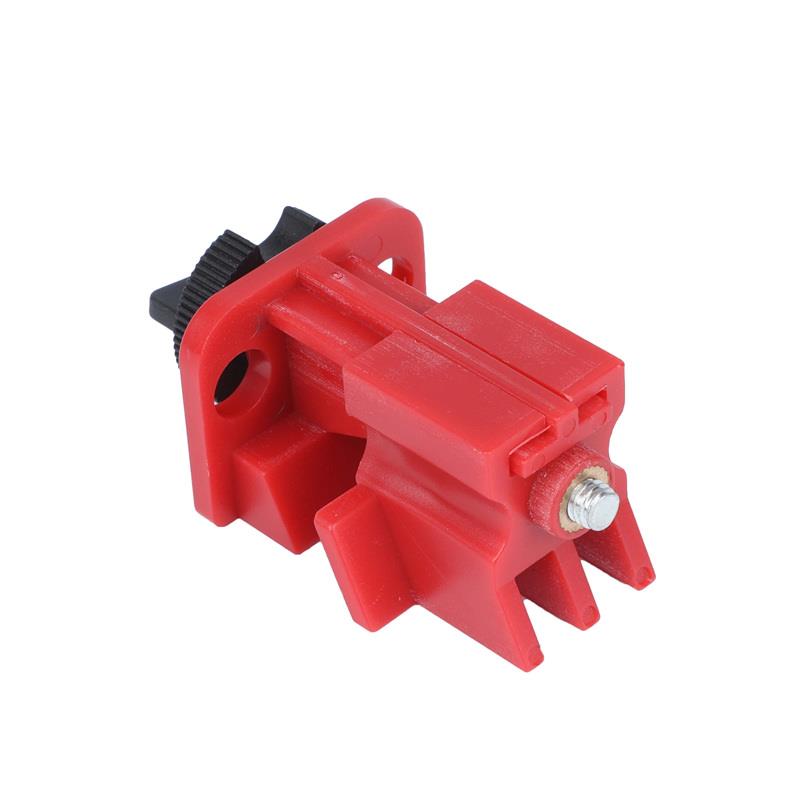

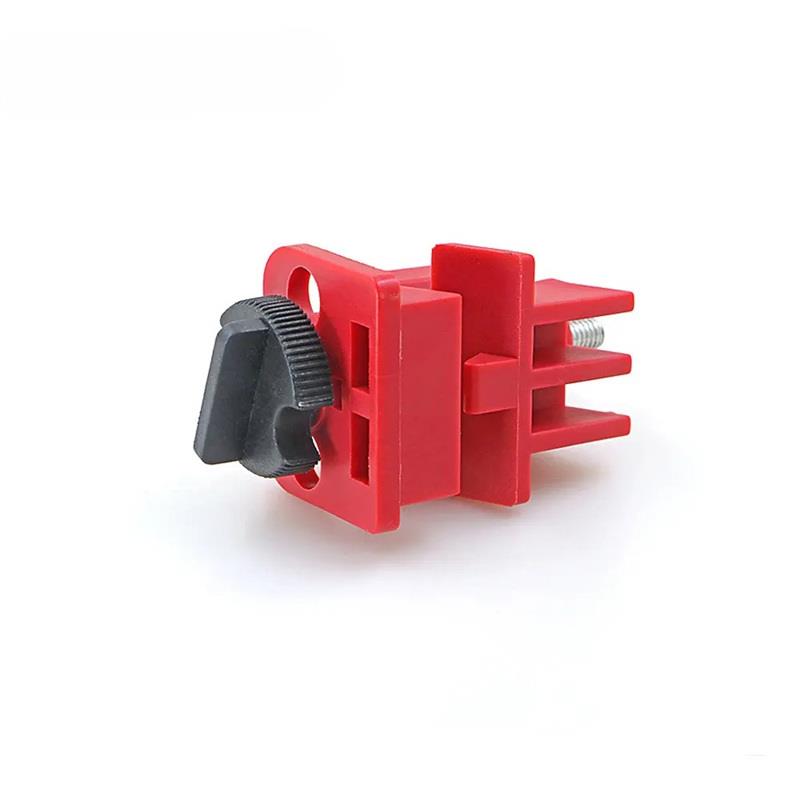

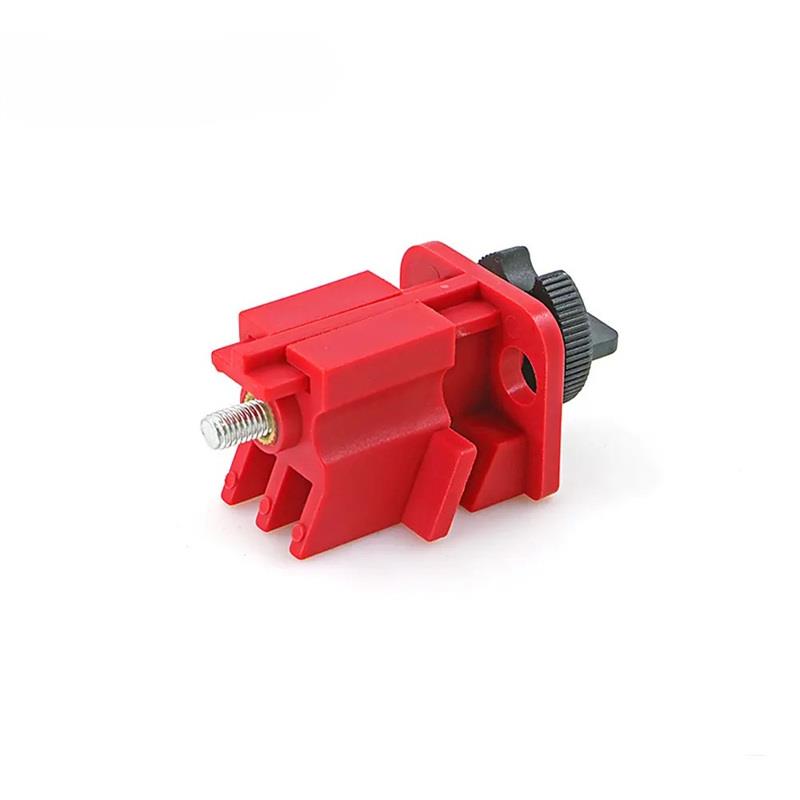

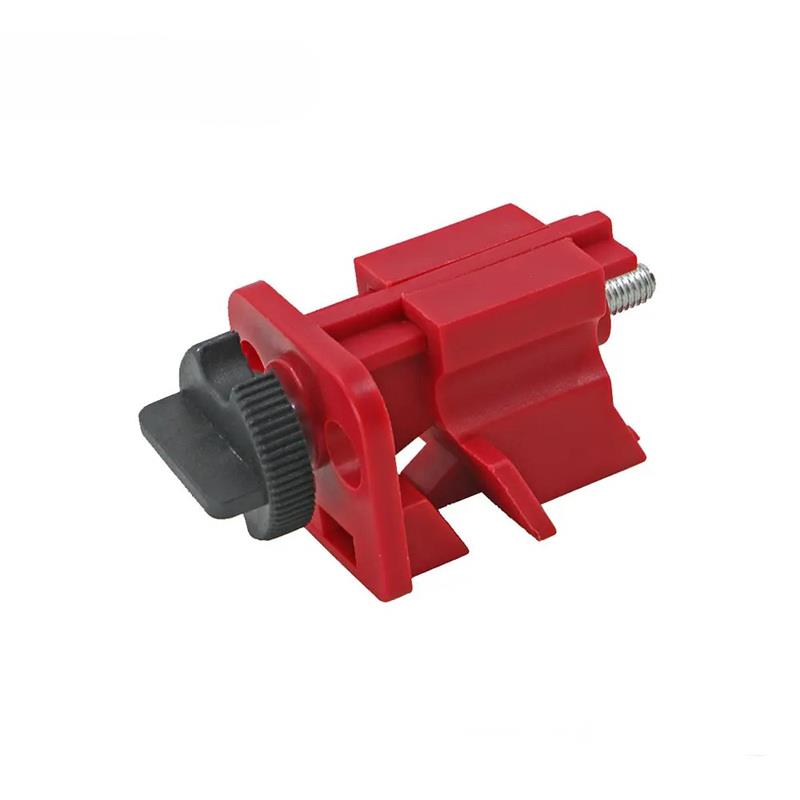

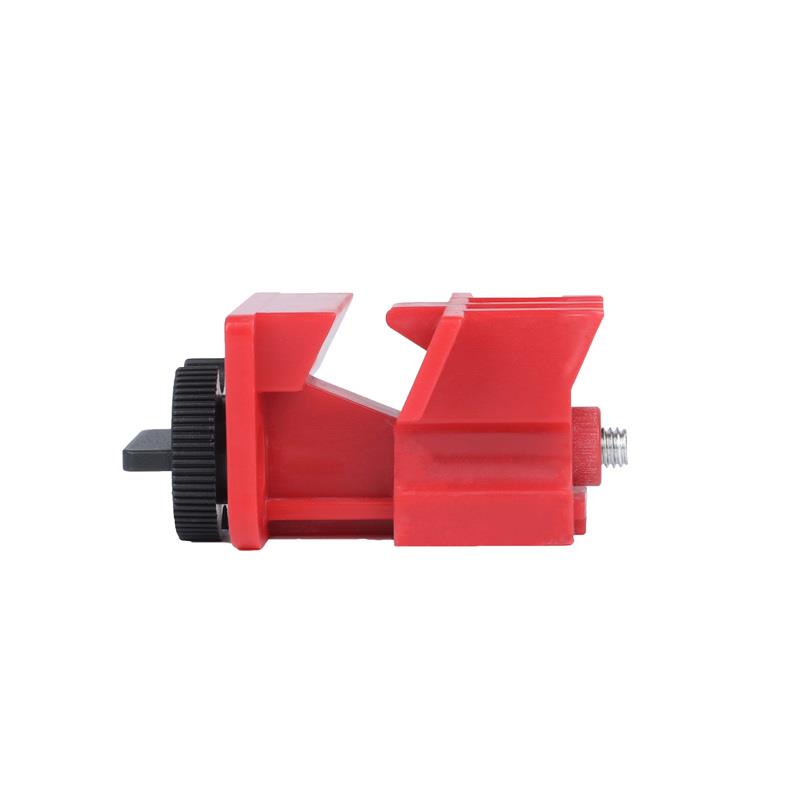

e) Clamp-on breaker lockouts are versatile and easy to install using the proprietary thumb-wheel design – no screwdrivers needed.
|
Model |
Product |
Material |
Description |
|
M-K14 |
|
PA |
Suitable for handle thickness ＜26mm |
|
M-K15 |
|
PA |
Suitable for handle thickness ＜7mm |
|
M-K16 |
|
PA |
Suitable for handle which have holes on both sides. |
|
M-K19 |
|
ABS and PA |
The rod length 190mm,Suitable for irregular shapes switches. |
|

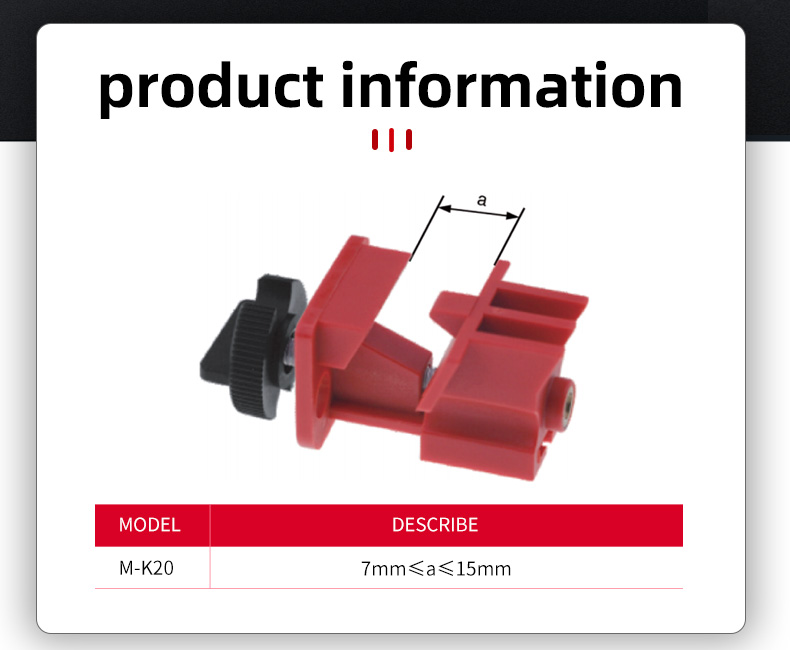

M-K20 |
|
PA |
Suitable for handle thickness from 7-15mm |
|
M-K21 |
|
Nylon |
Suitable for handle thickness ＜9mm. |
|
M-K23 |
|
Nylon PA |
The 4 holes can be locked to accept the safety padlock with a shackle diameter ≤8.6mm |
|
M-K24 |
|
Nylon |
Suitable for various large molded case circuit breakers (handle thickness ≤20mm |
|
M-K25 |
|
Nylon |
Suitable for handle thickness ≤7mm. |
|
M-K29 |
|
PA |
Pin out,suitable for hole distance 10-14mm. |
|
M-K30 |
|
PA |
Suitable for handle thickness ≤8mm. |

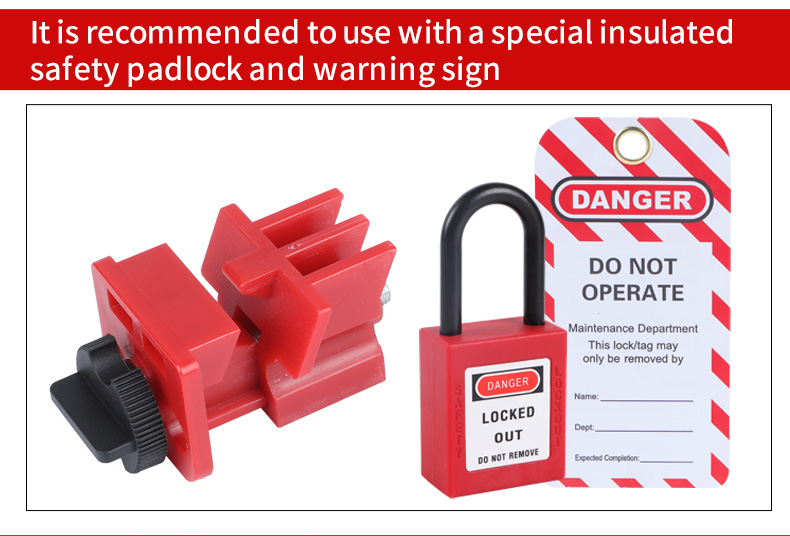

* Usage: Recommended to use in combination with a padlock for added safety; And can be easily installed with the aid of a push button;The lockouts can take padlocks with a shackle diameter up to 6 mm
* Features: OEM Manufacturing Service Supported,no installation tools required, available for single and multi-pole breakers
* Applied: Fit most existing types of European and Asia circuit breaker,rotatable screw cap,it meet job requirements,can be easily tightened and opened.Plastic lock,the lockouts can take padlocks
with shackle diameter up to 7mm.
*Easy to lock: with screw,no need tools to lock,tighten screw,then can protect to loose.
*Clamp design: Clamp-on breaker lockout,more firm after installation,can accommodate 2pcs safety padlock with shackle diameter ≤ 7mm.the device isolate and fix circuit breaker switch,to protect staff being suffered during equipment maintenance.

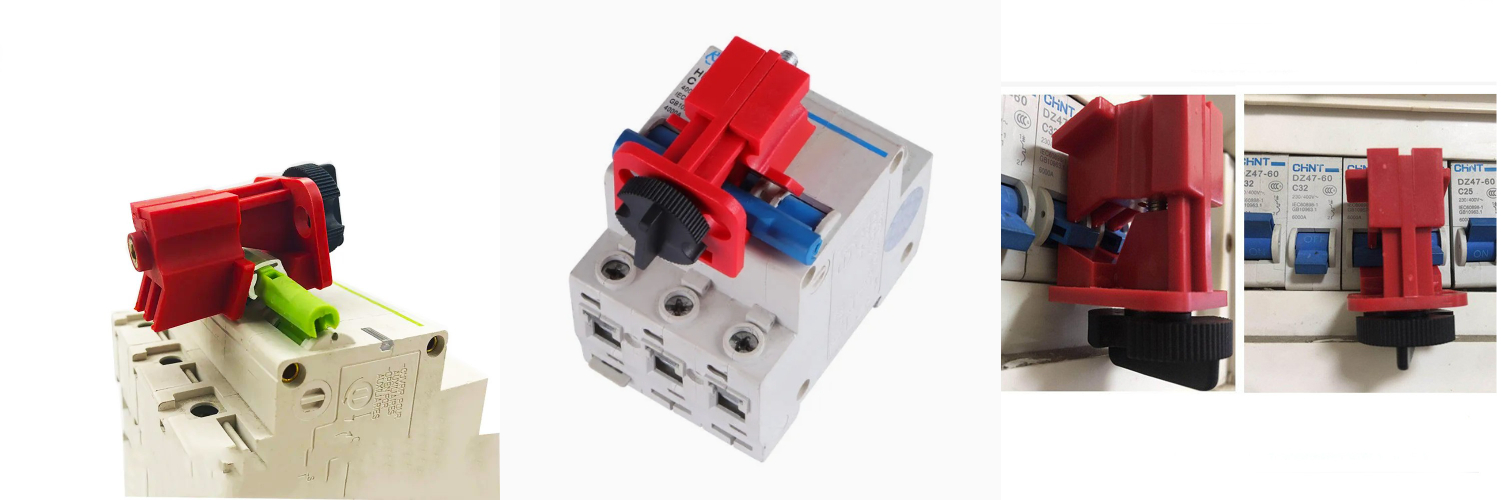

*Install and collocation: Professional design,the lockout suitable for most of 2 poles,3 poles pull circuit breaker,the device isolate and fix circuit breaker switch.
*Structure design: Universal multi-pole circuit breaker lockout adopts rod type clamp design,which is more firm and not easy to fall off after installation.The lock can hold 2 safety padlocks which shackle ≤7mm and lockout tag.
*Easy installation: Circuit breaker lockout comes with locking screw and can be locked without tools.Secure the lock to the switch handle using a shaped screw,then attach an insulated padlock to prevent it from loosening.
