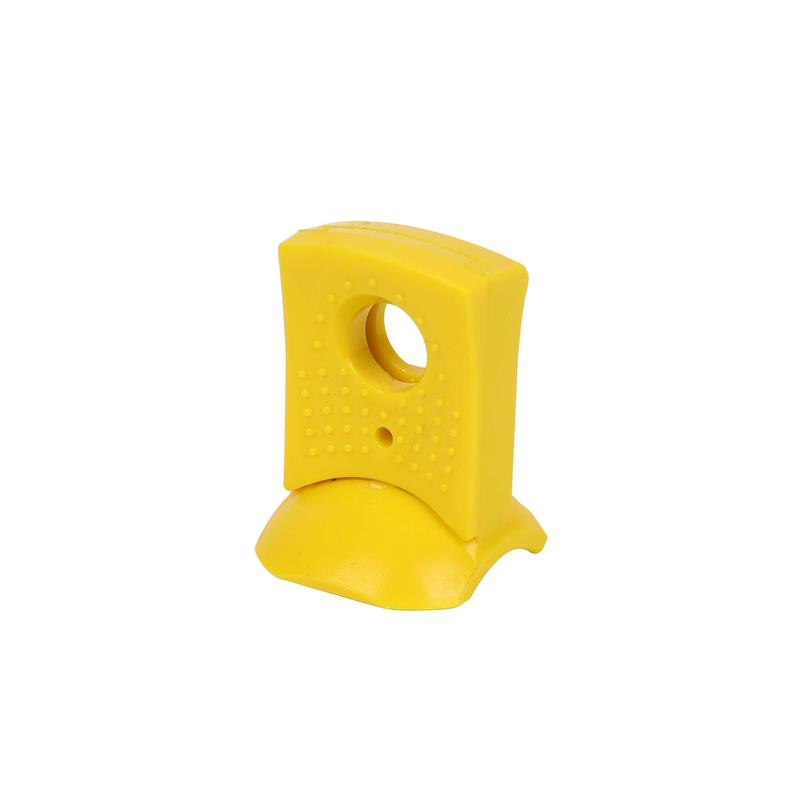

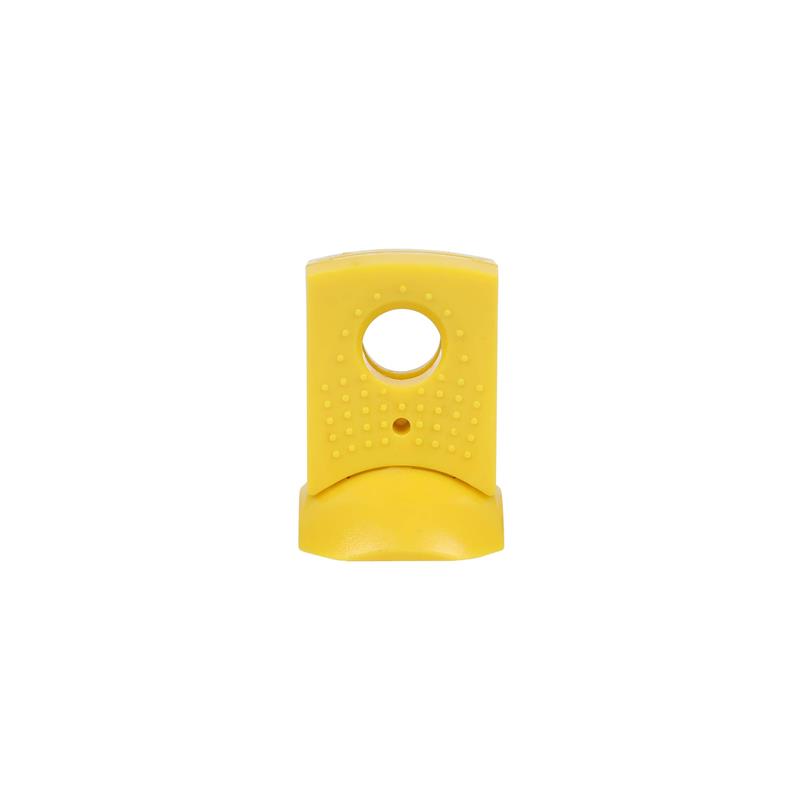

Circuit Breaker Lockout

Model NO.: M-K28
Product Description:
a. The body is made from PA66+ABS.
b. For locking Schneider special circuit breaker.

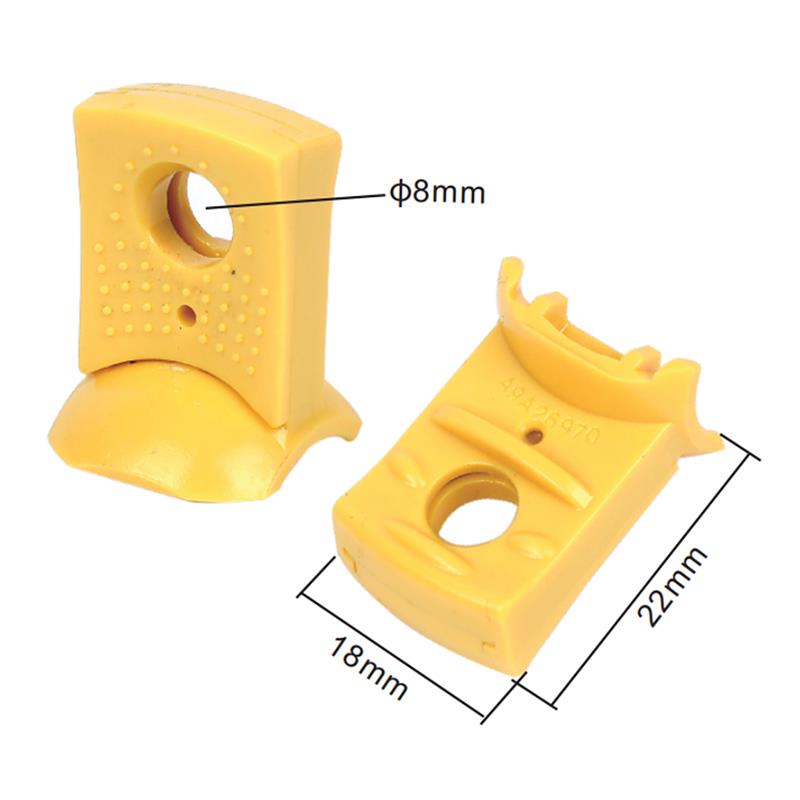

c. The lockouts can take padlock with a shackle diameter up to 6mm.
d. Color: Yellow, can be customized.
1. A safe and effective method to lock out miniature circuit breakers; universal for European and Asian equipment.
2. No tools are needed for the installation of the miniature circuit breaker.
You just need a button to finish installation easily.
3. Thumb wheel is used for pull rod type locks for quick completion of installation; available as single-pole and multiple-pole circuit breakers for choice.
4. It is suggest to use the product together with Best safe's safety padlocks or other padlocks; can use padlocks with a shackle diameter of 7mm.

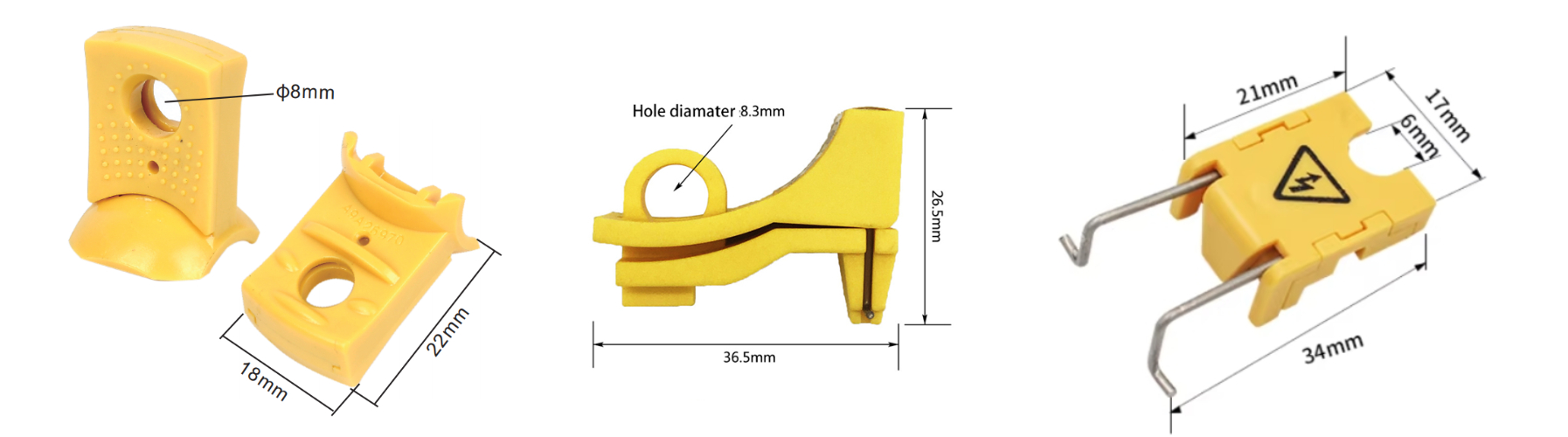

Model

Product

Material

Description

M-K28

PA66 and ABS

Suitable for Schneider circuit breakers IC65/IC65C series

M-K31

PA

Suitable for most of miniature circuit breakers.

M-K34

PA

Suitable for handle thickness ≤7.7mm



Place of Origin

Zhejiang,China

Brand Name

QVAND

Model Number

M-K28

Material

Nylon Plastic

Color

Yellow

Service

OEM Support

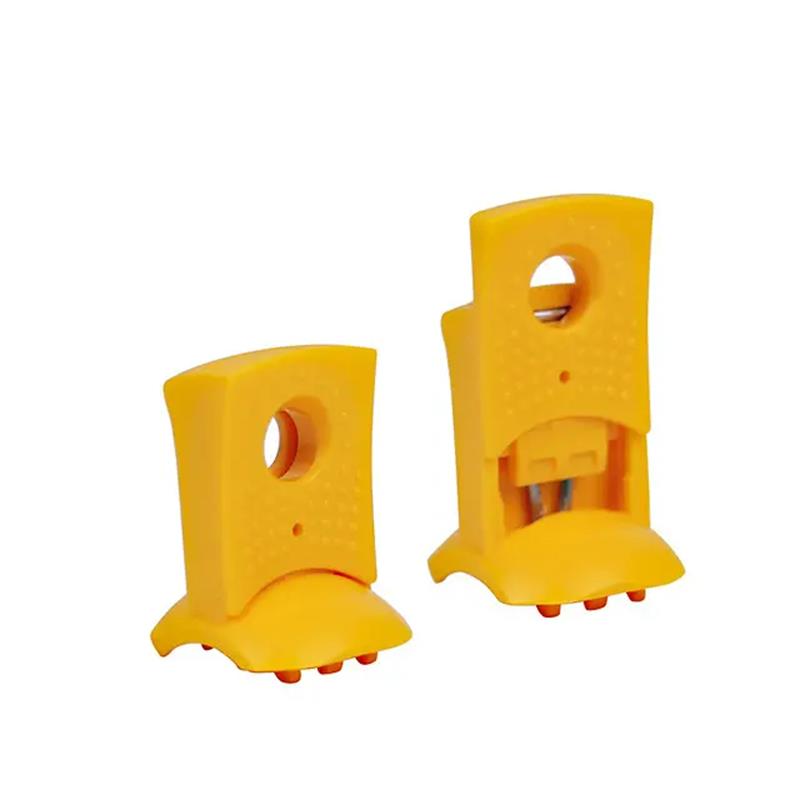

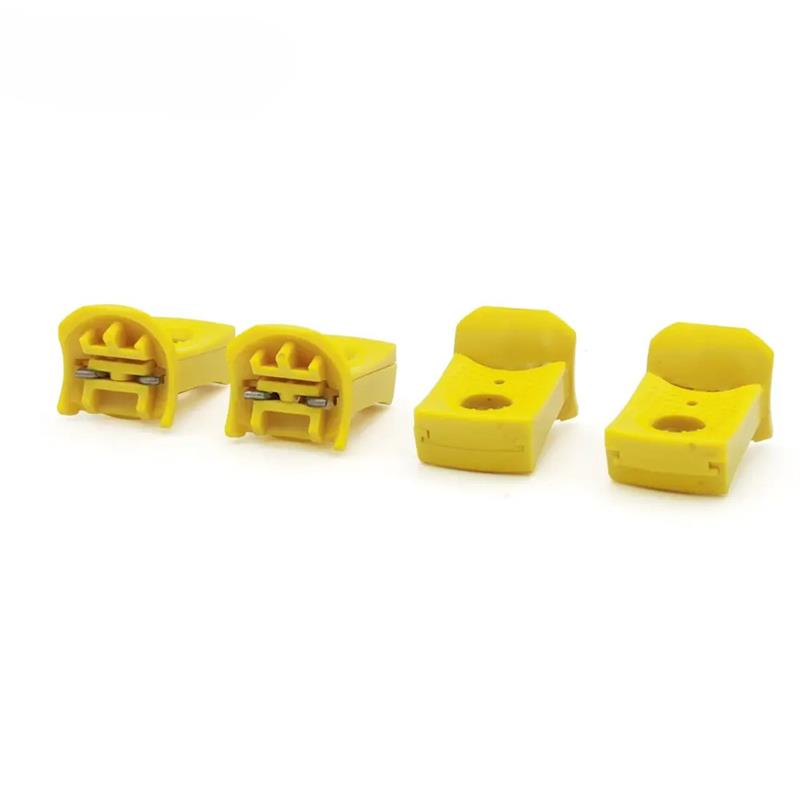

Pin design:
The inside of the lock body adopts pin design.
It is tightly installed with the circuit breaker handle,and not easy to fall off during use. Which guarantee the effectiveness of locking and tagging to a greater extent.Locked the breaker to protect employees from electrical failure during equipment maintenance.

Easy to lock:The clever design make it no need tools.press down with your fingers on the side of the lock cover with wave spots and push up.Align the lock body with the Schneider miniature circuit breaker buckle,and then push the lock cover down and fasten it,use it together with an insulating padlock and a safety tag to prevent unexpected start.

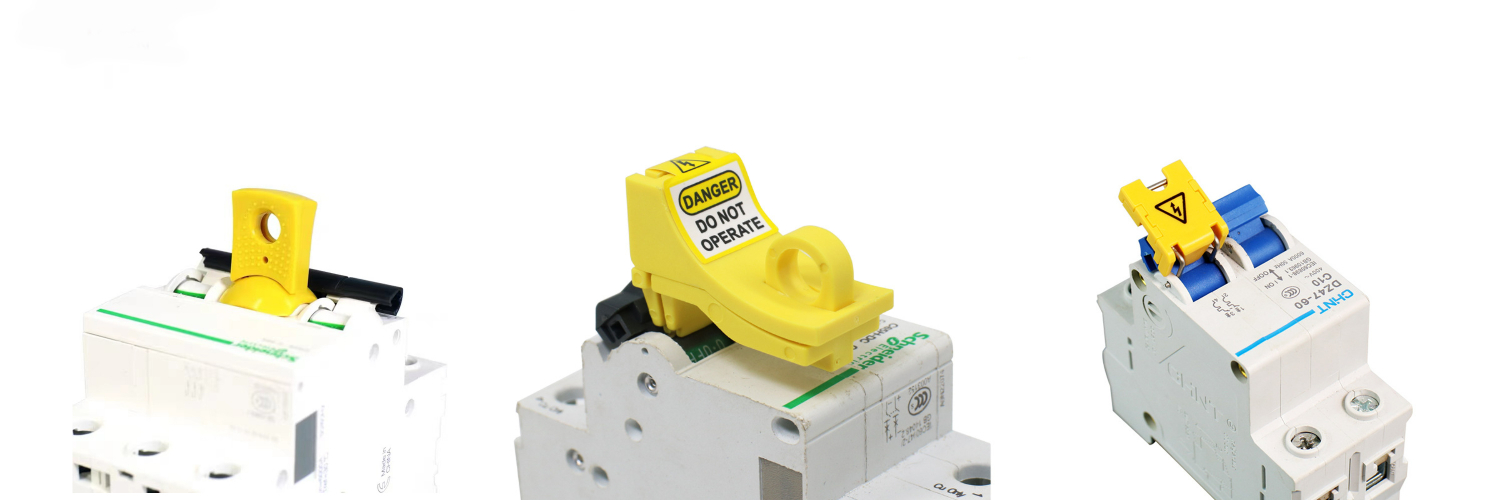

Install and collocation:Can be used to lock miniature circuit breaker handle,padlock can be locked vertically or horizontally,it can be installed side by side on adjacent miniature circuit breaker,locked the breaker to protect employees from electrical failure during equipment maintenance.
