Model |
Product |
Material |
Description |
|
M-K14 |
|
PA |
Suitable for handle thickness ＜26mm |
|
M-K15 |
|
PA |
Suitable for handle thickness ＜7mm |
|
M-K16 |
|
PA |
Suitable for handle which have holes on both sides. |
|
M-K19 |
|
ABS and PA |
The rod length 190mm,Suitable for irregular shapes switches. |
|
M-K20 |
|
PA |
Suitable for handle thickness from 7-15mm |
|
M-K21 |
|
Nylon |
Suitable for handle thickness ＜9mm. |
|
M-K23 |
|
Nylon PA |
The 4 holes can be locked to accept the safety padlock with a shackle diameter ≤8.6mm |
|
M-K24 |
|
Nylon |
Suitable for various large molded case circuit breakers (handle thickness ≤20mm |
|
M-K25 |
|
Nylon |
Suitable for handle thickness ≤7mm. |
|

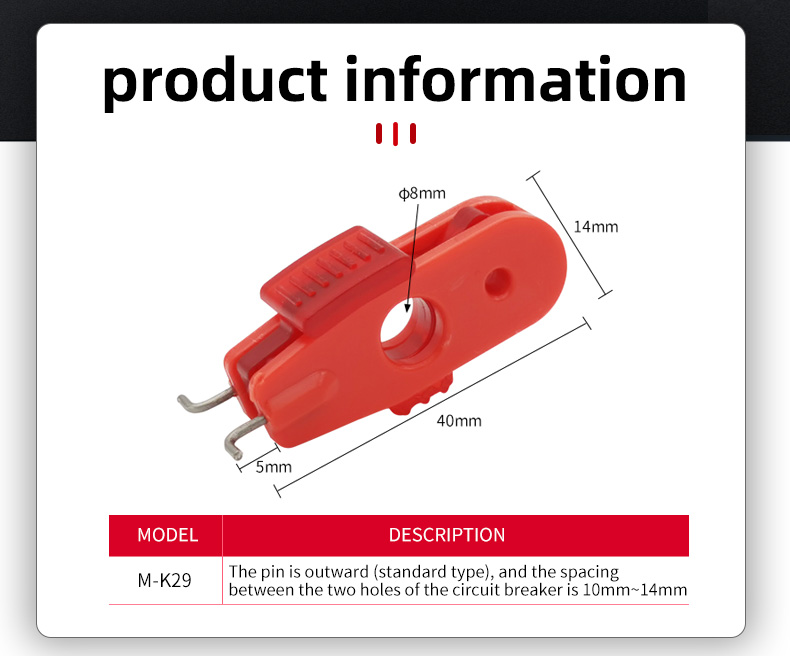

M-K29 |
|
PA |
Pin out,suitable for hole distance 10-14mm. |
|
M-K30 |
|
PA |
Suitable for handle thickness ≤8mm. |
|
Place of Origin |
Zhejiang,China |
|
Brand Name |
QVAND |
|
Model Number |
M-K29 |
|
Material |
Nylon PA |
|
Color |
Red |
|
Service |
OEM Support |
Easy to lock: the clever design make it no need tools. Press down with your fingers on the side of the lock cover with wave spots and push up, align the lock body with the Schneider miniature circuit breaker buckle, and the push the lock cover down and fasten it, use it together with an insulating padlock and a safety tag to prevent unexpected start.

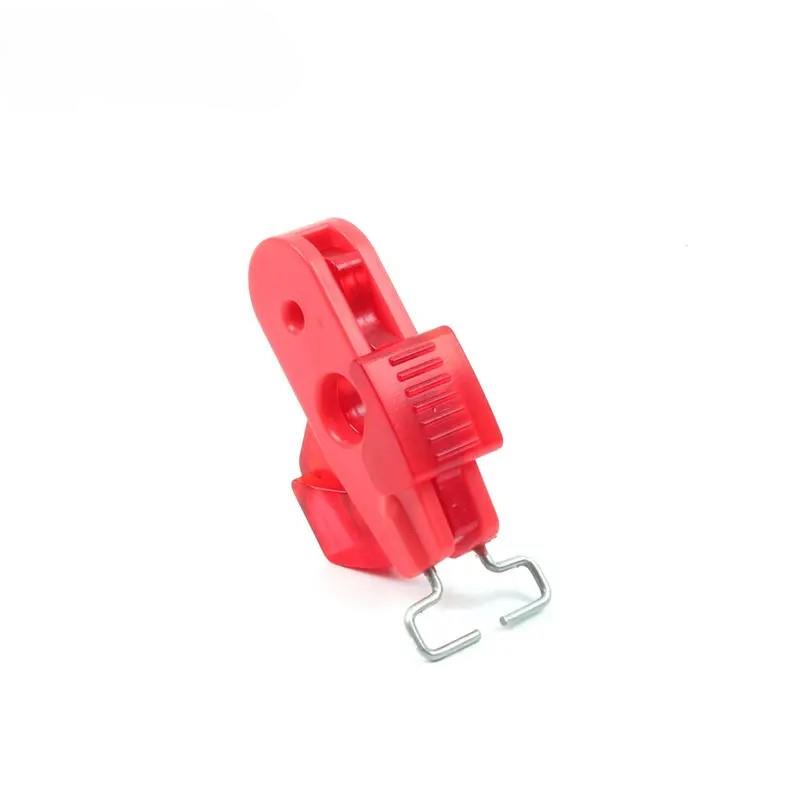

Pin design: The inside of the lock body adopts pin design, it is tightly installed with the circuit breaker handle, and not easy to fall off during use, which guarantees the effectiveness of locking and tagging to a greater extent, locked the breaker to protect employees from electrical failure during equipment maintenance.

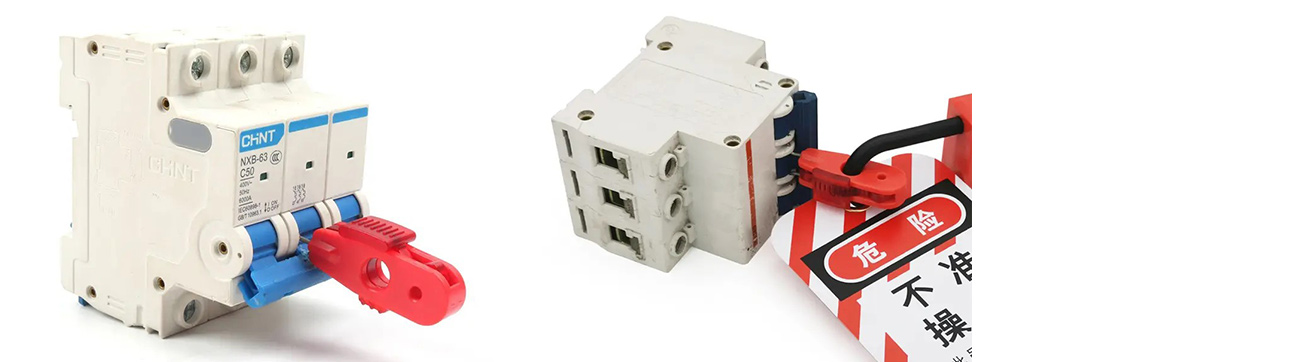

Install and collocation: Can be used to lock miniature circuit breaker handle. Padlock can be lock vertically or horizontally, Can be installed side by side on adjacent miniature circuit breakers. Locked the breaker to protect employees from electrical failure during equipment maintenance.
