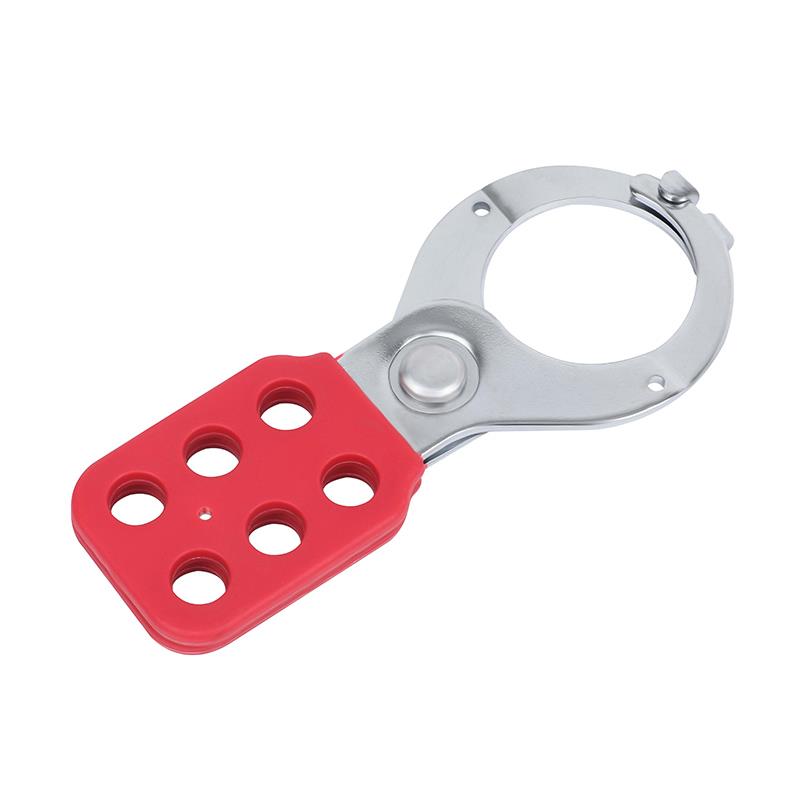

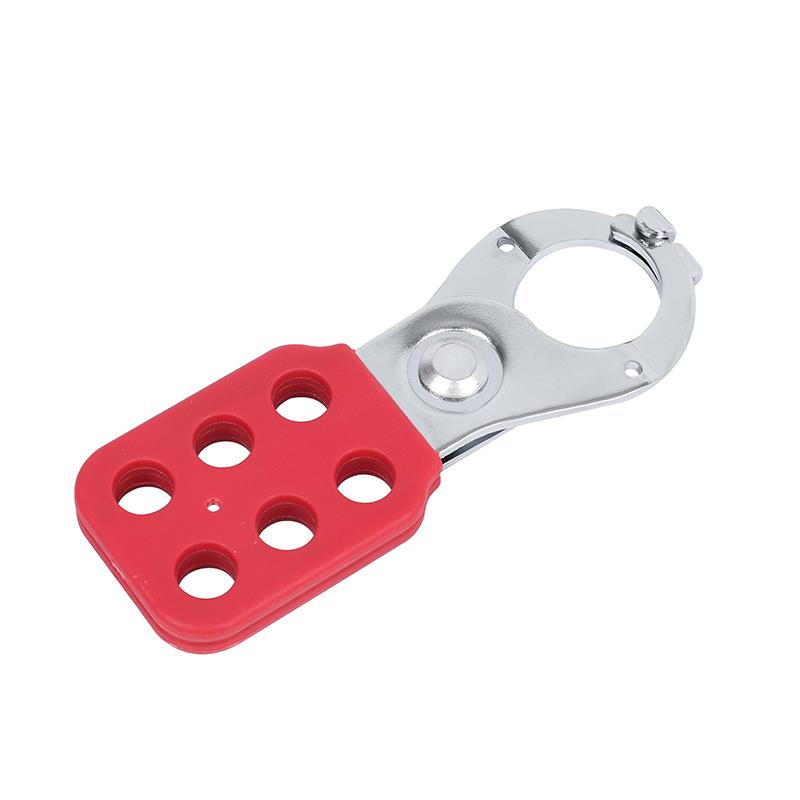

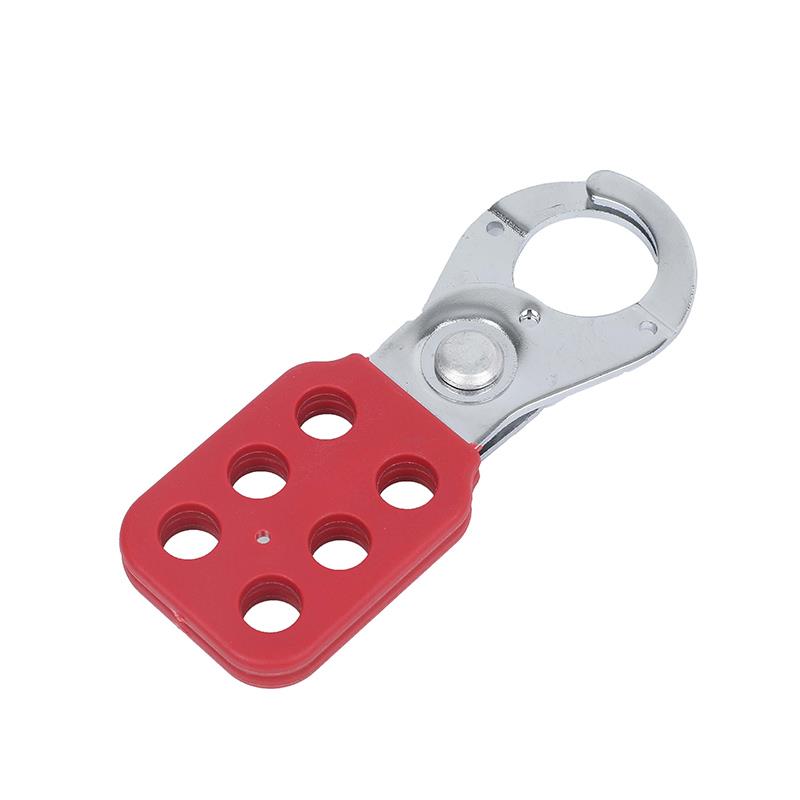

Product Description
Model NO.: M-D01-04
a) Handle is made of Nylon PA, and lock shackle is made of nickel plated steel.

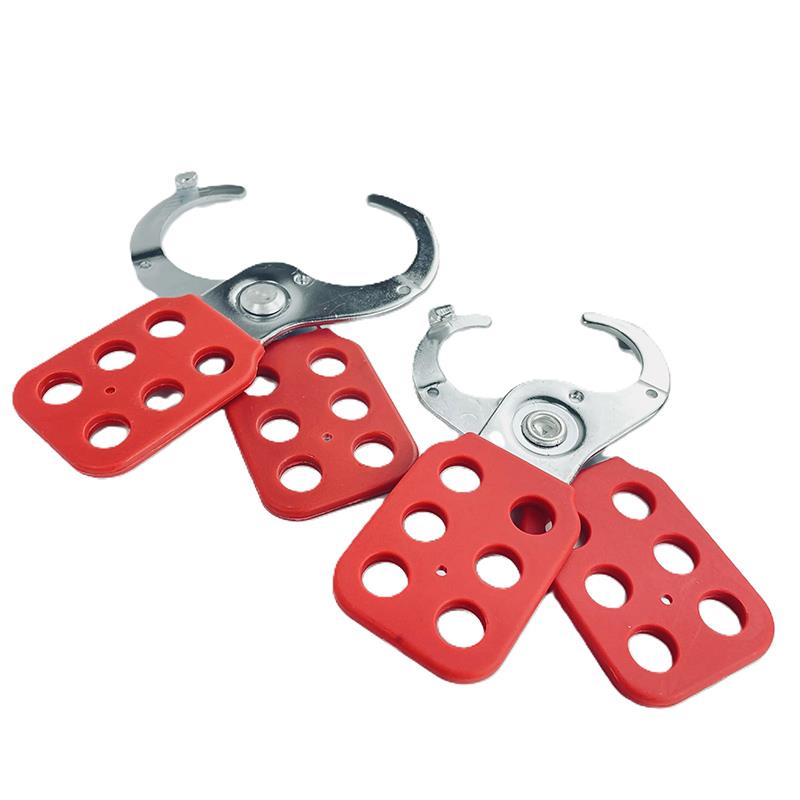

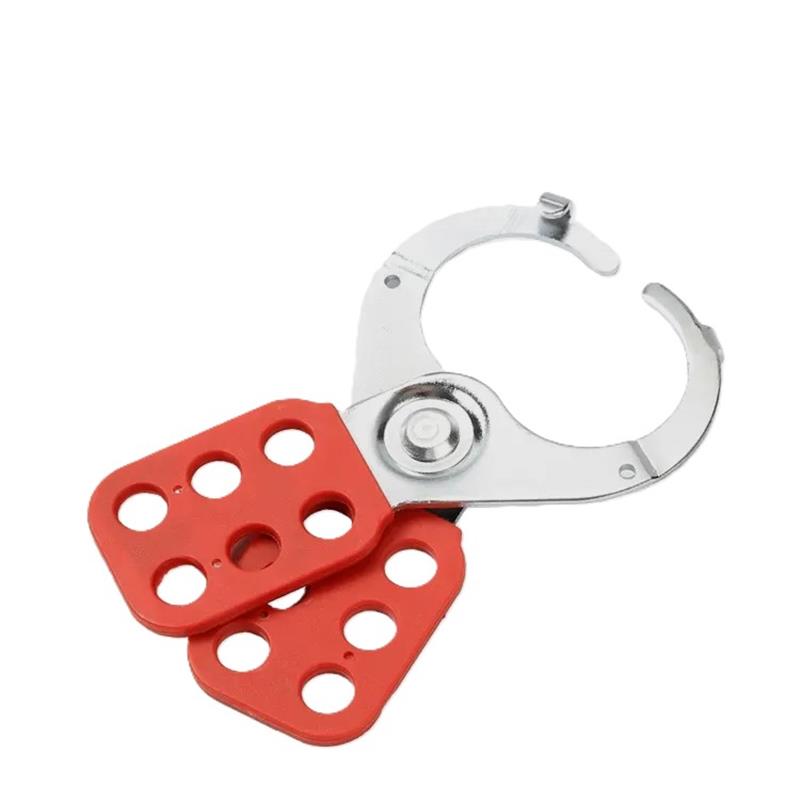

b) Steel lockout hasp includes tamper-proof inter locking tabs to prevent unauthorized opening.
c) Lock holes:10.5mm diameter.

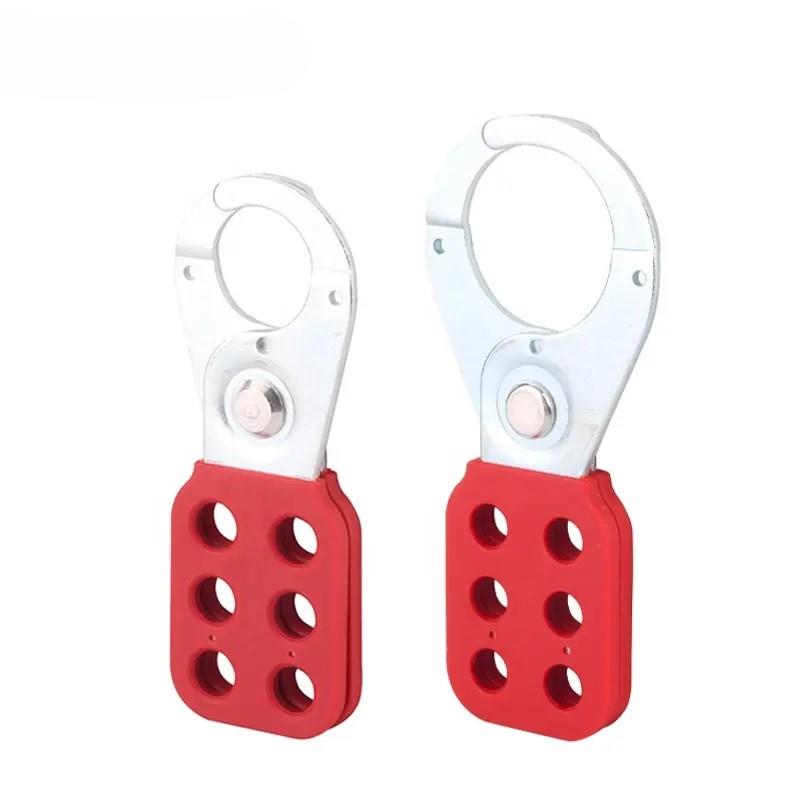

d) Jaw size:1*(25mm) & 1.5*(38mm),accept up to 6 padlocks.
e) Colors of handle can be customized.

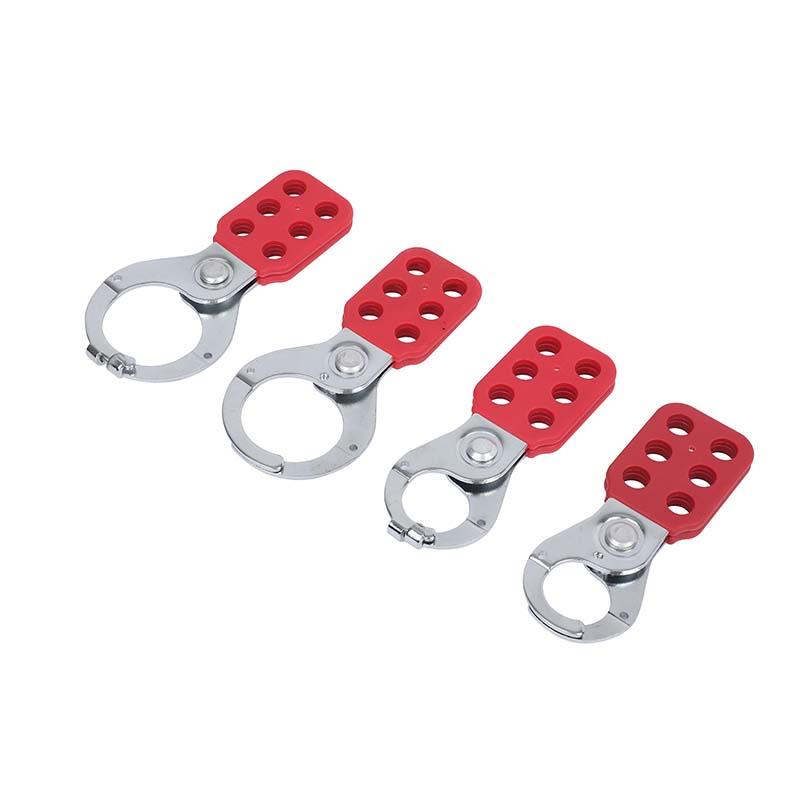

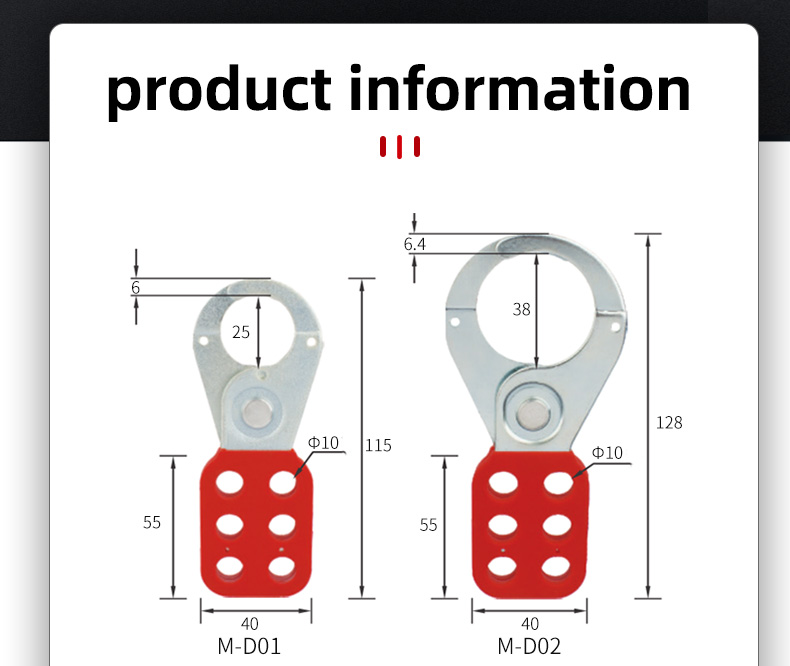

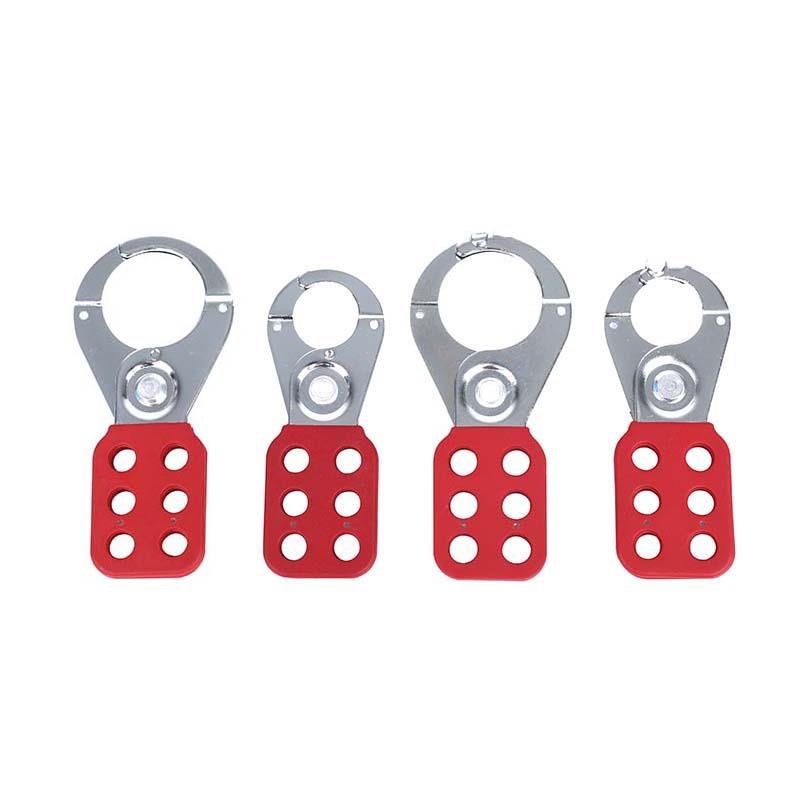

| Model | Jaw Size | Handle Material | Hook Material |
Descriptions |

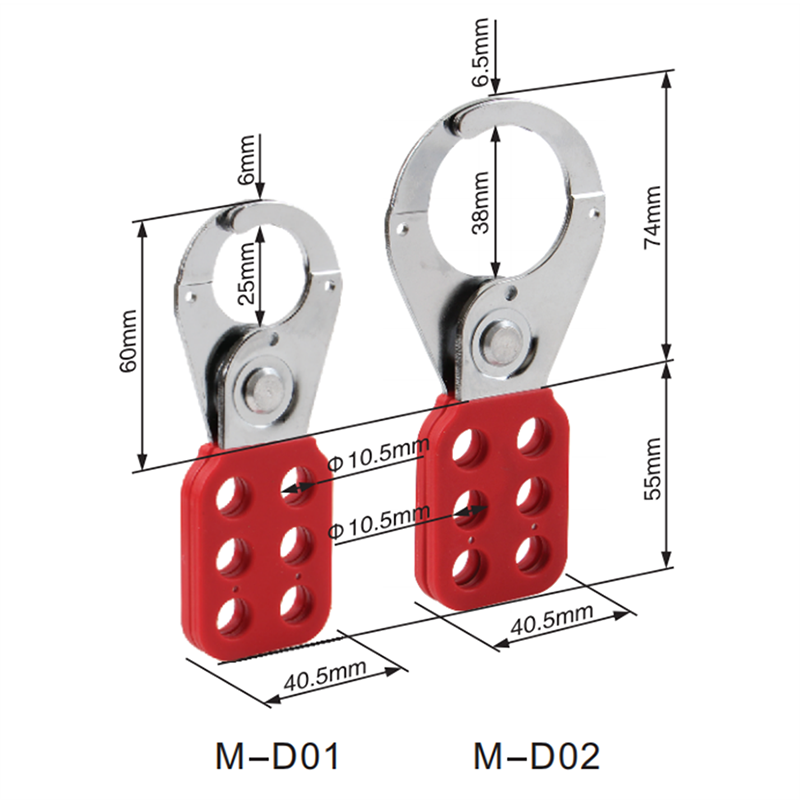

| M-D01 | 1"(25mm) | Nylon | steel |
nickle plated steel hook |
| M-D02 | 1.5"(38mm) | Nylon | steel |
nickle plated steel hook |

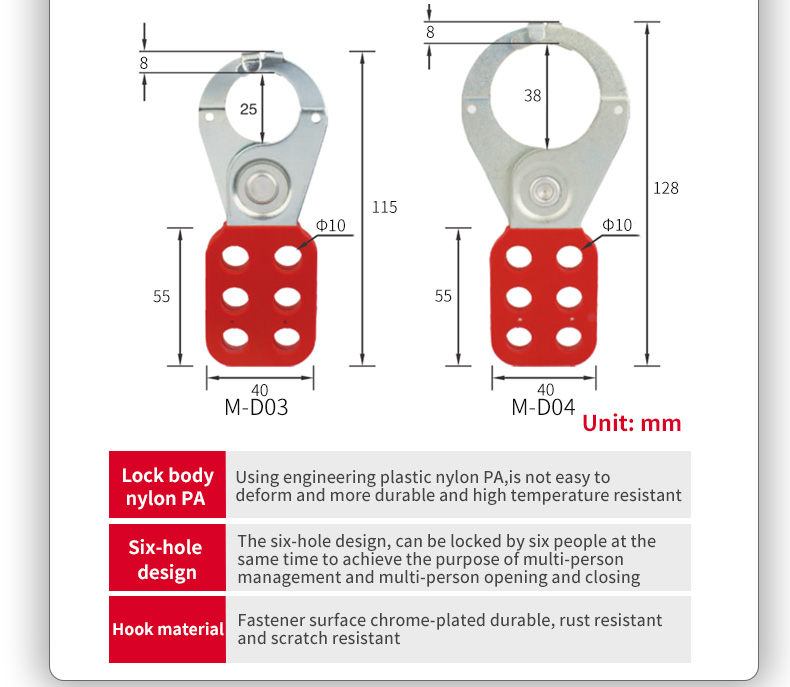

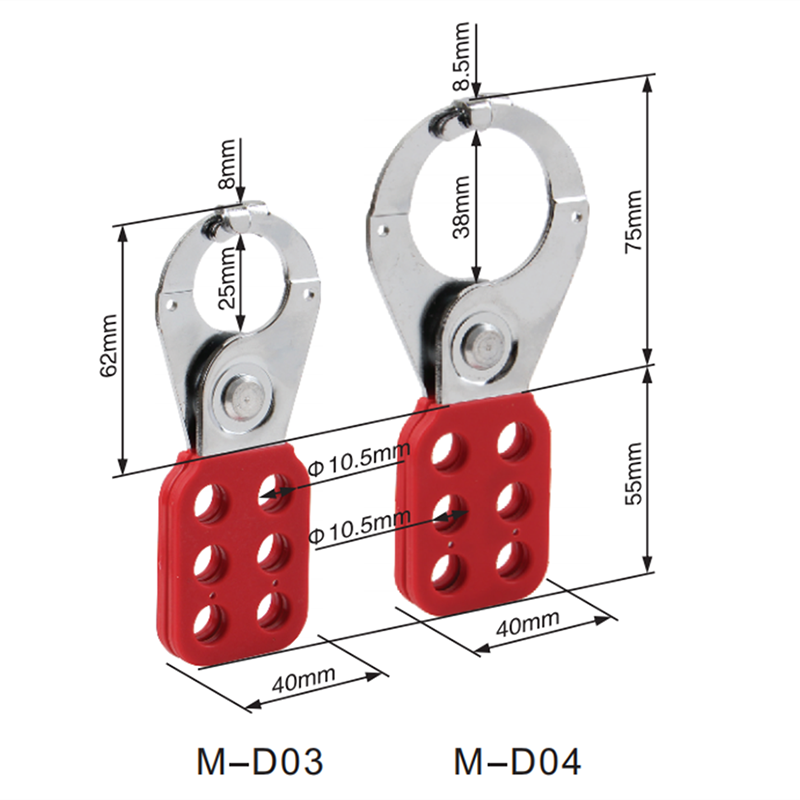

| M-D03 | 1"(25mm) | Nylon | steel |
nickle plated steel hook with a tab |
| M-D04 | 1.5"(38mm) | Nylon | steel |
nickle plated steel hook with a tab |
| M-D05 | 1"(25mm) | Steel | steel |
Red plastic vinyl antirust coated |
| M-D06 | 1.5"(38mm) | Steel | steel |
Red plastic vinyl antirust coated |
| M-D07 | 1"(25mm) | Steel | steel |
Red plastic vinyl antirust coated. Hook with a tab |
| M-D08 | 1.5"(38mm) | Steel | steel |
Red plastic vinyl antirust coated. Hook with a tab |
| M-D09 | 1"(25mm) | Nylon | aluminum |
aluminum hook |
| M-D10 | 1.5"(38mm) | Nylon | aluminum |
aluminum hook |
1. Handle material: Engineering plastic nylon material.the surface of the keyhole is smooth and delicate.
2. Humanity design: High quality steel material,made from durable steel,galvanized rust-proof surface.
3. Multi-function: Fixes the lock body,point control and combination design can rotate flexibly.
Lock body is made nylon PA, no deformation,no fading,high temperature corrosion resistance,temperature difference resistance (-57℃~ 177℃).
PA66 can also maintain strong strength and stiffness at higher temperature.PA66 is more widely used in automobile industry,instrument shell and other equipping your employees with the proper lockout tools and warning devices can save lives,reduce lost employee time,can cut insurance costs.

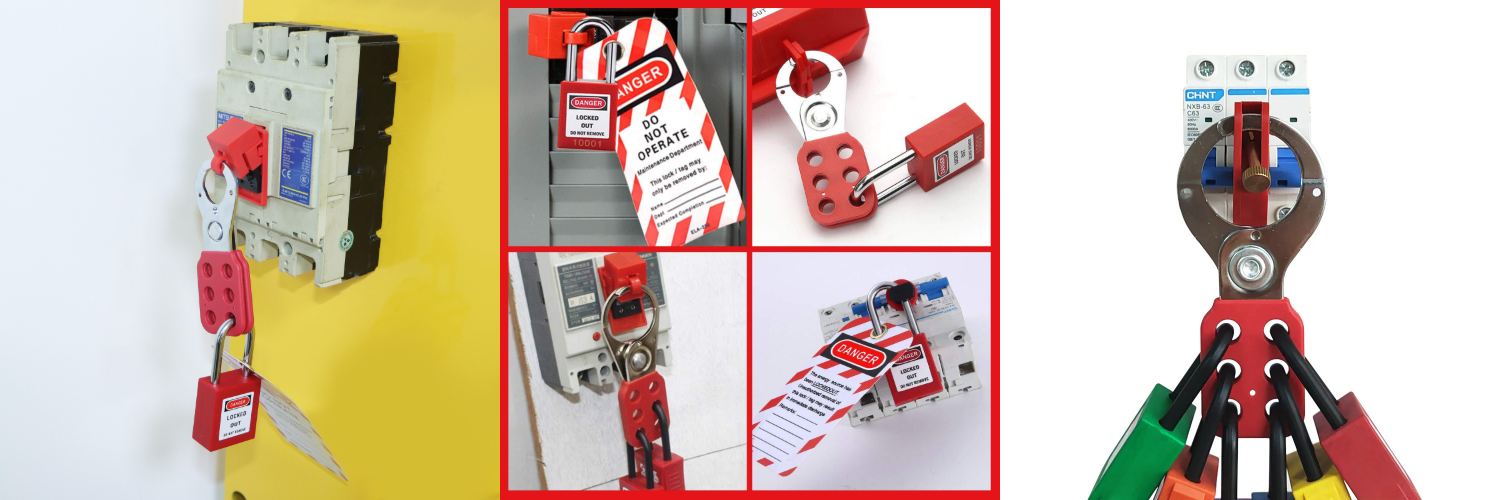

Key features
1. Lockout by multiple workers at each lockout point.
2. Attach device to energy disconnect switch.
3. Keeps equipment inoperative while repairs or adjustments are made.
4. Control cannot be turned on until last worker's padlock is removed from hasp.
5. Heavy duty pry proof steel jaw with vinyl coated handle.
