Product Description

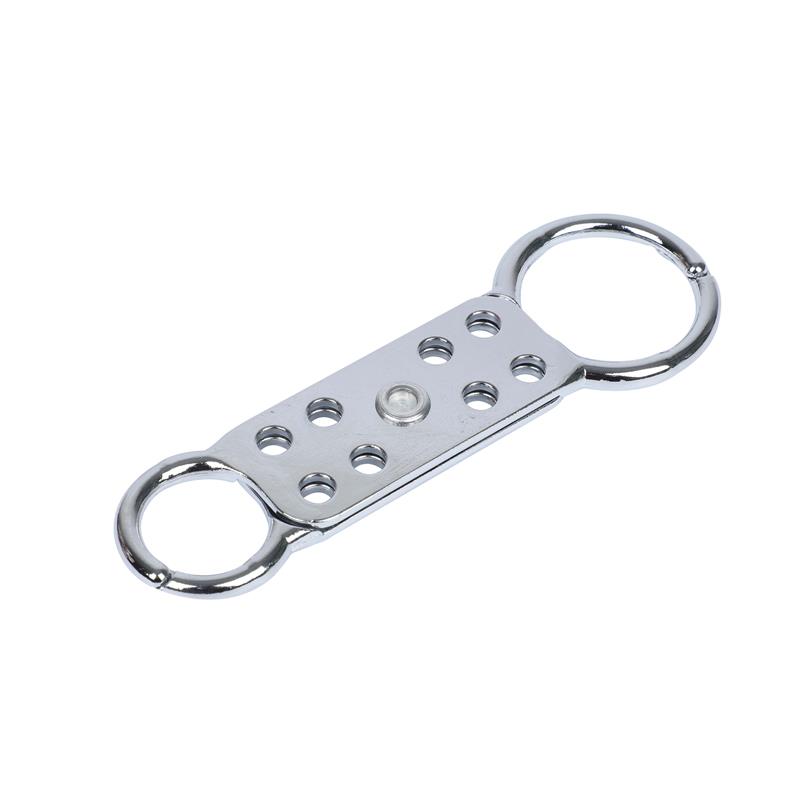

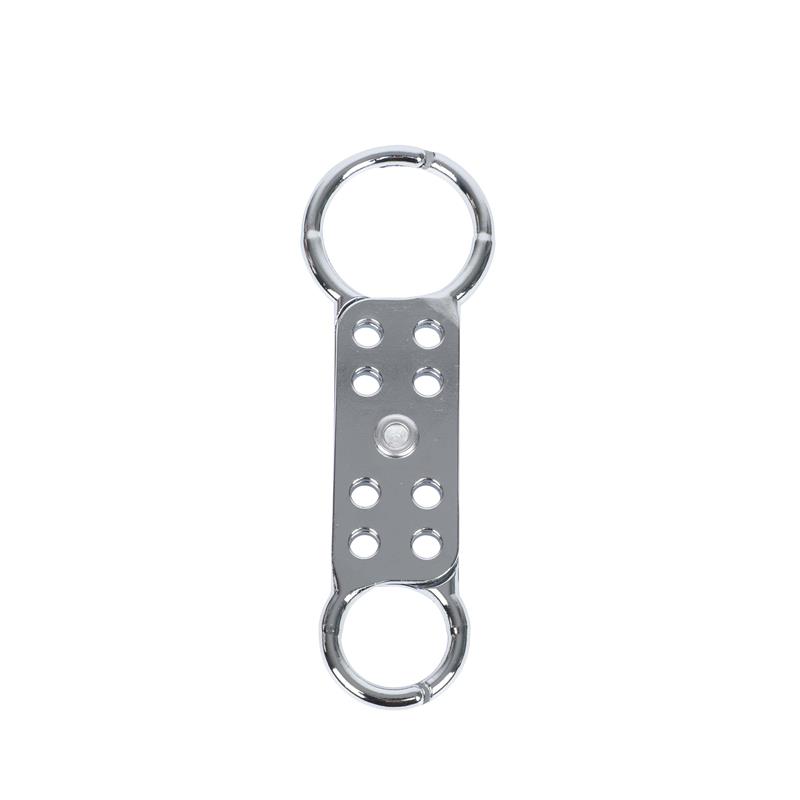

a) M-D17 made of aluminum with surface treatment, spark proof.

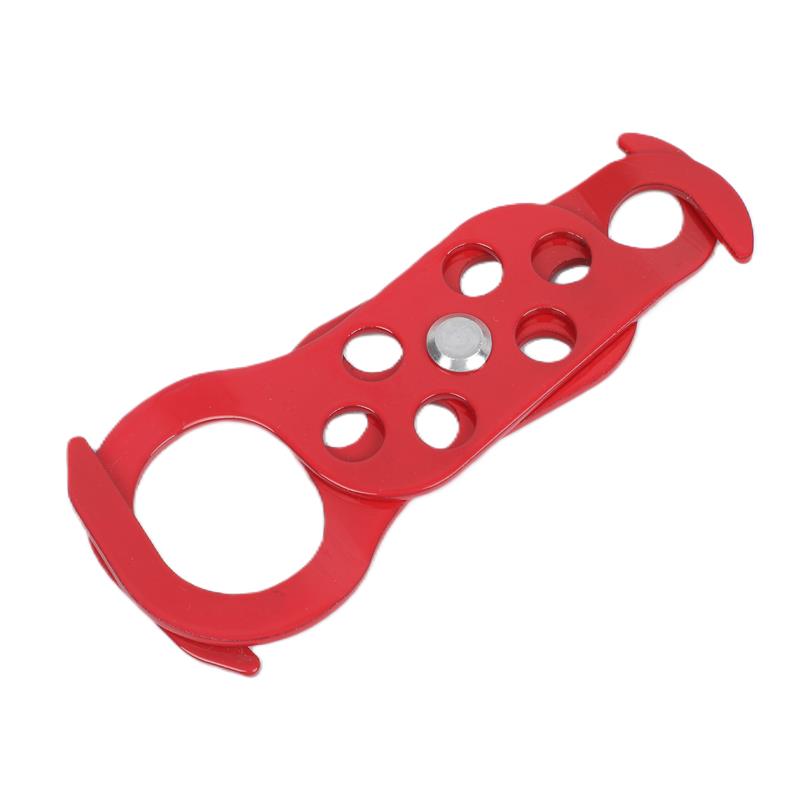

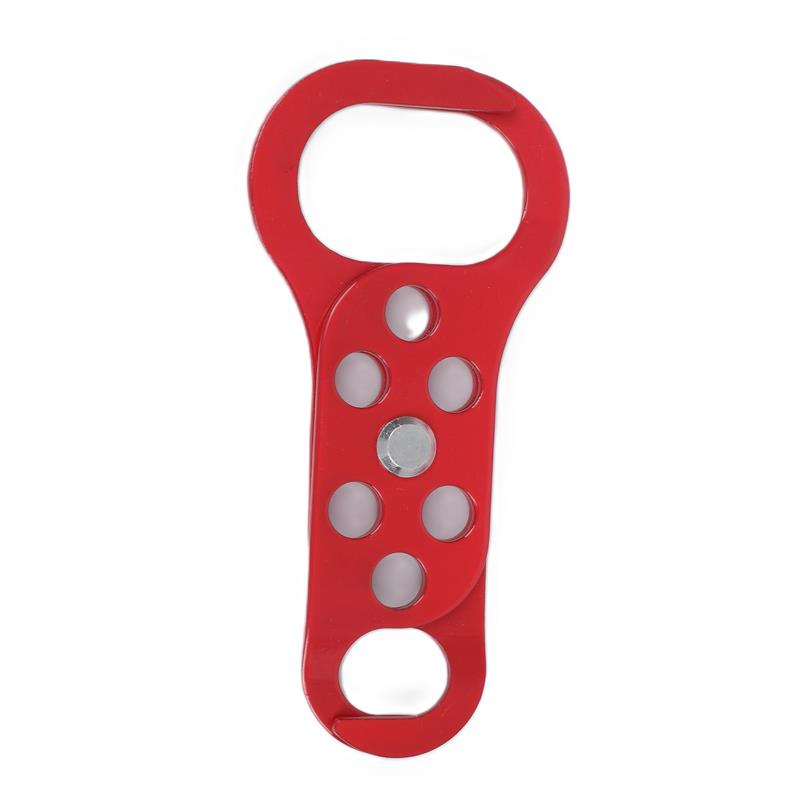

b) M-D19 made of steel with surface high temperature plastic spraying anti-rust treatment.

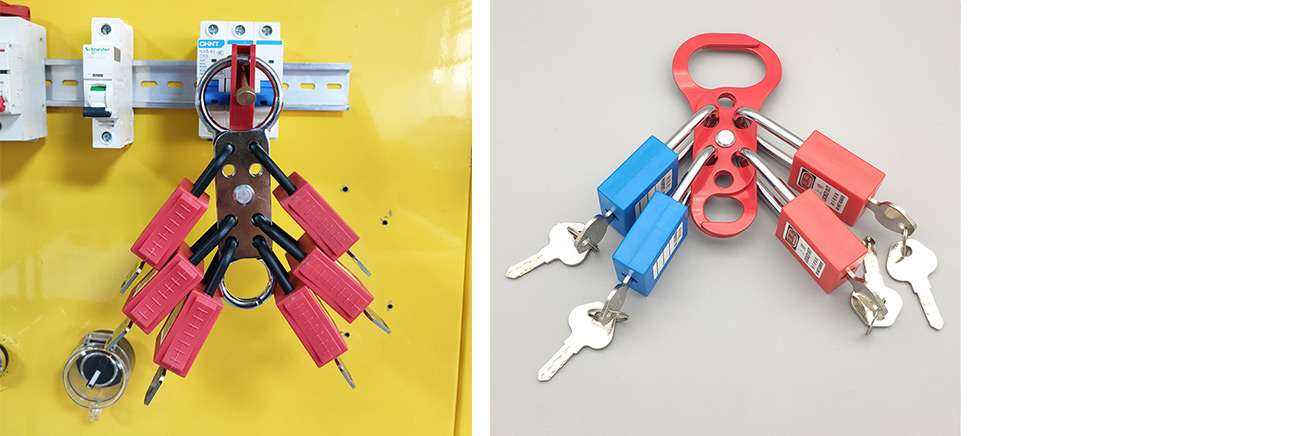

c) Porous holes design, allowing multiple workers to lock it to the same locking point.
d) Allow multiple padlocks to be used at one energy source.
e) Inoperable during maintenance or adjustment, the equipment cannot be opened until the padlock of the last worker is removed from the clasp.

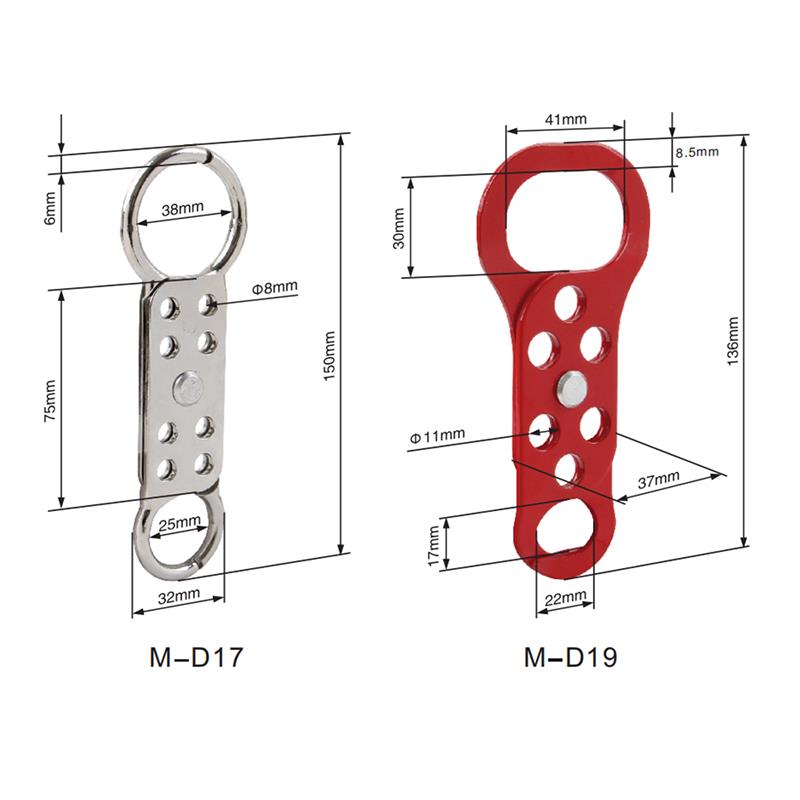

HASP Lockout M-D17 /19 specification
Model | Jaw Size | Holes | Hole dia | Material |
M-D17 | 1"(25mm) and 1.5"(38mm) | 8 holes | 8 mm | fireproof aluminum |
M-D19 | 1"(25mm) and 1.5"(38mm) | 6 holes | 11mm | steel with antiru |
Place of Origin |
Zhejiang,China |
Brand Name |
QVAND |
Model Number |
M-D17/19 |
Material |
Steel/Aluminum |
Color |
Red/Silver |
Jaw Size |
25mm and 38mm |
Lock Hole Size |
8/11mm |
Service |
OEM Support |
