QVAND Valve Lockout

Valve lock is the core equipment in the industrial safety lock out/Tagout (LOTO) system, designed specifically for isolating energy sources such as gases, liquids, steam, etc. It physically locks the valve operating mechanism to prevent equipment from being accidentally opened during maintenance, repair, or emergency situations, ensuring the safety of operators and complying with international safety standards such as OSHA.

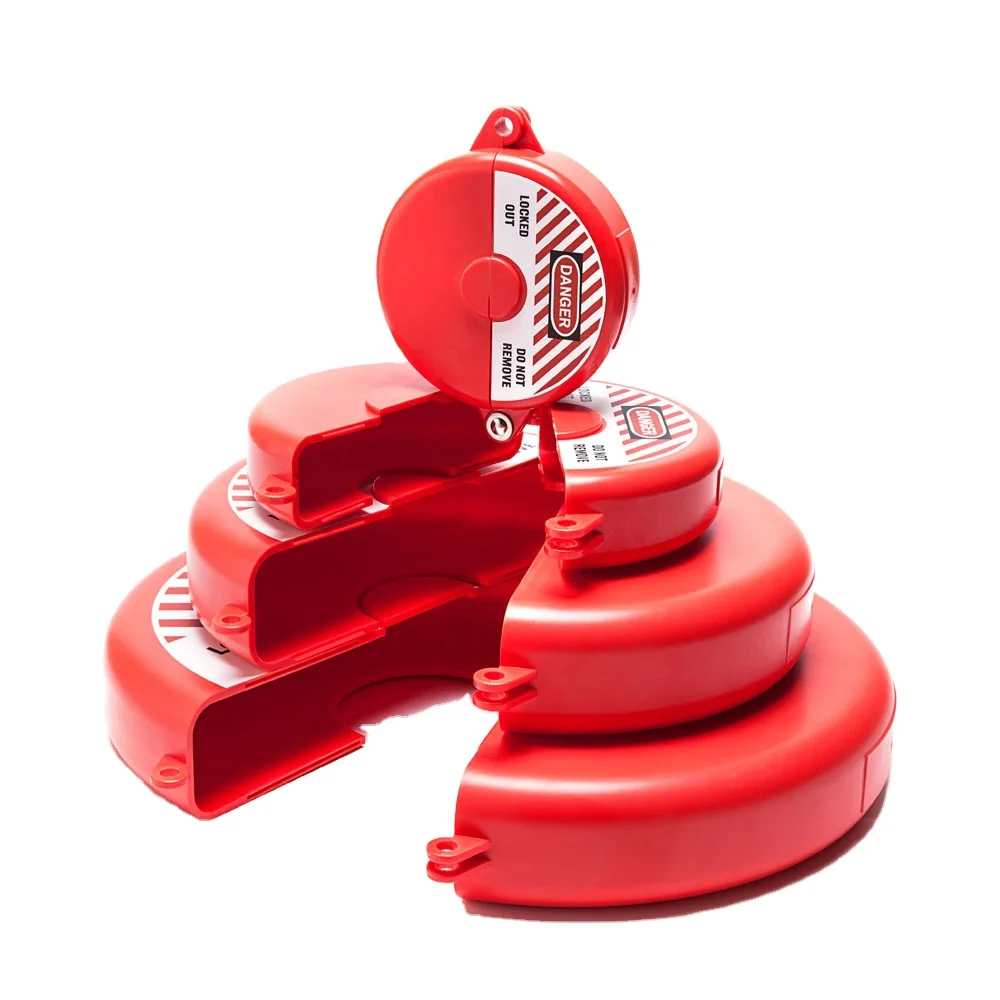

Standard gate valve lock Product Structure and Materials

main structure

Lock body: Made of high-strength engineering plastics (ABS/nylon), corrosion-resistant and impact resistant, suitable for extreme environments ranging from -40 ℃ to 120 ℃.

Locking structure: Adjustable ratchet or buckle ring design, suitable for valve handwheels of different sizes (common diameter 25mm-635mm).

Label hanging hole: integrated warning label slot, clearly indicating the locking personnel, time, and reason.

Accessories: Comes standard with multi size safety locks (can be paired with padlocks or password locks), buckle locks, warning labels, and portable storage bags.

Other types of valve locks

Ball valve lock: Suitable for ball valves with handles, locked by wrapping the handle.

Gate valve lock: designed for gate valve handwheel, covering rotating parts.

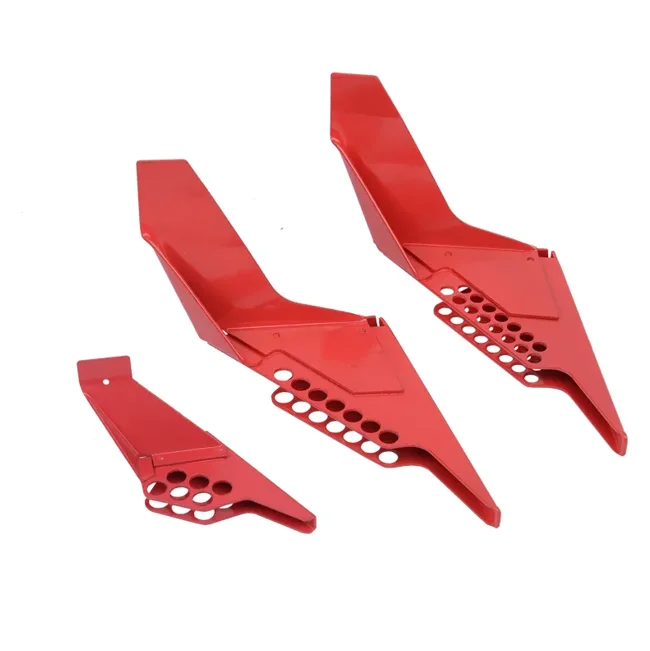

Butterfly valve lock: specifically designed for lever type operating mechanisms of butterfly valves.

Universal valve lock: adjustable structure, compatible with various non-standard valves.

Core functions and advantages

Multiple security protections

Physically block the valve operation path to prevent accidental activation.

Special keys or tools are required to unlock and prevent unauthorized operations.

High compatibility and flexibility

Adjustable locking strap/buckle, suitable for valves of different specifications.

Modular design, compatible with other LOTO devices such as electrical locks and circuit breaker locks.

Visual security management

Customized eye-catching red, yellow, and other colors can be used according to usage needs to enhance the warning of hazardous areas.

Matching tags record locking information to achieve secure operation traceability.

Industrial material, resistant to oil stains, chemicals, and UV aging.

Typical application scenarios

Energy industry: maintenance of oil pipelines and natural gas transmission valves.

Manufacturing industry: maintenance of feed valves for chemical reactors and steam valves for boilers.

Public facilities: water treatment plant pump valve system, fire pipeline isolation.

Laboratory: Pre - and post experiment locking of high-risk gas pipelines.

Operation steps (example)

Identify energy sources: Confirm the type and location of valves that need to be isolated.

Close the valve: Fully close the valve according to the regulations.

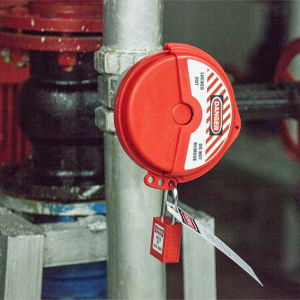

Install lock: Secure the valve lock to the handwheel/handle, ensuring no looseness.

Lock and Tag: Insert a padlock and hang a warning label to record the operation information.

Verify isolation: Test whether the valve cannot operate and confirm successful energy isolation.

Why choose our valve lock?

We are a professional safety lock manufacturing factory

Customized service: providing non-standard valve measurement and exclusive design solutions

Global Compliance: Meets EU CE and US OSHA regulations

Quick response: 48 hour technical support,one-year warranty commitment

If you need a product catalog or customized consultation, please contact us!

Phone: 86 18968875011

Email: global-sales@qvand.com
