Product Description
a) Made from hardened powder coated steel, durable and resist rust.

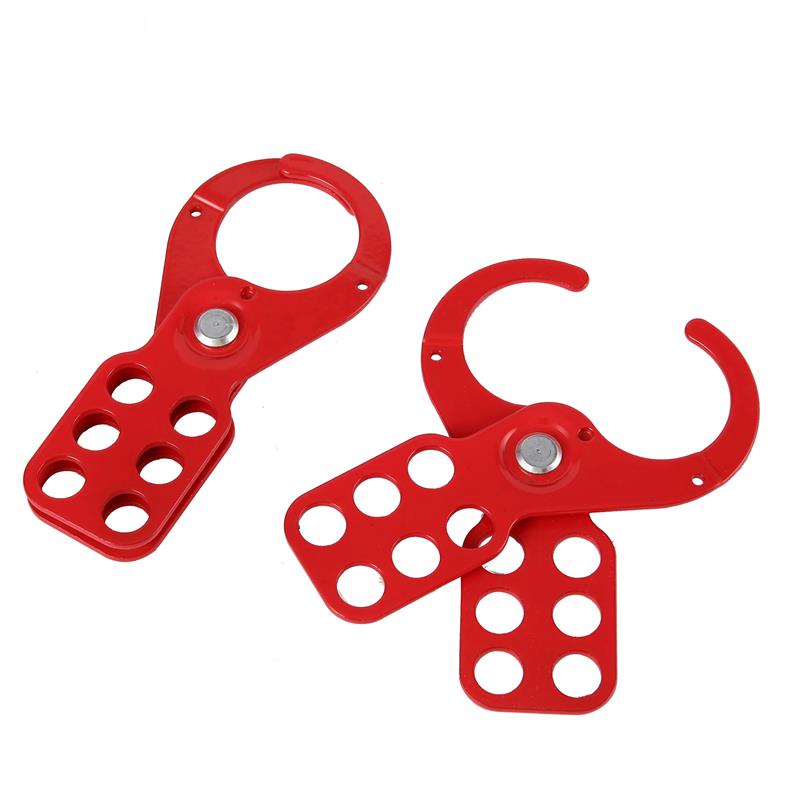

b) It has a double locking arrangement.Hooks on jaws prevent them to be pulled apart.
c) Lock holes: 12mm diameter.
d) Jaw size: 1’’(25mm) & 1.5″ (38mm).
e) Allow multiple padlocks to be used when isolating one energy source.
f) Colors of handle can be customized.
HASP Lockout M-D01 to 10 specification
Model | Jaw Size(mm) | Handle Material | Hook Material | Description |
M-D01 | 1"(25mm) | Nylon | steel | nickle plated steel hook |
M-D02 | 1.5"(38mm) | Nylon | steel | nickle plated steel hook |
M-D03 | 1"(25mm) | Nylon | steel | nickle plated steel hook with a tab |
M-D04 | 1.5"(38mm) | Nylon | steel | nickle plated steel hook with a tab |

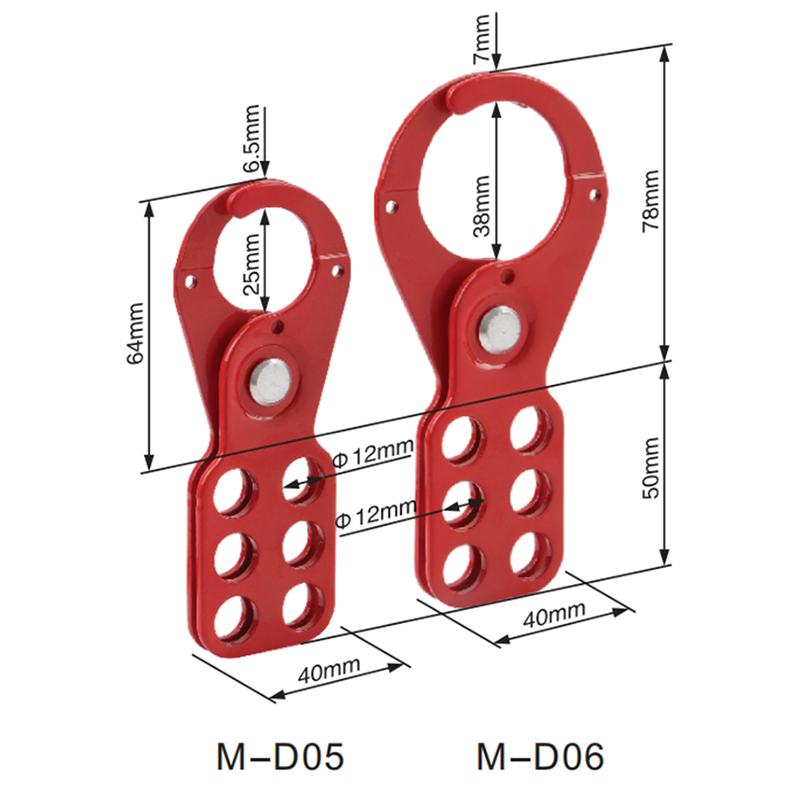

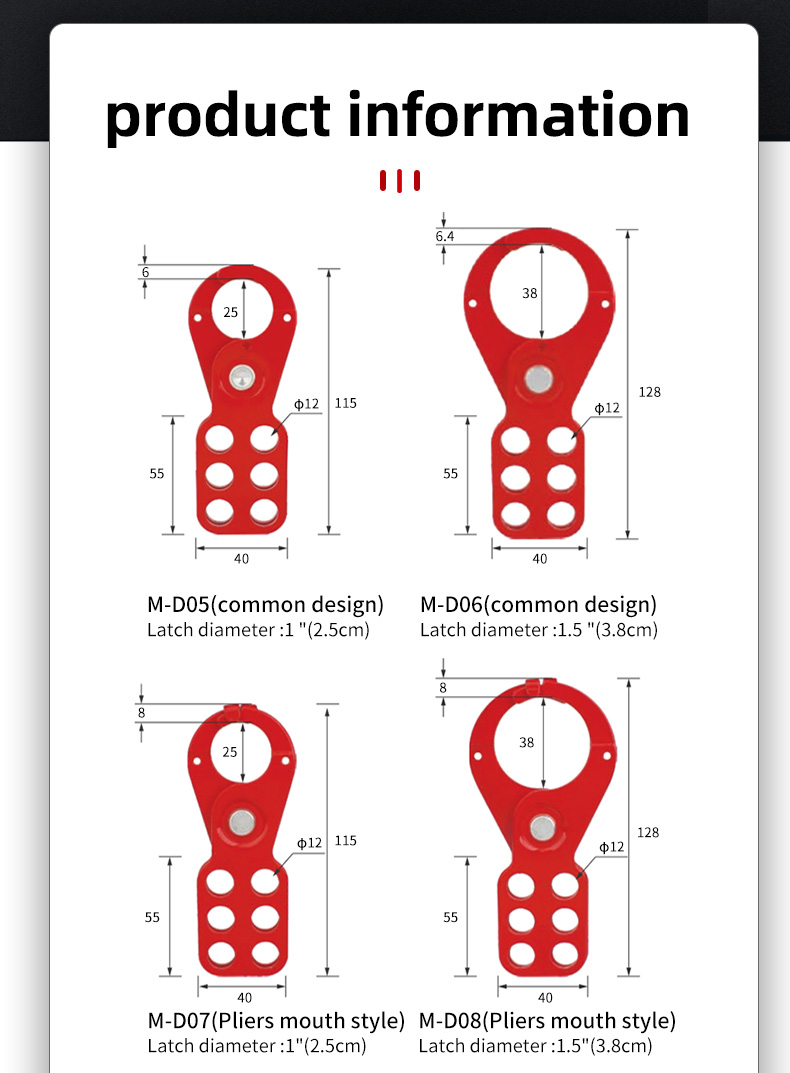

M-D05 | 1"(25mm) | Steel | steel | Red plastic vinyl antirust coated |
M-D06 | 1.5"(38mm) | Steel | steel | Red plastic vinyl antirust coated |

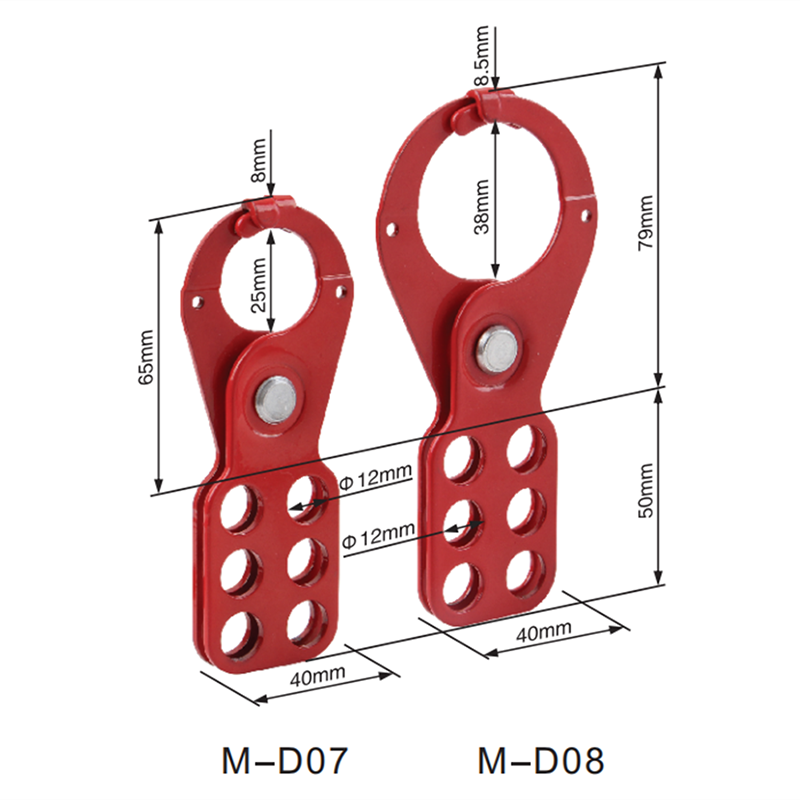

M-D07 | 1"(25mm) | Steel | steel | Red plastic vinyl antirust coated. Hook with a tab |
M-D08 | 1.5"(38mm) | Steel | steel | Red plastic vinyl antirust coated. Hook with a tab |
M-D09 | 1"(25mm) | Nylon | Aluminum | aluminum hook |
M-D10 | 1.5"(38mm) | Nylon | Aluminum | aluminum hook |

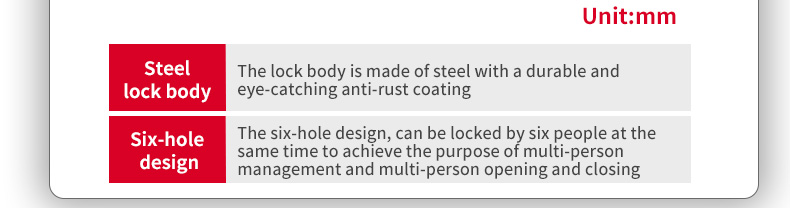

Multiple people management: The 6-hole design allows multiple workers to lock it at the same locking point.The safety hasp prevents the equipment from operating during maintenance or adjustment.Achieve the gold of multiple people managing the same energy source.
Install and use: The safety hasp recommended to be used in conjunction with safety padlocks and safety tags to achieve the purpose of energy isolation,equipment lockout,and avoid to miss operation.

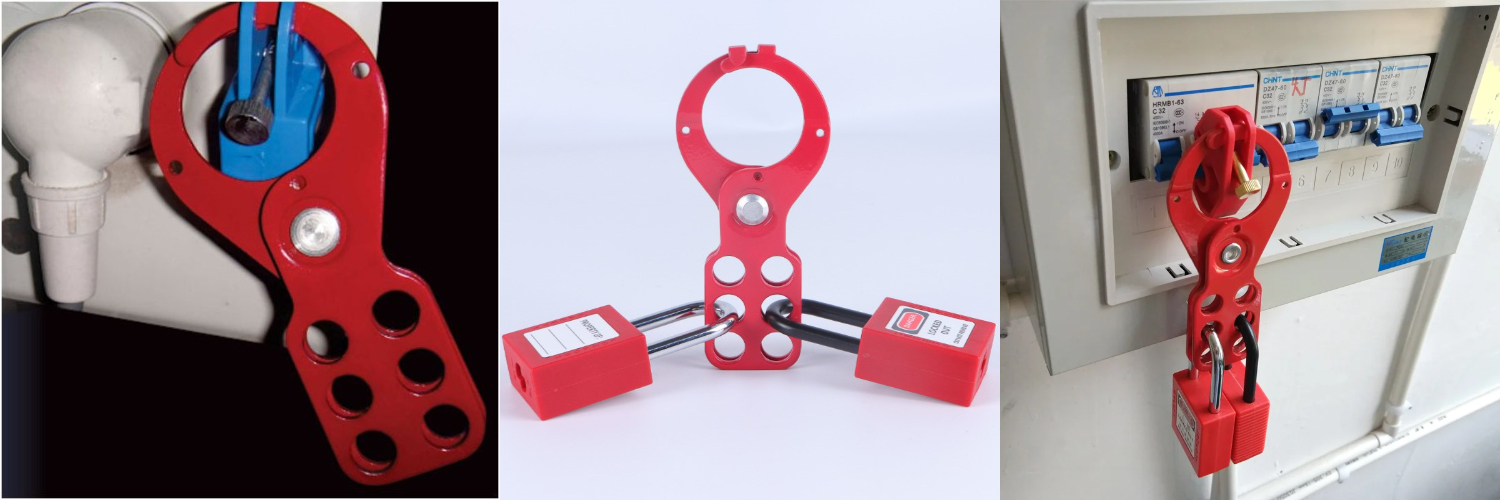

Scope of use: When you want to use multiple padlocks to isolate an energy source,you can use a safety hasp,pass the hasp through the isolation point and close it,allowing each authorized person to place their own padlock on it.
Hasps allow multiple padlocks to secure a single lockout device.
Equipping your employees with the proper lockout tools and warning devices can save lives,reduce lost employee time and cut insurance costs.

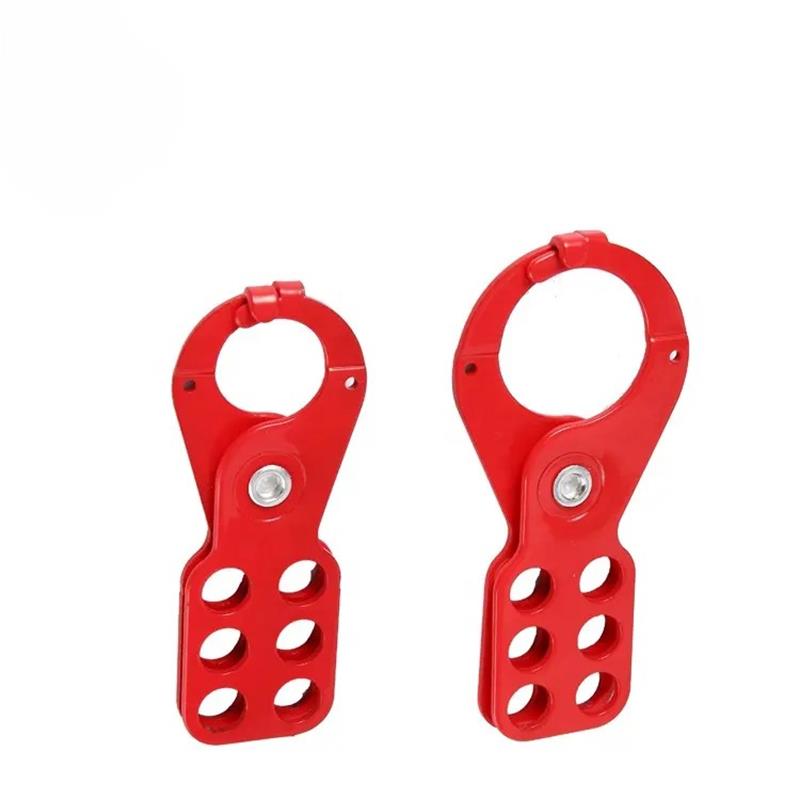

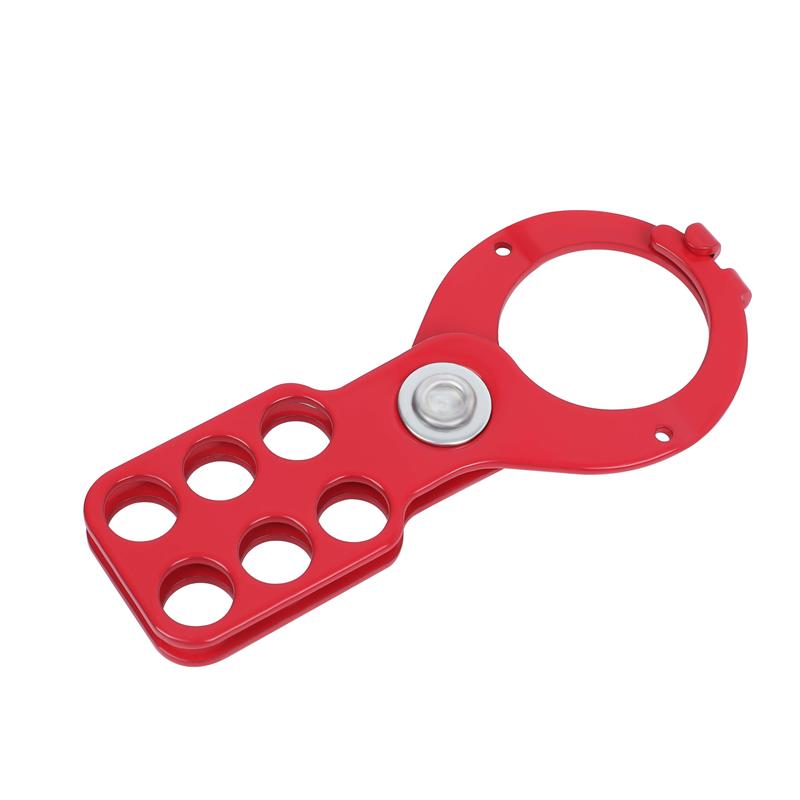

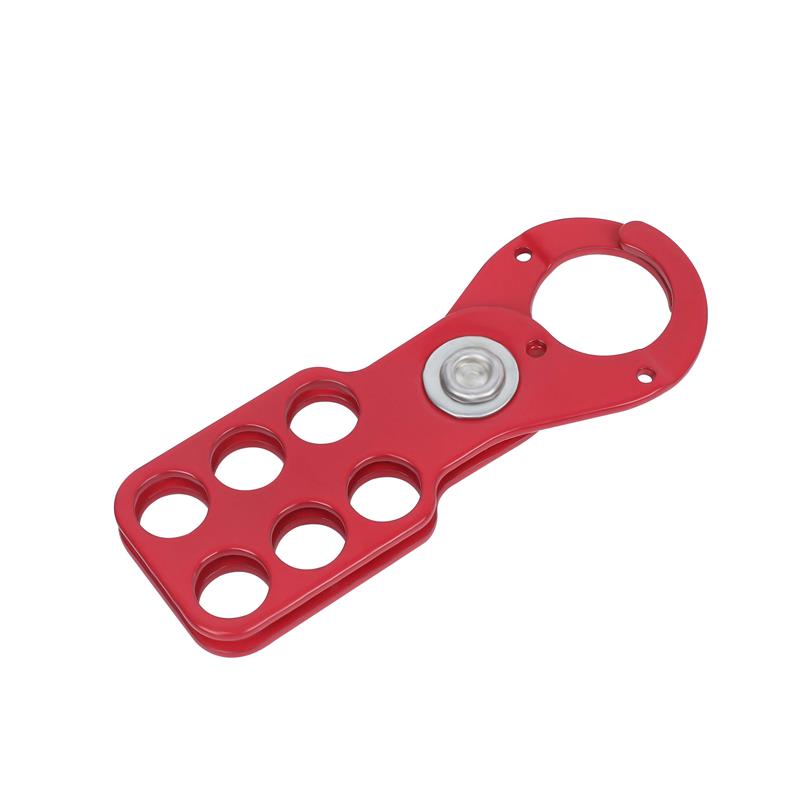

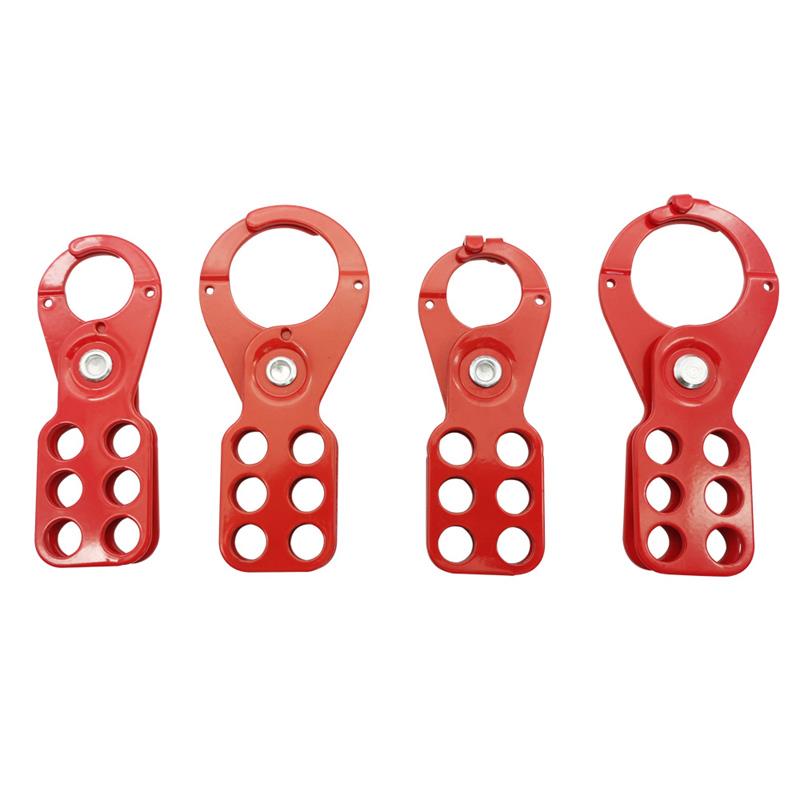

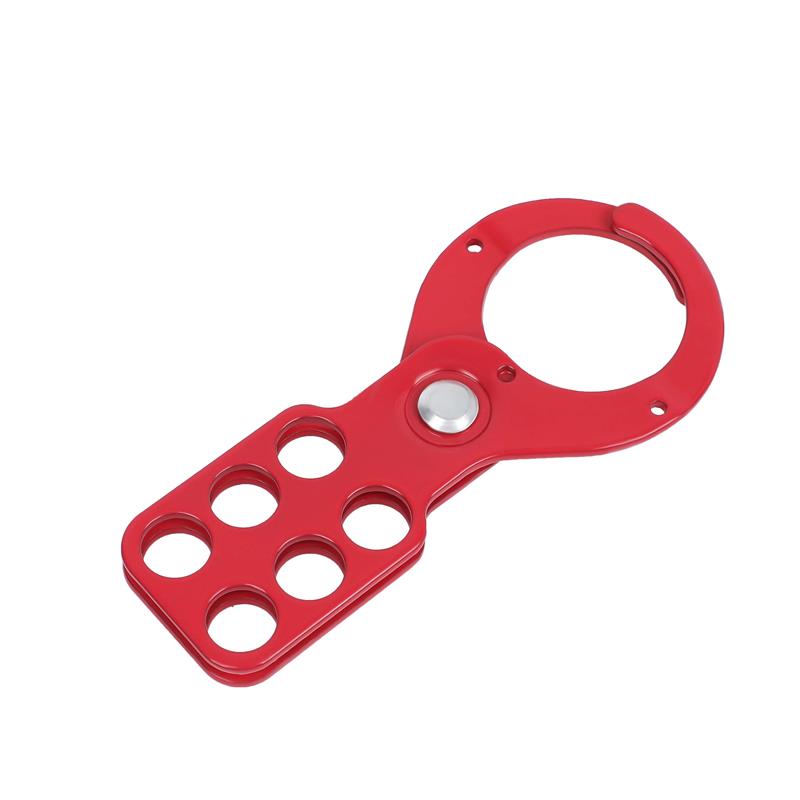

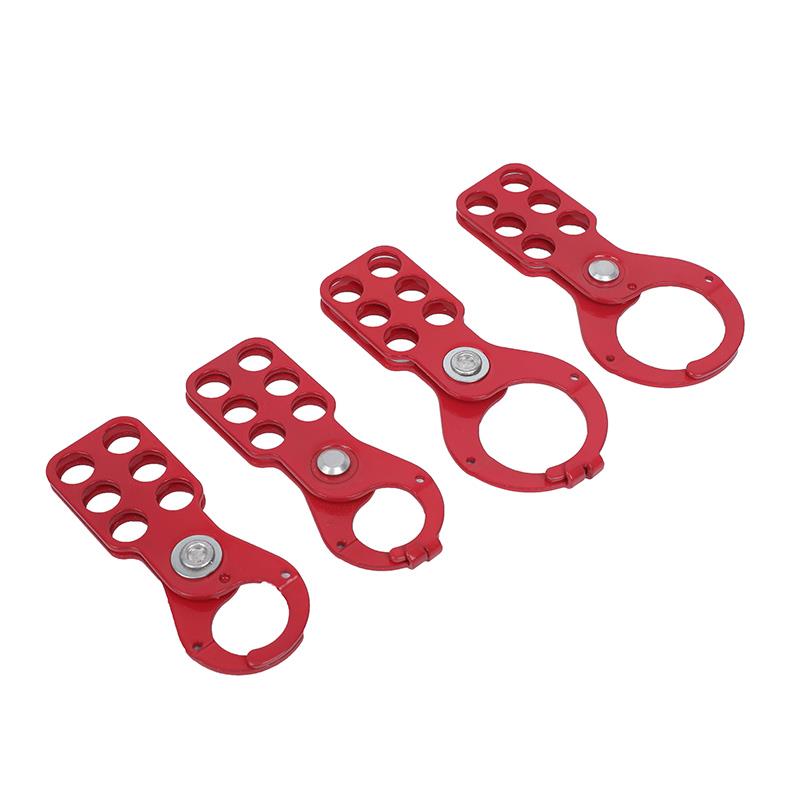

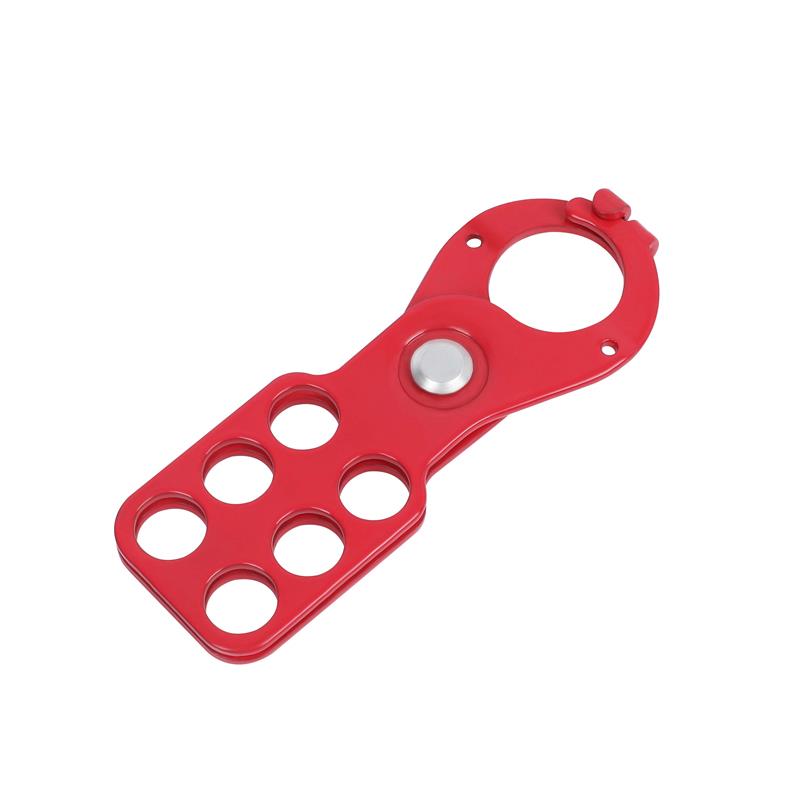

Steel lockout hasp-Cohere screw design,made from steel material,high temperature spray plastics and rust treatment.
Padlock clasp,allow multiple padlocks to secure a single lockout device.
Place of Origin |
Zhejiang,China |
Brand Name |
QVAND |
Model Number |
M-D05/06/07/08 |
Material |
Steel with anti-rust coating |
Color |
Red |
Jaw Size |
25mm/38mm |
Lock Hole Size |
10.5mm |
Service |
OEM Support |
